Husqvarna CT12T38E (1999) Tractor

Model: CT12T38E (1999)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

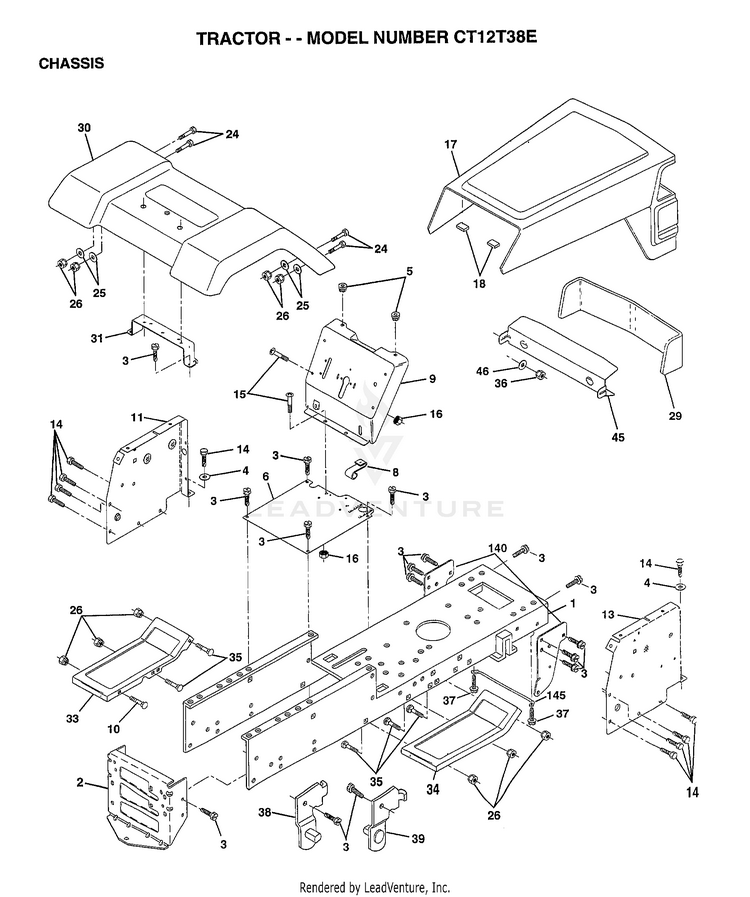

CHASSIS

...
...
1
CHASSIS.STAMPING PLN-165480
...
2
SUB= 145009 PLN-140356
...
3
SCREW PLN-17490612
...
4
WASHER PLN-19131216
...
5
BUMPER-HOOD/DASH PLN-155272
...
6
"SADDLE FLAT,SLKSC" PLN-155924X010
...
8
CLIP.RETAINER PLN-155138
...
9
DASH.SLKSCR PLN-166318X010
...
10
SUB= 72110608 PLN-72140608
...
11
"PANEL-DASH,LH" PLN-155927
...
13
SUB= 169117X010 PLN-155934X010
...
14
SCREW LT PLN-17490608
...
15
SCREW PLN-74180512
...
16
NUT PLN-73510500
...
17
HOOD/GRILL ASM PLN-133956X505
...
18
SUB= 532126938 PLN-126938X
...
24
BOLT PLN-74780616
...
25
WASHER PLN-19131312
...
26
NUT PLN-73800600
...
29
LENS SERVICE KIT PLN-133954
...
30
FENDER PLN-166884X505
...
31
BRKT FENDER PLN-136619
...
33
FOOTREST LH PLN-105476X505
...
34
FOOTREST RH PLN-105475X505
...
35
BOLT PLN-72110606
...
36
PAL NUT LT PLN-108067X
...
37
SCREW LT PLN-17490508
...
38
BRACKET ASM LH PLN-139886
...
39
BRACKET ASM RH PLN-139887
...
45
BEZEL.LIGHT.SLVR PLN-132257X417
...
46
RETAINER PLN-127316X
...
140
BRKT SUSPENSION PLN-158418
...
145
"ROD POVOT,CHASSIS" PLN-156524
...
xx
PLUG BUTTON T PLN-5479J
...
...
...
