Husqvarna CT126 - 96051001302 (2012-08) Tractors/Ride Mower

Model: CT126 - 96051001302 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

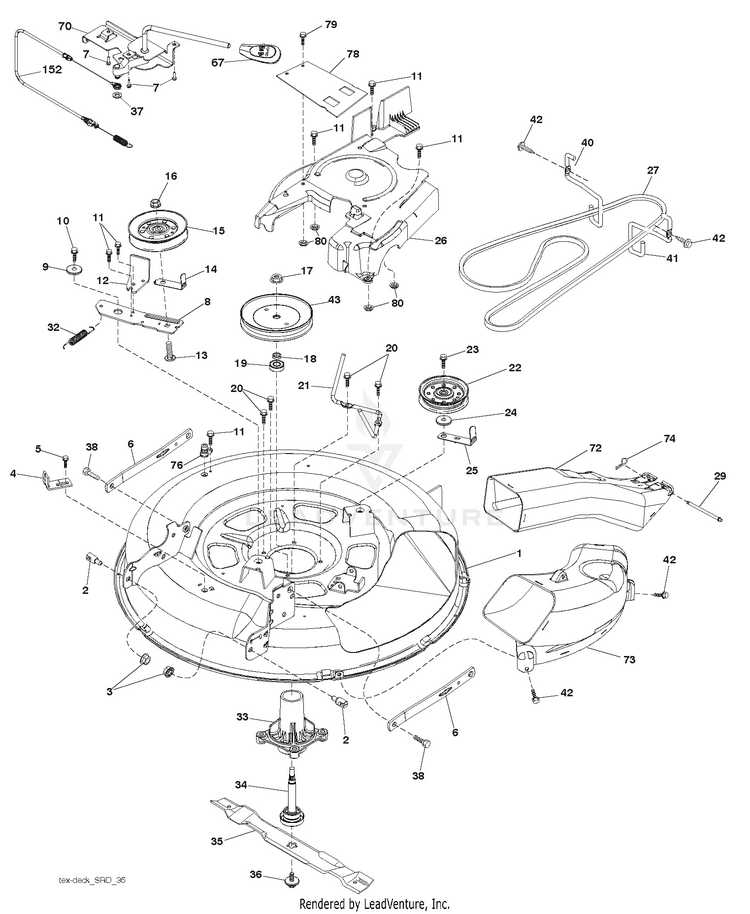

MOWER DECK / CUTTING DECK

...
...
1
DECK.SVC.WELDMNT.30"419272X418 HUS-532434487
...
22
Pulleys HUS-596481401
...
3
GSPW Nuts HUS-596135701
...
35
BLADE.MOWER.BAGGING.30" HUS-532419274
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
20
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
33
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
74
RETAINER-SPRNG RB HUS-532124670
...
79
Screws HUS-596134101
...
38
BOLT.SHOULDER HUS-532196539
...
70
CLUTCH.ASM.MANUAL.LT.PRED HUS-532401246
...
72
CHUTE.UPPER.SRD.30R" HUS-583364501
...
2
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
29
Rods HUS-593885101
...
15
PULLEYS HUS-593787801
...
13
GSPW Bolts HUS-596136101
...
17
Nuts HUS-596134801
...
34
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
24
GSPH HUS-596134901
...
8
ARM.IDLER.30"SRD HUS-583379801
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
41
KEEPER.BELT.ENGINE.RH.LT.SRD HUS-532419265
...
21
KEEPER.BELT.MANDREL.30" HUS-532416910
...
27
V-BELT.DRIVE.MOWER.30" HUS-532419271
...
32
SPRING RETURN HUS-532401872
...
12
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
78
GUARD.DECK.SRD.ARM.CLUTCH HUS-583394901
...
14
Keepers HUS-597024901
...
43
PULLEY.MANDREL 6.5" PULLEY HUS-525568002
...
25
KEEPER, BELT, BLACK HUS-529311701
...
4
BRACKET.CLUTCH.CABLE HUS-532417645
...
- -
KIT.MANDREL.NONGREASE.TALL Mandrel Assembly (Includes Housing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HUS-587819701
...
23
BOLT HUS-599972501
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
19
BEARING HUS-532110485
...
40
KEEPER.BELT.ENGINE.LH.LT.SRD HUS-532419270
...
152
CABLE.CLUTCH.MANUAL. HUS-532435111
...
76
PORT.WASHOUT HUS-532415598
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
9
SPACER.RETAINER HUS-532199092
...
7
Screws HUS-596321701
...
80
PALNUT 1/4 HUS-532423062
...
42
SCREW, 3/8-16X3/4 HUS-817000612
...
6
ARMS.SUSP.MOWER.REAR.SRD HUS-532418863
...
73
CHUTE.LOWER.SRD.30R" HUS-532425274
...
10
SCREW 3/8-16X1 HUS-817000616
...
- -
DECK.ASM.SVCX.30R"BAG.CC.WP.FR HUS-583553001
...
26
COVER.ASM.MANDREL.30" HUS-583481101
