Husqvarna CT12542H (1996) Tractor

Model: CT12542H (1996)

Back To Assemblies

Save Part Not Listed?
product name

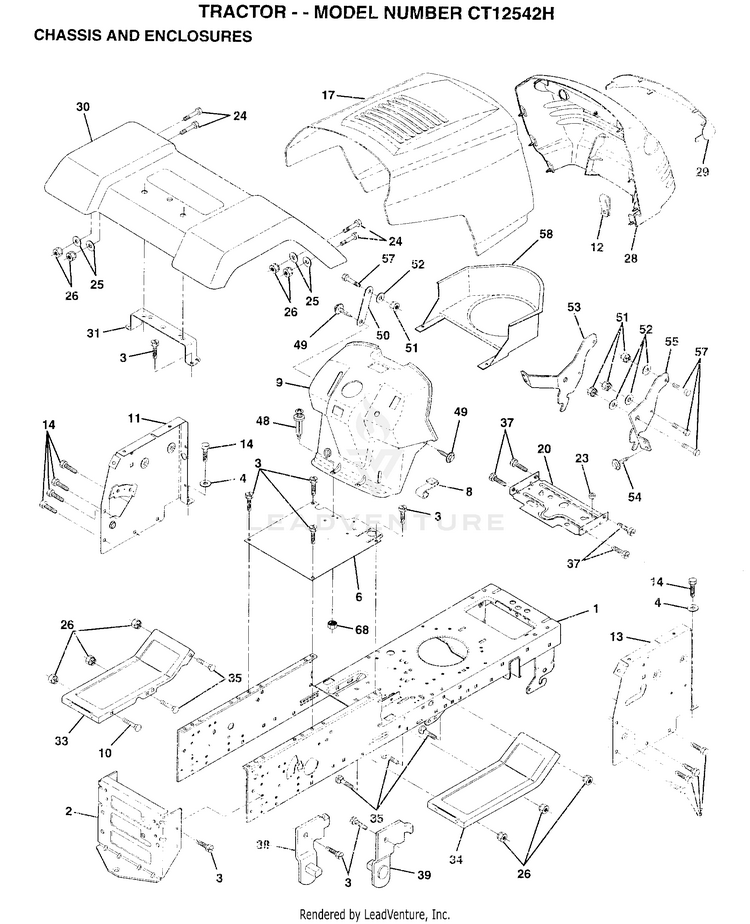

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
6
SUB= 155924X015 HUS-145208X016
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 532142465 HUS-140072
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH. HUS-146965
...
12
CLIP.TINNERMAN HUS-145660
...
13
PANEL.DASH.RH HUS-146959
...
14
SCREW LT HUS-17490608
...
17
SUB= 159639X550 HUS-139394X550
...
20
PLATE.MTG.BTRY.TK HUS-145210
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
SUB= 157373 HUS-140141
...
29
LENS GRILLE HUS-140273
...
30
FENDER.PNT. HUS-109872X550
...
31
BRKT FENDER HUS-136619
...
33
FOOTREST.LH.PERF. HUS-105476X550
...
34
FOOTREST.RH.PERF. HUS-105475X550
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
48
RIVET.PUSH.PLATE HUS-138096
...
49
SCREW HEX CRT HUS-17490412
...
50
BRACE SUPT DASH HUS-142779
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
68
NUT HUS-73510400
...
xx
PLUG BUTTON T HUS-5479J
...
xx
PLUG DOME HUS-134014
