Husqvarna CT1236E (1992) Tractor

Model: CT1236E (1992)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
COVER, TRANSAXLE HUS-772108
...
2
BEARING, NEEDLE HUS-780086
...
3
CASE, TRANSAXLE HUS-770102
...
4
SHAFT, COUNTER HUS-776260
...
5
SHAFT, PINION ASSEMBLY, OUTPUT HUS-776219
...
6
GEAR, OUTPUT HUS-778139
...
7
GEAR, SPUR, 15 TEETH HUS-778136
...
8
KEY HUS-792136
...
9
COLLAR, SHIFTER HUS-784352
...
10
ROD & FORK ASSY, SHIFT HUS-784355
...
11
GEAR, BEVEL, 42 TEETH HUS-778229
...
12
BEVEL PINION, INPUT HUS-778113A
...
13
GEAR, BEVEL HUS-778221
...
14
GEAR, BEVEL, PINION HUS-778068
...
15
GEAR, RING HUS-778260
...
17
PIN, DRIVE HUS-786139
...
18
SPACER, NEUTRAL HUS-786102
...
20
BALL STEEL, 5/16" DIA. HUS-792077
...
21
SCREW, 3/8-16 X 3/8" HUS-792078
...
22
SPRING HUS-792079
...
23
RING, SEAL HUS-788061
...
25
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
26
RING RETAINER HUS-792125
...
27
RING, RETAINER HUS-792035
...
28
RETAINING RING HUS-788040
...
29
WASHER THRUST HUS-780072
...
30
WASHER THRUST HUS-780108
...
31
WASHER HUS-780001
...
32
"O" RING HUS-792001
...
33
SEAL, SQUARE CUT HUS-788051
...
34
BUSHING, FLANGED HUS-780105A
...
35
BUSHING, FLANGED HUS-780118A
...
36
DISK, BRAKE HUS-790003
...
37
PLATE BRAKE PAD HUS-790007
...
38
PAD BRAKE HUS-790006
...
39
PIN DOWEL HUS-786026
...
40
WASHER, FLAT HUS-792076
...
40A
WASHER FLAT HUS-792128
...
41
LEVER BRAKE HUS-790047
...
42
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
43
LOCKNUT 5/16-24 HUS-792075
...
44
HOLDER BRAKE PAD HUS-790025
...
45
SHAFT, BRAKE, 4 KEYED HUS-776315A
...
46
SHAFT, INPUT HUS-776135
...
47
AXLE HUS-774883
...
48
AXLE HUS-774884
...
49
GEAR, SPUR, 37 TEETH HUS-778191
...
50
GEAR, SPUR, 35 TEETH HUS-778125
...
51
GEAR, SPUR, 30 TEETH HUS-778124A
...
52
GEAR, SPUR, 25 TEETH HUS-778123A
...
53
GEAR, SPUR, 22 TEETH HUS-778122A
...
53A
GEAR, SPUR, 19 TEETH HUS-778209
...
54
GEAR, SPUR, 12 TEETH HUS-778230
...
55
GEAR, SPUR, 15 TEETH HUS-778151
...
56
GEAR, SPUR, 20 TEETH HUS-778126A
...
57
GEAR, SPUR, 25 TEETH HUS-778127A
...
58
GEAR, SPUR, 28 TEETH HUS-778128A
...
59
GEAR, SPUR, 31 TEETH HUS-778163
...
60
CHAIN, ROLLER HUS-786081
...
61
SPROCKET 9T HUS-786082
...
62
SPROCKET 18T (REV) HUS-786123
...
64
PLUG, THRDED, 9/16-18 HUS-792074
...
65
WASHER, THRUST HUS-780109
...
66
SPACER HUS-786067
...
67
SCREW FLNG HEX 1/4-20 X 2-1/4 HUS-792085
...
68
BRKT BRAKE LEVER HUS-786086
...
69
WASHER THRUST HUS-780051
...
70
SPACER HUS-786118
...
71
SEAL SQUARE CUT HUS-788069
...
75
DISK HUS-786116
...
76
WASHER, THRUST HUS-780090
...
77
RING, RETAINING HUS-788075
...
90
GREASE BENTONITE, 32 OZ. HUS-788067B

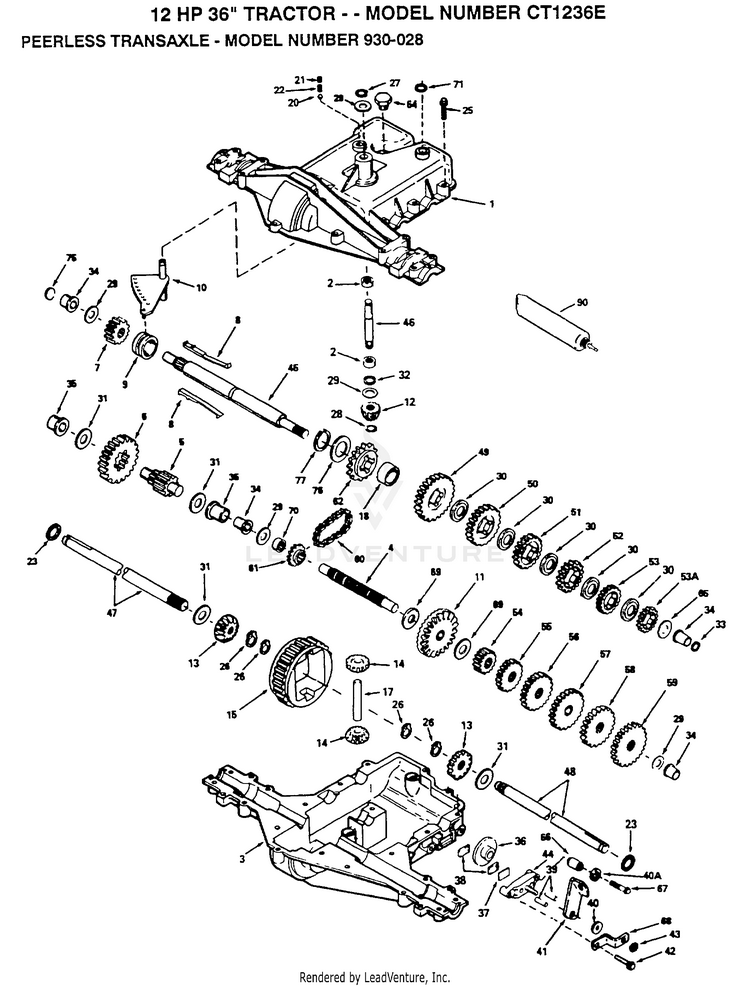

Schematic Image Zoomed
