Husqvarna CT1236B (1991) Tractor

Model: CT1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

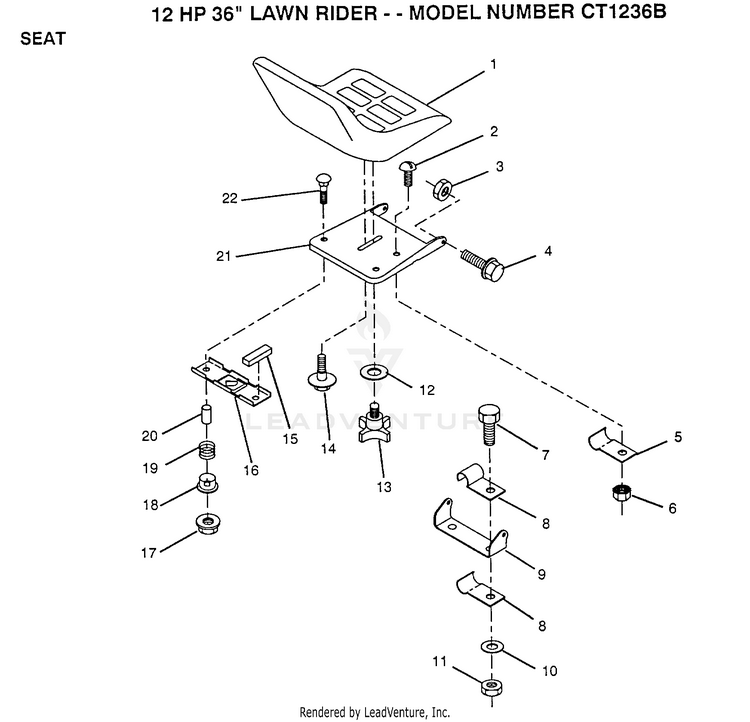

SEAT

...
...
1
SUB= 140119 HUS-127423X
...
2
SUB= 71031008 HUS-74641008
...
3
SUB= 73690500 HUS-73680500
...
4
SUB= 139888 HUS-105529X
...
5
CLIP T HUS-4171R
...
6
"NUT,KEPS" HUS-73951000
...
7
SUB= 74780612 HUS-74760612
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 140551 HUS-126656X
...
10
WASHER HUS-19131210
...
11
SUB= 73690600 HUS-73680600
...
12
WASHER HUS-19171912
...
13
"KNOB 1/2"" YT" HUS-120068X
...
14
"BOLT,SHOULDER" HUS-127018X
...
15
STRIP FORM HUS-121251X
...
16
BRKT SWITCH HUS-121246X
...
17
SUB= 73900400 HUS-123976X
...
18
BUSHING HUS-121248X
...
19
SPRING HUS-121250X
...
20
SPACER SPLIT HUS-121249X
...
21
SUB= 155925 HUS-124294X
...
22
BOLT HUS-72170410
