Husqvarna CT1236B (1991) Tractor

Model: CT1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

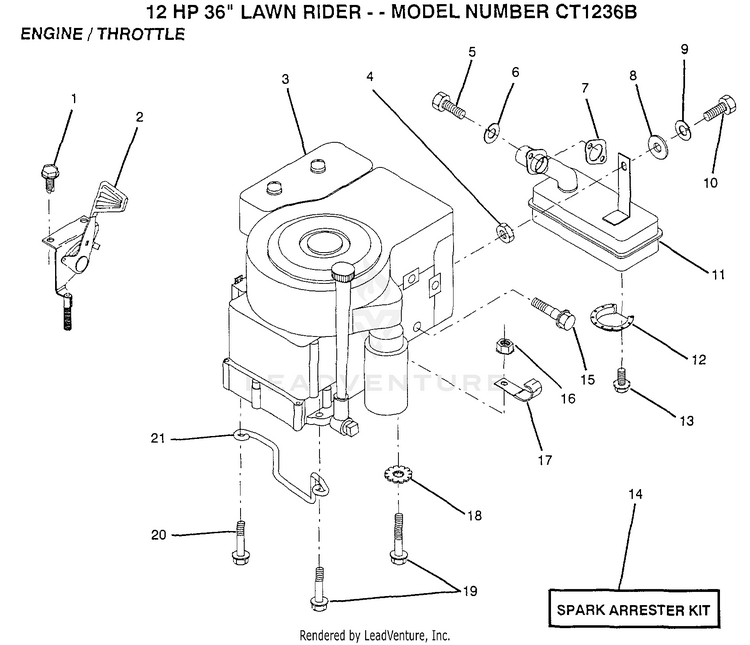

ENGINE/THROTTLE

...
...
1
SCREW HUS-17720408
...
2
SUB= 132752 HUS-122014X
...
3
ENGINE BRIGGS AND STRATTON HUS-124136X
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
SCREW HUS-71070512
...
6
LOCKWASHER HUS-10040500
...
7
SUB= 272293 HUS-125593X
...
8
WASHER HUS-19101216
...
9
LOCKWASHER HUS-10040400
...
10
BOLT HUS-74760416
...
11
MUFFLER HUS-124097X
...
12
DEFLECTOR.222573 HUS-101326L
...
13
SUB= 17030814 HUS-17030808
...
14
SUB= 532137180 HUS-121851X
...
15
BOLT T HUS-121094X
...
16
NUT HUS-73510600
...
17
CLIP T HUS-2751R
...
18
LOCKWASHER HUS-11050600
...
19
SCREW LT HUS-17490632
...
20
SCREW LT HUS-17490624
...
21
"KEEPER,DR BELT GR" HUS-126636X
...
xx
DECAL.ENG.271967 HUS-120601X
