Husqvarna CT1236B (1991) Tractor

Model: CT1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
SUB= 150228 HUS-120458X
...
2
SUB= 74760412 HUS-2274J
...
3
"DETENT, BALL(68003)" HUS-68003
...
4
"SPRING, DETENT LT" HUS-105904X
...
5
"SCREW, SET LT" HUS-105905X
...
6
NLA HUS-120460X
...
7
ORING T HUS-120461X
...
8
WASHER T HUS-120462X
...
xx
WASHER T HUS-120463X
...
xx
WASHER T HUS-120464X
...
xx
WASHER T HUS-120465X
...
xx
WASHER T HUS-120466X
...
xx
PLAIN WASHER HUS-83818
...
xx
WASHER T HUS-120467X
...
9
RETAINING RING LT HUS-2286J
...
10
RETAINING RING LT HUS-2267J
...
11
WASHER HUS-3413J
...
xx
WASHER 020 HUS-2233J
...
xx
WASHER 025 HUS-2232J
...
xx
WASHER 031 HUS-2231J
...
xx
WASHER 035 HUS-2230J
...
xx
WASHER 040 HUS-2229J
...
xx
WASHER 045 HUS-2228J
...
xx
WASHER 050 HUS-2227J
...
xx
WASHER 060 HUS-2226J
...
xx
"WASHER, PLAIN LT" HUS-105906X
...
12
O-RING T HUS-6725J
...
13
WASHER T HUS-120415X
...
14
WOODRUFF KEY HUS-2257J
...
15
IMPUT KIT T HUS-110077X
...
16
PINION 14T T HUS-110078X
...
17
"RING,RETAINING LT" HUS-105909X
...
18
"CHAIN,24 PTCH LT" HUS-105910X
...
19
BEARING.FLNG.5510 HUS-105911X
...
20
GEAR 14T LT HUS-108976X
...
21
SUB= 138246 HUS-105913X
...
22
KEY T HUS-120468X
...
23
KEY HUS-2242J
...
24
SUB= 153655 HUS-120469X
...
25
WOODRUFF KEY HUS-2244J
...
26
"RING,RETAINING LT" HUS-105916X
...
27
SPROCKET 18T T HUS-120470X
...
28
SPACER YT HUS-110070X
...
29
KIT.GEAR.12/37TH HUS-108977X
...
30
SUB= 144893 HUS-109254X
...
31
SUB= 124644X HUS-120405X
...
32
GEAR 25T LT HUS-108980X
...
33
GEAR SPUR 22 TT HUS-120406X
...
34
SUB= 134796 HUS-108455X
...
35
"WASHER, PLAIN LT" HUS-105925X
...
36
WASHER 025 HUS-2232J
...
37
SPACER HUS-108978X
...
38
ASSM GEAR COMB HUS-110079X
...
39
SHAFT IDLER T HUS-120471X
...
40
SPACER T HUS-120472X
...
41
SPROCKET 9T LT HUS-105928X
...
42
SUB= 167148 HUS-110084X
...
43
WASHER LT HUS-108983X
...
xx
"WASHER, PLAIN LT" HUS-105930X
...
xx
"WASHER, PLAIN LT" HUS-105931X
...
xx
"WASHER, PLAIN LT" HUS-105932X
...
xx
WASHER HUS-3417J
...
xx
"WASHER, PLAIN LT" HUS-106097X
...
xx
WASHER 031 HUS-2264J
...
xx
"WASHER, PLAIN LT" HUS-106098X
...
xx
WASHER 040 HUS-2265J
...
xx
WASHER PLAIN HUS-106586X
...
xx
"WASHER, PLAIN LT" HUS-106587X
...
xx
"WASHER, PLAIN LT" HUS-106588X
...
xx
WASHER 062 HUS-2263J
...
44
SHAFT T HUS-120473X
...
45
SUB= 108977X HUS-105933X
...
46
SUB= 144893 HUS-106151X
...
47
SUB= 124641X HUS-120407X
...
48
"GEAR, SPUR 25T LT" HUS-106589X
...
49
GEAR 28T T HUS-120408X
...
50
"GEAR, SPUR 31T LT" HUS-105937X
...
51
WASHER 060 HUS-2226J
...
52
SUB= 134401 HUS-2272J
...
53
WASHER 062 HUS-2263J
...
54
SUB= 125595X HUS-123907X
...
55
GEAR 15T T HUS-110081X
...
56
"RING,RETAINING LT" HUS-105941X
...
57
SUB= 120478X HUS-110071X
...
58
SHAFT T HUS-120952X
...
59
GEAR 1ST T HUS-110082X
...
60
SUB= 125596X HUS-123908X
...
61
SUB= 134798 HUS-120476X
...
62
PUCK T HUS-120961X
...
63
BRAKE DISC. T HUS-7294J
...
64
SPACER LT HUS-108989X
...
65
SUB= 918120953X HUS-120953X
...
66
PIN T HUS-120954X
...
67
SCREW T HUS-120955X
...
68
LEVER ACTUATOR HUS-108992X
...
69
WASHER LT HUS-108996X
...
70
NLA HUS-120956X
...
71
NUT.LOCK.5/16-24 HUS-73810500
...
72
"SCREW, TAPPING LT" HUS-106596X
...
73
WASHER T HUS-120993X
...
74
PUCK T HUS-120951X
...
75
SUB= 126976X HUS-120416X

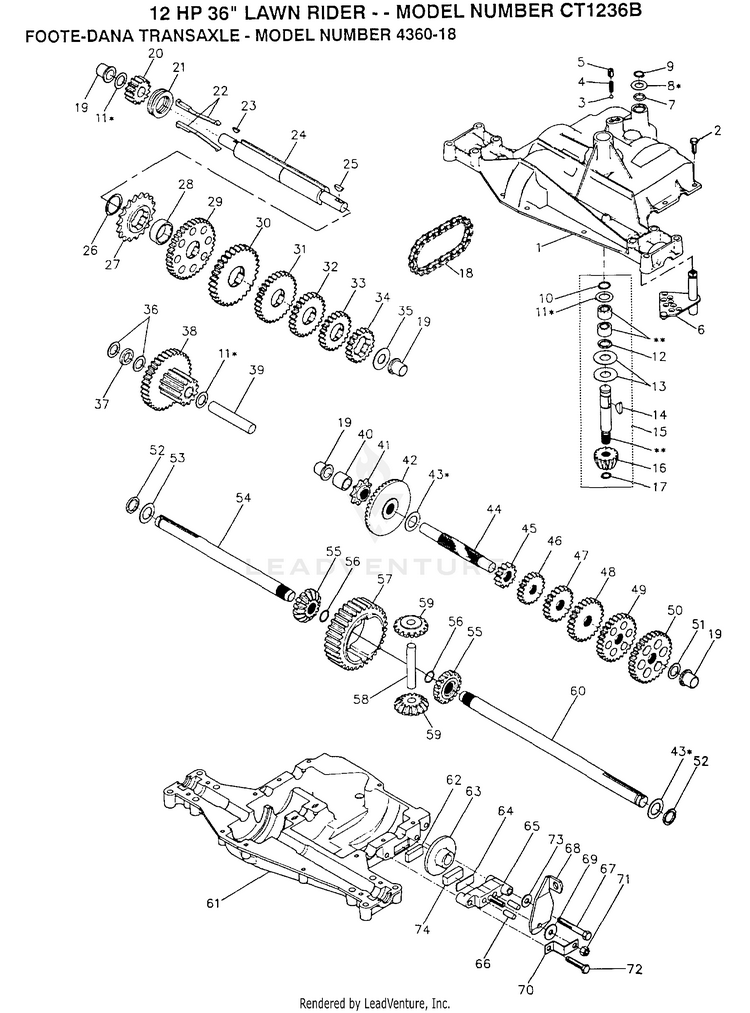

Schematic Image Zoomed
