product name

Husqvarna CT1236B (1991) Tractor

Model: CT1236B (1991)

Back To Assemblies

Save Part Not Listed?
product name

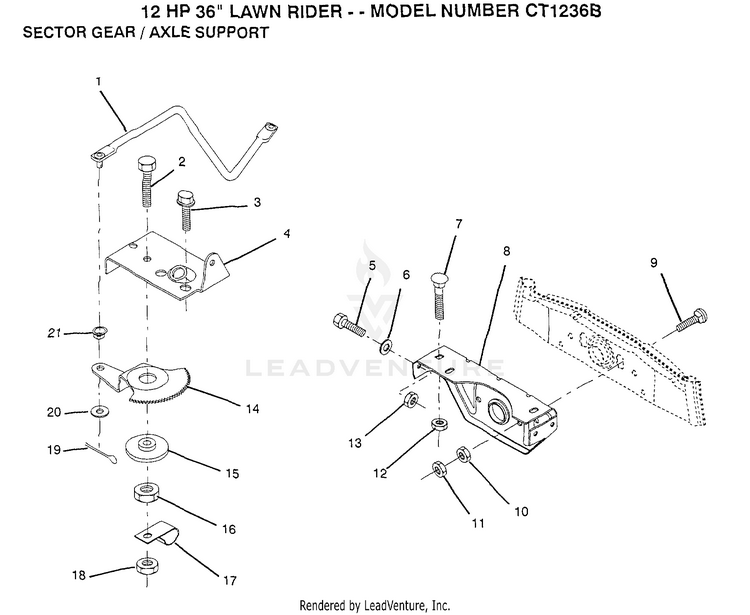

SECTOR GEAR/AXLE SUPPORT

...
...
1
SUB= 132566 HUS-124093X
...
2
"BOLT,HEX" HUS-74780828
...
3
SCREW LT HUS-17490508
...
4
"PLATE,STR SUPT" HUS-121925X
...
5
BOLT HUS-74760512
...
6
WASHER HUS-19111416
...
7
BOLT HUS-72110606
...
8
"SUPT,FRT AXLE" HUS-121912X
...
9
BOLT HUS-72140622
...
10
NUT.HEX.3/8-16UNC HUS-73220600
...
11
LOCKNUT HUS-73930600
...
12
SUB= 73690600 HUS-73680600
...
13
SUB= 73690500 HUS-73680500
...
14
GEAR SECTOR HUS-121926X
...
15
BUSHING HUS-121927X
...
16
NUT HUS-73030800
...
17
CLIP INSULATOR HUS-126472X
...
18
NUT LTV HUS-73680800
...
19
COTTER PIN HUS-76020412
...
20
WASHER HUS-19131316
...
21
BUSHING.DRAGLINK HUS-126847X
