Husqvarna CT1236A (1991) Tractor

Model: CT1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

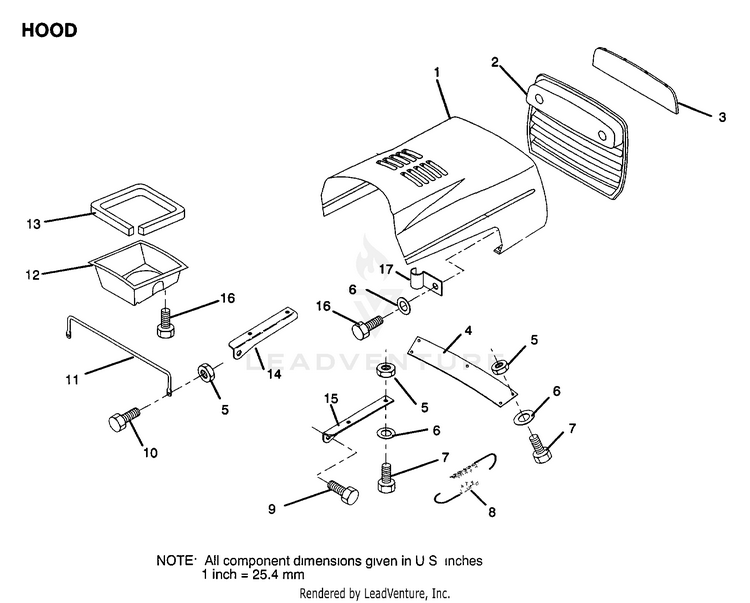

HOOD

...
...
1
SUB= 132918X419 HUS-122032X014
...
2
SUB= 134232X428 HUS-127176X366
...
3
LENS T HUS-127178
...
4
"STRAP,GRILL T" HUS-122550X419
...
5
NUT HUS-73510400
...
6
WASHER HUS-19091016
...
7
BOLT HUS-74780410
...
8
EXT SPRING HUS-124657X
...
9
SUB= 139888 HUS-126675X
...
10
SUB= 74780414 HUS-74780412
...
11
"BRACE,HOOD" HUS-123693X
...
12
"DUCT,AIR" HUS-123840X
...
13
FOAM STRIP LT HUS-120537X
...
14
BRKT HOOD LH HUS-122548X
...
15
BRKT HOOD RH HUS-122549X
...
16
SUB= 17521312 HUS-17411310
...
17
CLIP T HUS-2751R
...
xx
NLA HUS-127036
...
xx
SUB= 130569 HUS-128195
...
xx
SUB= 130568 HUS-128194
...
xx
"DECAL,HOOD" HUS-127033
Schematic Image Zoomed
