Husqvarna CT1236A (1991) Tractor

Model: CT1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

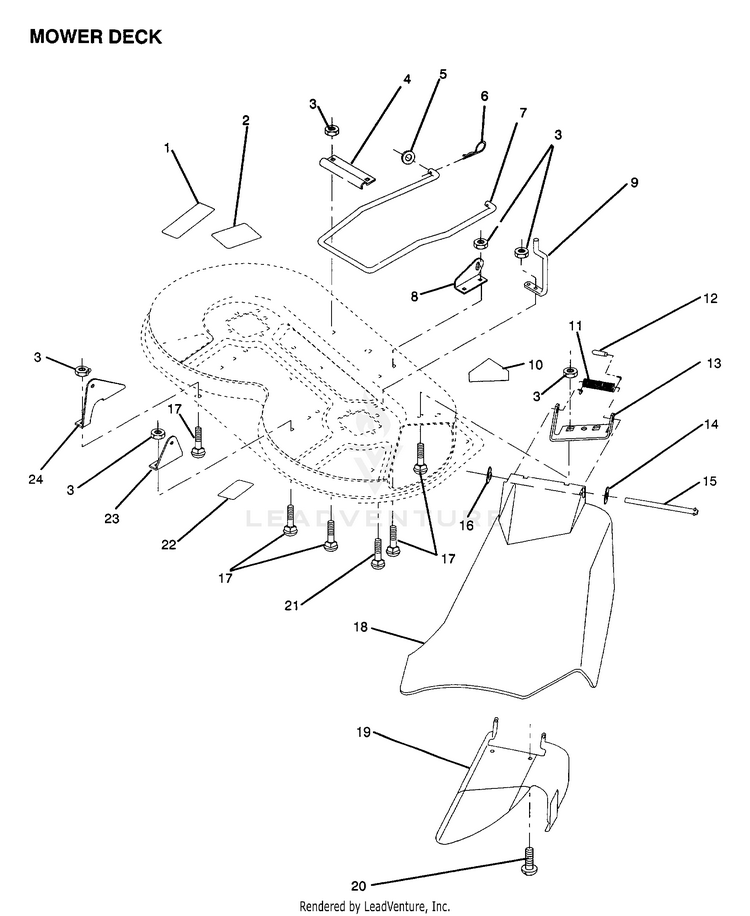

MOWER DECK

...
...
1
DECAL YT HUS-109820X
...
2
DECAL.LT HUS-105814X
...
3
SUB= 73690500 HUS-73680500
...
4
"BRKT,STAB LINK" HUS-122047X
...
5
SUB= 146537 HUS-19171713
...
6
RETAINER.SPRING HUS-3146R
...
7
STABILIZER MOWER HUS-124636X
...
8
"BRKT,FRT LIFT RH" HUS-122045X
...
9
"GUIDE,FRT MAN RH" HUS-123661X
...
10
DECAL WARNING HUS-123658X
...
11
SPRING TORSION HUS-123713X
...
12
CAP-SLEEVE LT HUS-105304X
...
13
SUB= 532136631 HUS-126361X
...
14
WASHER HUS-19111016
...
15
HINGE ROD HUS-121980X
...
16
NUT PUSH M HUS-110452X
...
17
BOLT HUS-72140505
...
18
SUB= 136244 HUS-126370X
...
19
DEFL SUPT ASS'Y HUS-125629X
...
20
SCREW PAN HD HUS-17051007
...
21
BOLT HUS-74760512
...
22
DECAL WARNING HUS-123649X
...
23
"BRKT,REAR LIFT RH" HUS-122043X
...
24
"BRKT,REAR LIFT LH" HUS-122044X
