Husqvarna CT1236A (1991) Tractor

Model: CT1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

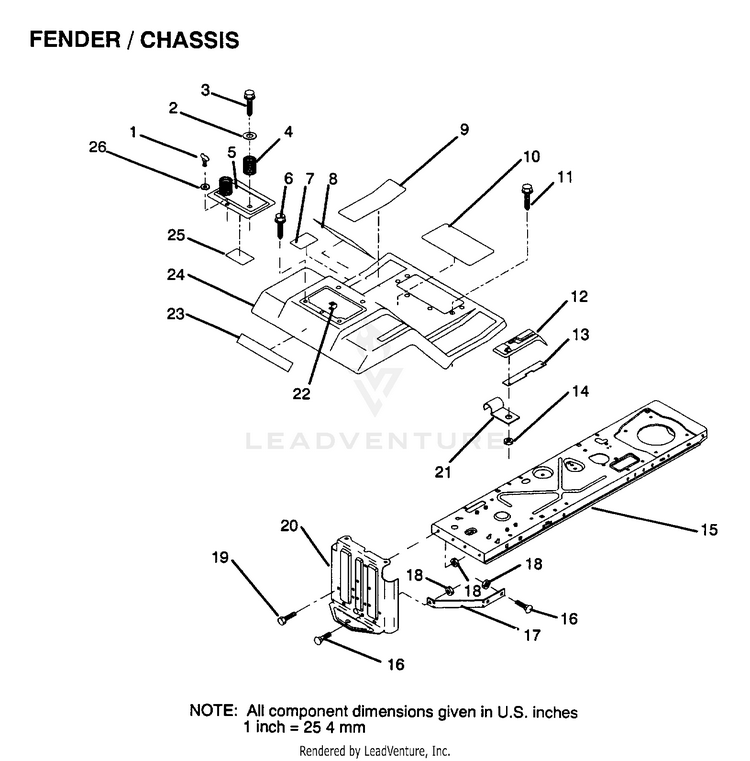

FENDER/CHASSIS

...
...
1
STUD.1/4.TURN HUS-123650X
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
"DOOR,FENDER T" HUS-122008X419
...
6
SCREW LT HUS-17490508
...
7
DECAL DRIVE HUS-123408X
...
8
DECAL HUS-120822X
...
9
PAD FOOTREST HUS-124144X
...
10
SUB= 138269 HUS-123637X
...
11
SCREW HUS-17490512
...
12
SUB= 126995X428 HUS-126995X
...
13
"SHIFT LOCK, BAR" HUS-124307X
...
14
NUT HUS-124346X
...
15
FRAME ASS'Y HUS-123645X
...
16
BOLT HUS-72140506
...
17
"BRACE,DRAWBAR " HUS-123379X
...
18
SUB= 73690500 HUS-73680500
...
19
BOLT HUS-74760512
...
20
DRAWBAR HUS-121904X
...
21
"CLIP,INSULATOR" HUS-126470X
...
22
RECEPTACLE LT HUS-105839X
...
23
"DECAL,FENDER" HUS-127037
...
24
"FENDER,FOOTREST T" HUS-124332X419
...
25
DECAL HUS-121549X
...
26
RETAINER LT HUS-105838X
