Husqvarna CT1138C (1992) Tractor

Model: CT1138C (1992)

Back To Assemblies

Save Part Not Listed?

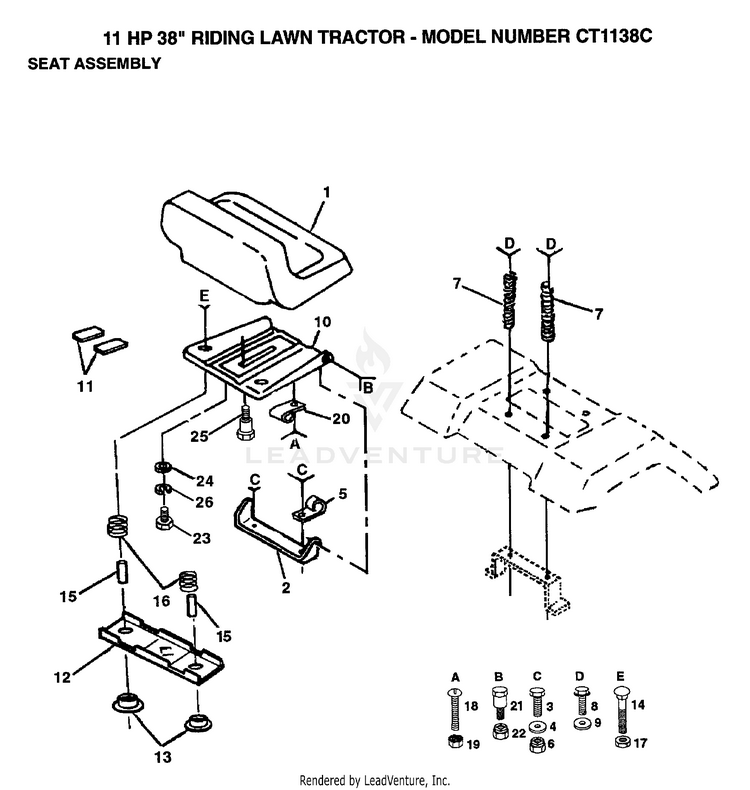

product name

SEAT

...
...
1
SUB= 140119 HUS-127422X
...
2
SUB= 140551 HUS-126656X
...
3
SUB= 74780612 HUS-74760612
...
4
WASHER HUS-19131210
...
5
CLIP T HUS-2751R
...
6
SUB= 73690600 HUS-73680600
...
7
SPRING COMPRESSIO HUS-124181X
...
8
SCREW GTV HUS-17490616
...
9
WASHER HUS-19131614
...
10
SUB= 155925 HUS-131451
...
11
STRIP FORM HUS-121251X
...
12
BRKT SWITCH HUS-121246X
...
13
BUSHING HUS-121248X
...
14
SUB= 872050411 HUS-72050411
...
15
SPACER SPLIT HUS-121249X
...
16
SPRING HUS-121250X
...
17
SUB= 73900400 HUS-123976X
...
18
SUB= 71031008 HUS-74641008
...
19
"NUT,KEPS" HUS-73951000
...
20
CLIP T HUS-4171R
...
21
SUB= 139888 HUS-105529X
...
22
SUB= 73690500 HUS-73680500
...
23
BOLT HUS-74780814
...
24
WASHER HUS-19171912
...
25
"BOLT,SHOULDER" HUS-127018X
...
26
LOCKWASHER HUS-10040800
