Husqvarna CT10L36C (1994) Tractor

Model: CT10L36C (1994)

Back To Assemblies

Save Part Not Listed?
product name

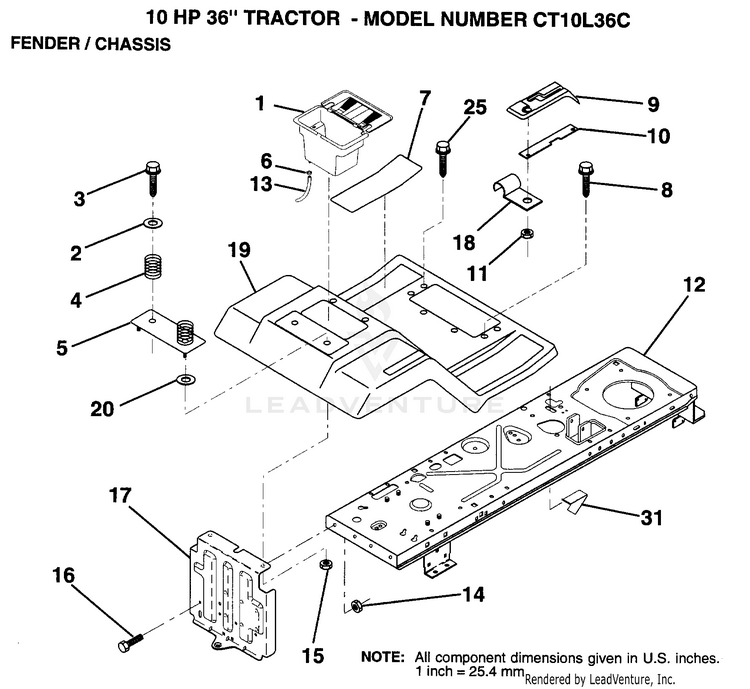

FENDER/CHASSIS

...
...
1
SUB= 156417 HUS-129965
...
2
WASHER HUS-19132012
...
3
SCREW HUS-17490612
...
4
SPRING COMPRESSIO HUS-124181X
...
5
BTRY FENDER PLATE HUS-127115X505
...
6
HOSE CLAMP T HUS-109596X
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
CONSOLE SHFT 4SP HUS-126993X
...
10
PLATE LOCK SHIFT HUS-139783
...
11
NUT HUS-124346X
...
12
SUB= 145424 HUS-140784
...
13
TUBE T HUS-109238X
...
14
NUT HUS-73800500
...
15
NUT HUS-73510400
...
16
BOLT HUS-74760512
...
17
DRAWBAR ASM LR HUS-140782
...
18
"CLIP,INSULATOR" HUS-126470X
...
19
FENDER/FOOT MS505 HUS-140955X505
...
20
WASHER HUS-19091413
...
25
SCREW TI HUS-17490516
...
31
SUB= 146613 HUS-141736
