Husqvarna CT10L36A (1992) Tractor

Model: CT10L36A (1992)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

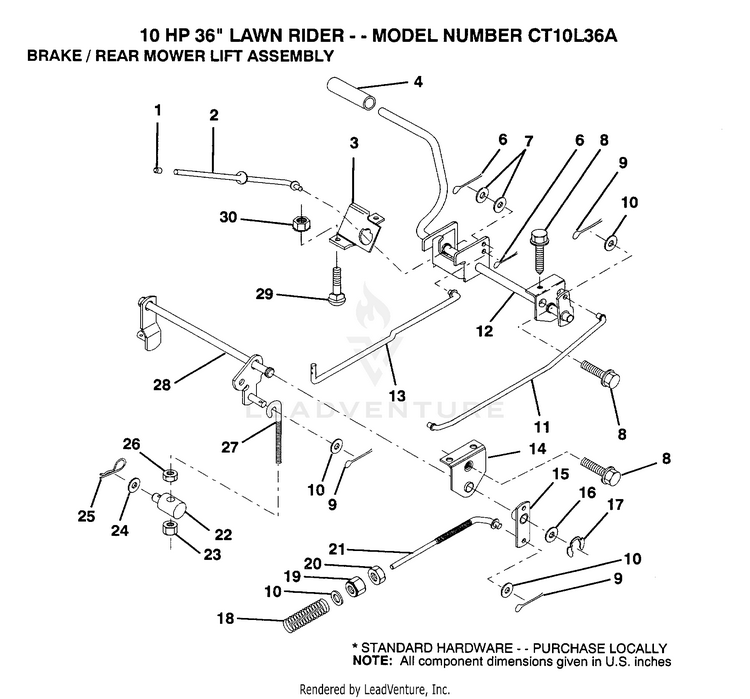

BRAKE/REAR MOWER LIFT

...
...
1
PLUNGER CAP T PLN-71673
...
2
"ROD,PARK BRAKE" PLN-123436X
...
3
"BRKT,PARK BRAKE" PLN-123437X
...
4
FOOT PEDAL COVER PLN-8156H
...
6
SUB= 3145 PLN-76020312
...
7
WASHER PLN-19131016
...
8
SCREW LT PLN-17490508
...
9
COTTER PIN PLN-76020412
...
10
WASHER PLN-19131316
...
11
SUB= 136225 PLN-131656
...
12
SUB= 139933 PLN-133483
...
13
"ROD,CLUTCH" PLN-123394X
...
14
"BRKT,LIFT SHAFT" PLN-121978X
...
15
PVT BRAKE ARM ASM PLN-133332
...
16
WASHER T PLN-19251816
...
17
KLIP RING PLN-12000034
...
18
SPRING ROD LT PLN-106888X
...
19
SUB= 73690600 PLN-73680600
...
20
NUT PLN-73350600
...
21
SUB= 532131460 PLN-131460
...
22
SUB= 144585 PLN-127378
...
23
SUB= 73690600 PLN-73680600
...
24
WASHER PLN-19132012
...
25
SPRING.RETAINER PLN-4921H
...
26
LOCKNUT PLN-73930600
...
27
"LINK, MOWER REAR" PLN-127369
...
28
SUB= 140776 PLN-127358
...
29
SUB= 72270506 PLN-72110506
...
30
NUT PLN-73510500
...
...
...
