Husqvarna CT1036A (1991) Tractor

Model: CT1036A (1991)

Back To Assemblies

Save Part Not Listed?
product name

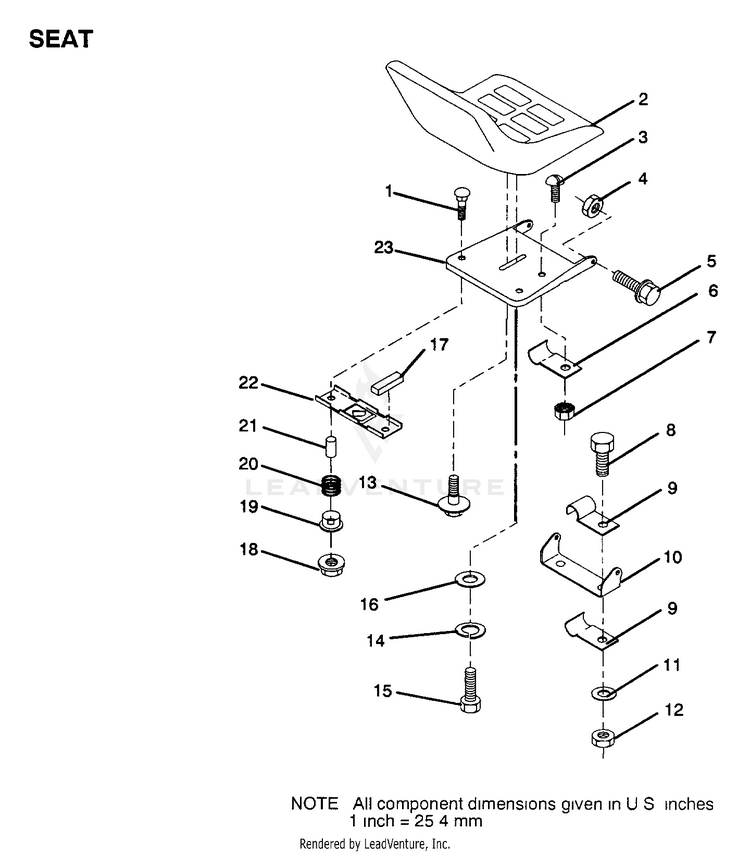

SEAT

...
...
1
BOLT HUS-72170410
...
2
SUB= 140119 HUS-127422X
...
3
SUB= 71031008 HUS-74641008
...
4
SUB= 73690500 HUS-73680500
...
5
SUB= 139888 HUS-105529X
...
6
CLIP T HUS-4171R
...
7
"NUT,KEPS" HUS-73951000
...
8
SUB= 74780612 HUS-74760612
...
9
"CLIP,INSULATOR" HUS-126471X
...
10
SUB= 140551 HUS-126656X
...
11
WASHER HUS-19131210
...
12
SUB= 73690600 HUS-73680600
...
13
"BOLT,SHOULDER" HUS-127018X
...
14
LOCKWASHER HUS-10040800
...
15
BOLT HUS-74780814
...
16
WASHER HUS-19171912
...
17
STRIP FORM HUS-121251X
...
18
SUB= 73900400 HUS-123976X
...
19
BUSHING HUS-121248X
...
20
SPRING HUS-121250X
...
21
SPACER SPLIT HUS-121249X
...
22
BRKT SWITCH HUS-121246X
...
23
SUB= 155925 HUS-124294X
