Husqvarna CT 130 (HECT150B) (954170019) (2000-01) Ride Mower

Model: CT 130 (HECT150B) (954170019) (2000-01)

Back To Assemblies

Save Part Not Listed?
product name

Mower

...
...
1
Housing Asm. Mower 107 CRD HUS-532169160
...
2
GSPW Bolts HUS-595901601
...
3
BRACKET HUS-532165569
...
4
BRACKET HUS-532169167
...
5
RETAINER-SPRNG RB HUS-532124670
...
6
BAR.SWAY.92.CRD HUS-532165557
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE HUS-532140296
...
11
BLADE.3N1.LH.CRD HUS-532180583
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BEARING HUS-532110485
...
16
BLADE.3N1.RH.CRD HUS-532180584
...
18
Bolts HUS-596728201
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
BOLT HUS-532165484
...
21
Hardware HUS-596040501
...
22
BRACKET.IDLER.RR.107.CRD HUS-532169165
...
23
BRACKET HUS-532169166
...
24
BRACKET HUS-532169170
...
25
BRACKET.SUSPENSION.RF.107.CRD HUS-532169171
...
26
BRACE.SUSP.FRONT.CRD/36.2006 HUS-583259301
...
27
BRACKET HUS-532169172
...
28
BRACKET.ASM.SUSP.LR.107.CRD HUS-583029401
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
PULLEY MANDREL HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
BRKT.GA.WHL.LF/RR.107.2006 HUS-583258801
...
35
BRACKET HUS-532169175
...
36
PULLEYS HUS-593787801
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
38
SPACER HUS-532169851
...
39
BOLT HUS-872110622
...
40
Nuts HUS-596322601
...
44
Cover Mandrel Lh 107 CRD HUS-532169180
...
45
COVER.MANDREL.RH.CRD HUS-532175539
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
55
SERVICE KIT ARM.IDLER ARM.IDLE HUS-531149401
...
61
SPRING.TENSION.BELT HUS-532165945
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
68
DRIVE BELT HEX-BELT 107 MOWER HUS-547597001
...
69
SHAFT.ASM.W/LWR.BRG.RH.THREAD HUS-532165482
...
84
Keepers HUS-597024901
...
116
Bolts HUS-596434404
...
117
WHEEL GAGE DONUT HUS-532133957
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
124
GSPW Bolts HUS-596136101
...
128
WASHER FELT HUS-532153390
...
130
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
131
CHUTE BAGGER HUS-532165661
...
151
BRACKET.CLUTCH.CABLE HUS-532169670
...
152
Cable Clutch CRD Service HUS-532170300
...
153
Washers HUS-596140201
...
154
SPRING RETAINER HUS-532169675
...
155
SPRING RETENTION LEVER HUS-532169671
...
156
SPACER.CLUTCH.CABLE HUS-532169672
...
157
ROD CLUTCH CABLE 3/8" HUS-532169669
...
158
Bolts HUS-596582501
...
xx
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
xx
MANDREL ASM.CRD RH 6PT STAR HUS-532165579
...
xx
DECK SVC. COMP. HUS-532170273

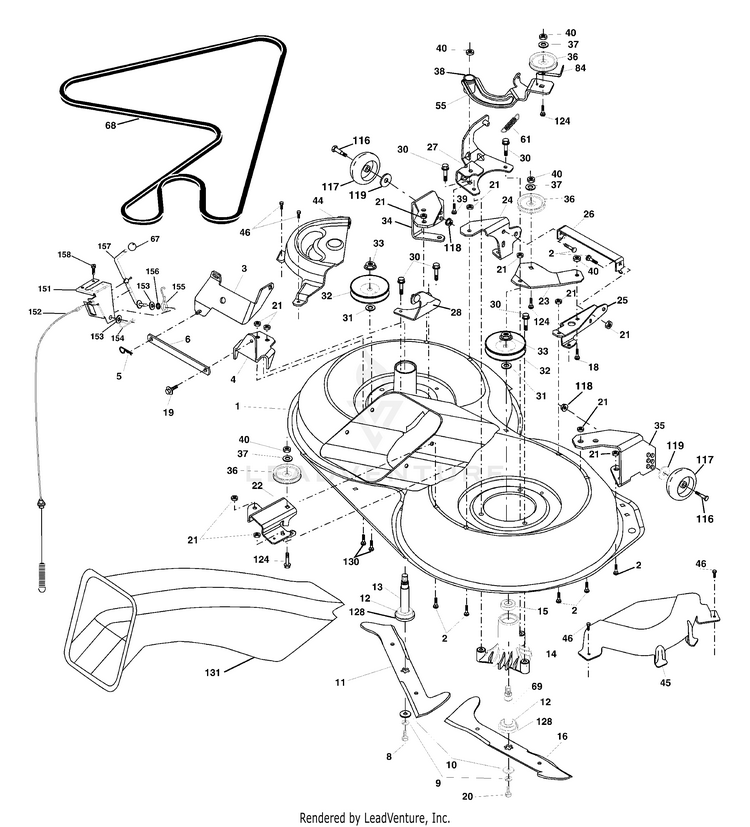

Schematic Image Zoomed
