Husqvarna CT 130 (HECT130D) (954170017) (2001-08) Ride Mower

Husqvarna CT 130 (HECT130D) (954170017) (2001-08) Ride Mower

Model: CT 130 (HECT130D) (954170017) (2001-08)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Nut Hex Flange Lock (Thrd Sp ) HUS-532409149

Poulan/WeedEater Prevailing Torque Lock Nut HUS-596040501

Washer Plain Washer 3/8 X 7/8 HUS-596134901

Washer 11/32 X 11/16 X 14 Ga T HUS-596204101

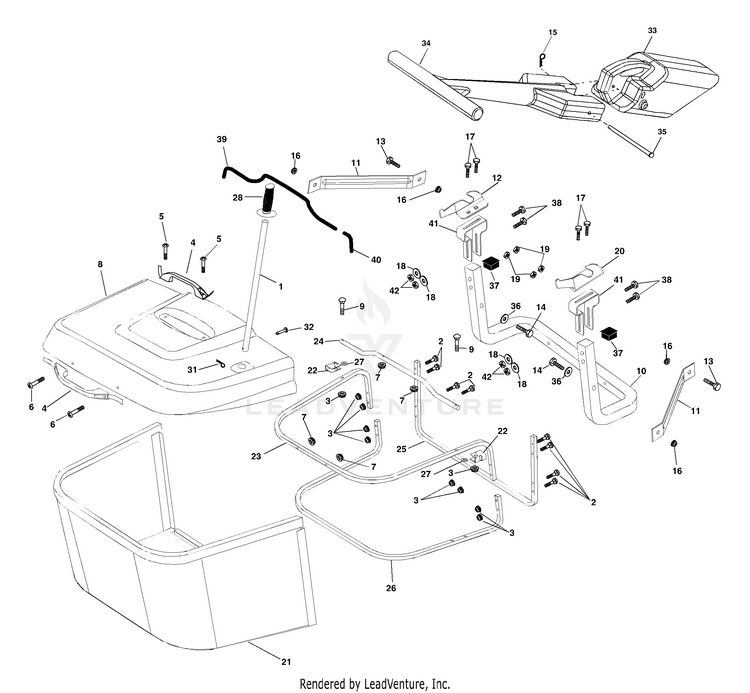

Bagger

1

TUBE HANDLE BAGGER HUS-532170690

2

Bolt Carriage 1/4-20 x 2.0 Gr.5 HUS-872140416

3

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

4

HANDLE.BAGGER.W/LVRS.BLK.CRD HUS-532169916

5

SCREW.PAN.HEAD HUS-874981024

6

SCREW HUS-532750029

7

NUT HUS-873401000

8

COVER.BAGGER.CRD.ORANGE HUS-532165715

9

Bolt Carriage 1/4-20 x 2.25d x Gr.5 HUS-872140418

10

TUBE.SUPPORT.BAGGER.CRD HUS-583110201

11

BRACKET.SUPPORT.UPPER.BAG.CRD HUS-532165719

12

BRACKET HUS-532169685

13

Bolts HUS-596136001

14

Bolt Hex 3/8-16 x 2-1/2 Gr.5 HUS-874520640

15

RETAINER-SPRNG RB HUS-532124670

16

NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

17

GSPW Bolts HUS-595901601

18

WASHER 11/32 X 11/16 X 14 GA T HUS-596204101

19

GSPW Nuts HUS-596135701

20

BRKT.PIVOT.RH.CRD HUS-532188847

21

GRASS BAG HUS-532180880

22

BRKT.SIDE.BAG.CRD HUS-532165781

23

TUBE.UPPER.BAG.CRD HUS-532165782

24

TUBE.PIVOT.BAG.CRD.BLACK HUS-532165783

25

TUBE HUS-532165784

26

TUBE.LOWER.BAG.CRD HUS-532165785

27

BUSHING HUS-532169692

28

Grip Handle Black HUS-532170696

31

RETAINER M HUS-532004497

32

RIVET,DRILLED HUS-532126875

33

MULCHING.PLUG.92.CRD.NON-TEX HUS-583448501

34

HANDLE.MULCHER.92.CRD (2 2) HUS-532165570

35

PIN HUS-532165572

36

GSPH HUS-596134901

37

Plug Support Bagger CRD HUS-532175401

38

BOLT.5/16-18X2.5 HUS-872010520

39

SET OF SEALING STRIPS HUS-532169997

40

SET OF SEALING STRIPS HUS-532169997

41

BRKT.VERT.ADJ.BAGGER.CRD HUS-532169683

42

Hardware HUS-596040501
