Husqvarna CT 130 (HECT130D) (954170017) (2001-08) Ride Mower

Model: CT 130 (HECT130D) (954170017) (2001-08)

Back To Assemblies

Save Part Not Listed?
product name

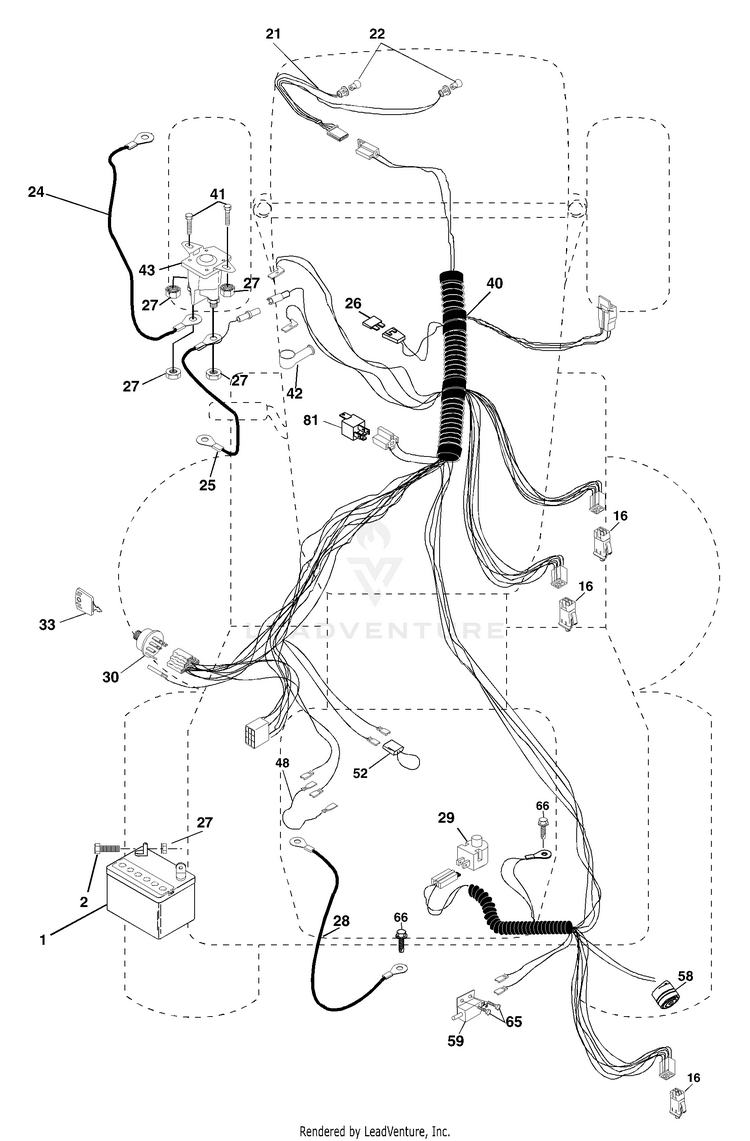

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS HUS-532166181
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY HUS-532165987
...
26
FUSE 15 AMP HUS-532166180
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE GROUND HUS-532127725
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
Harness Ign Crd Noram HUS-532170164
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
48
ADAPTER.AMMETER HUS-532140844
...
52
WIRE PROTECTION LOOP HUS-532141940
...
58
KIT.BUZZER.CRD HUS-532169420
...
59
SWITCH HUS-532166299
...
65
Screw Slftp #10-16 x 1/2 Ty-Ab HUS-817211008
...
66
Bolts HUS-596564001
...
81
RELAY.ASSY.T HUS-532109748
