Husqvarna CSGT18546A (1997) Tractor

Model: CSGT18546A (1997)

Back To Assemblies

Save Part Not Listed?
product name

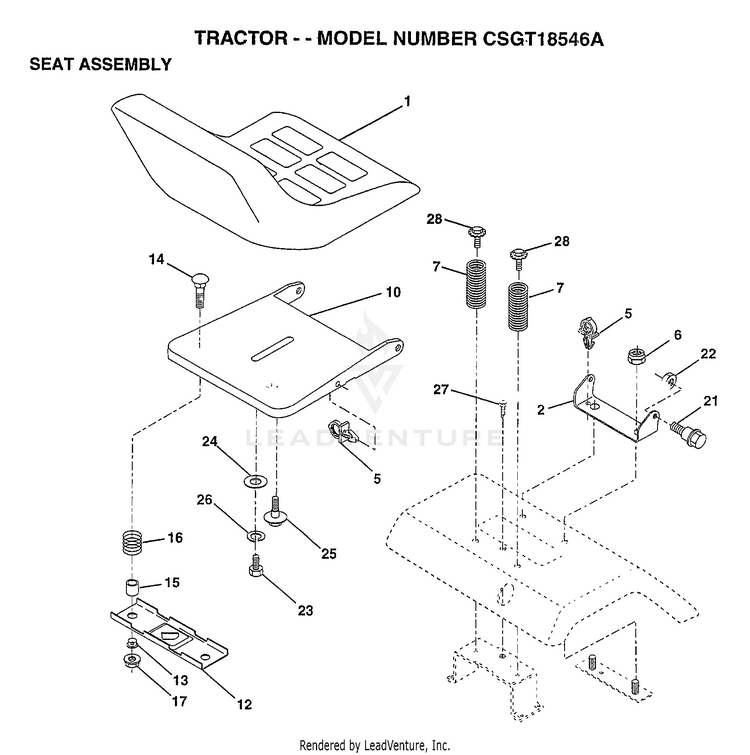

SEAT ASSEMBLY

...
...
1
SUB= 140121 HUS-127429X
...
2
BRACKET PVT SEAT HUS-140551
...
5
CLIP.PUSH-IN.HING HUS-145006
...
6
NUT HUS-73800600
...
7
SPRING COMPRESSIO HUS-124181X
...
10
PAN-SEAT HUS-155925
...
12
BRKT SWITCH HUS-121246X
...
13
BUSHING HUS-121248X
...
14
SUB= 872050411 HUS-72050411
...
15
SPACER SPLIT HUS-121249X
...
16
SPRING COMPRESSED HUS-123740X
...
17
SUB= 73900400 HUS-123976X
...
21
"BOLT,SHOULDER" HUS-153236
...
22
NUT HUS-73800500
...
23
BOLT HUS-74780814
...
24
WASHER HUS-19171912
...
25
"BOLT,SHOULDER" HUS-127018X
...
26
LOCKWASHER HUS-10040800
...
27
SCREW LT HUS-17490608
...
28
BOLT.5/16-18.UNC HUS-150176
