Husqvarna CS2260 (2012-05) Chain Saw

Model: CS2260 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

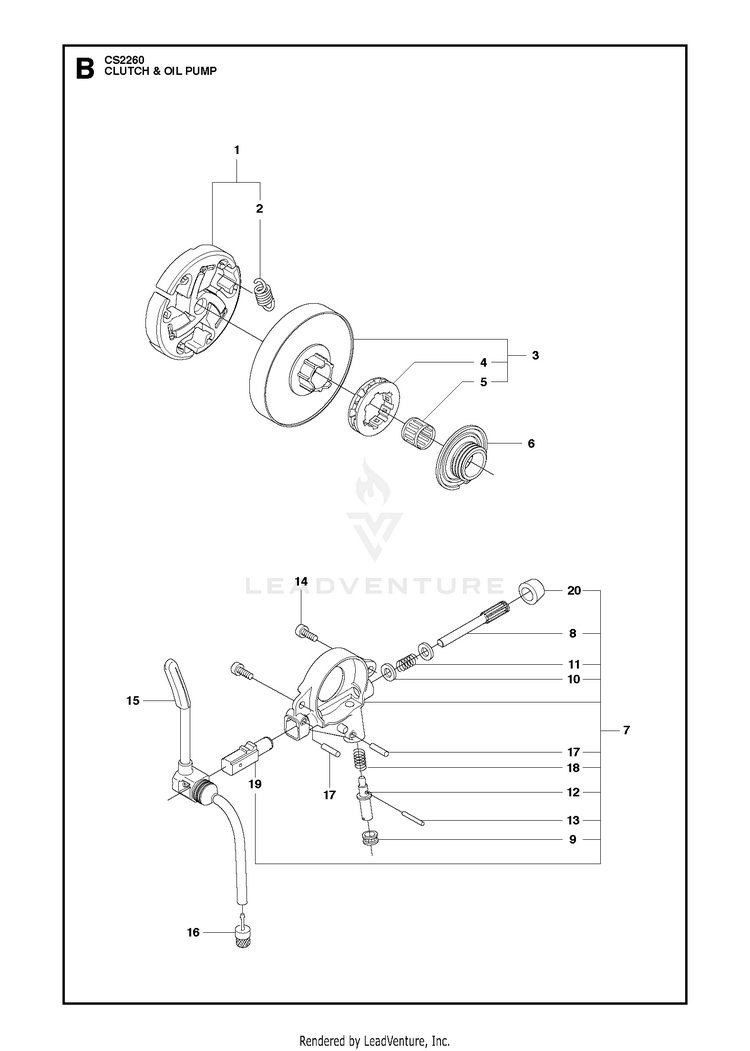

CLUTCH OIL PUMP

...
...
1
Clutches HUS-589809002
...
2
SPRING . 1 HUS-537166901
...
3
CLUTCH DRUM ASSY RIM .325"7T 325 x7 HUS-575261005
...
3
CLUTCH DRUM 3/8" 7T 3 /8 x7 HUS-575261006
...
4
11892 POWER MATE RIM 325 x7. 3 HUS-640200010
...
4
68210/RIM 3 /8 x7. 3 HUS-640200214
...
5
SUPPORT BUSHING . 3 HUS-503253401
...
6
WORM WHEEL HUS-505200801
...
7
Joints HUS-599231901
...
8
PUMP PISTON . 7 HUS-505200202
...
9
CASING . 7 HUS-505200301
...
10
WASHER . 7 HUS-503230060
...
11
SPRING . 7 HUS-503891601
...
12
ADJUSTING SCREW . 7 HUS-505157001
...
13
PIN . 7 HUS-721116430
...
14
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
15
OIL HOSE HUS-505200401
...
16
OIL PLUMMET HUS-504710003
...
17
PIN 3X10 . 7 HUS-720123300
...
18
SPRING . 7 HUS-503891501
...
19
PUMP CYLINDER . 7 HUS-505200101
...
20
SEALING PLUG . 7 HUS-503624902
