Husqvarna CS2260 (2012-05) Chain Saw

Model: CS2260 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

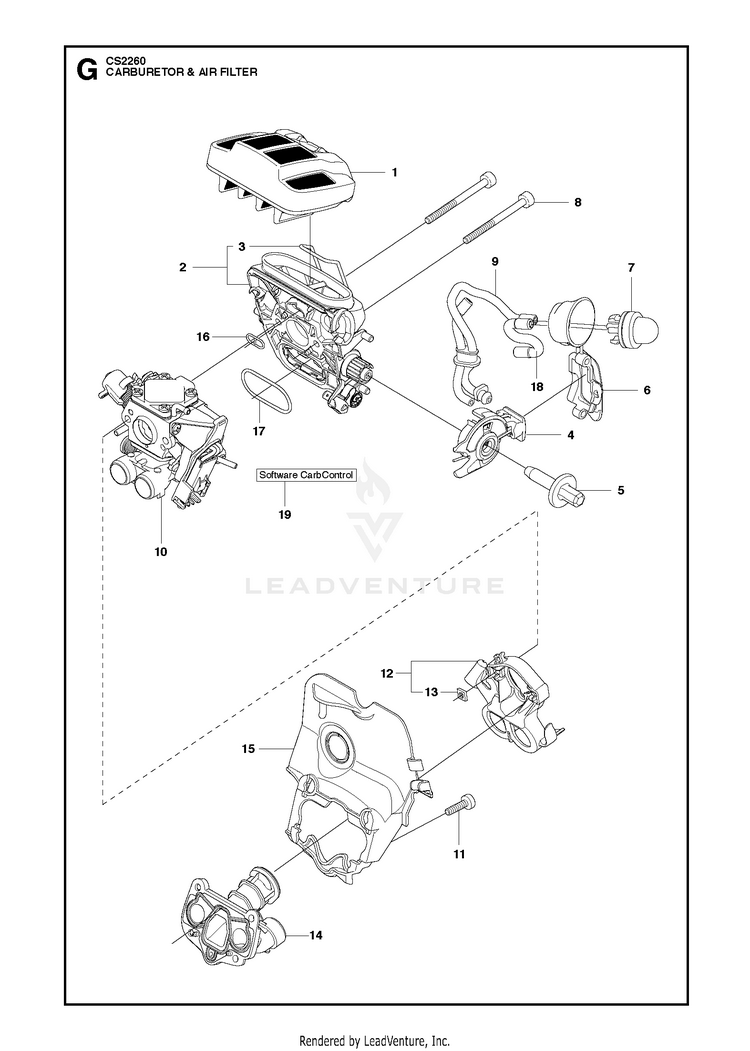

CARBURETOR AIR FILTER

...
...
1
AIR FILTER NYLON 80 m black HUS-505126304
...
1
AIR FILTER ASSY NYLON 44 m yellow HUS-505126307
...
1
AIR FILTER ASSY FELT white HUS-505126306
...
2
FILTER HOLDER ASSY XP HUS-525397903
...
2
RP FILTER HOLDER ASSY XPG HUS-505127002
...
3
SHACKLE . 2 HUS-505176901
...
4
CHOKE CONTROL ASSY CHOKE/STOP HUS-510017202
...
5
SCREW HUS-505156201
...
6
SEALING HUS-525588101
...
7
AIR PURGE BUBBLE HUS-503936601
...
8
SCREW HUS-503202550
...
9
VENTILATING HOSE,KIT HUS-589357101
...
10
CARBURETOR KIT 555 AUTOTUNE HUS-579194101
...
11
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818101
...
12
FLANGE HUS-505165201
...
13
NUT . 12 HUS-503226503
...
14
INLET PIPE HUS-583964103
...
15
INTERMEDIATE WALL HUS-520290901
...
16
SEALING HUS-525619201
...
17
SEALING HUS-525619001
...
18
FUEL HOSE HUS-523056801
...
19
Download from your local supportsite HUS-000000000
