Husqvarna CS2260 (2012-05) Chain Saw

Model: CS2260 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

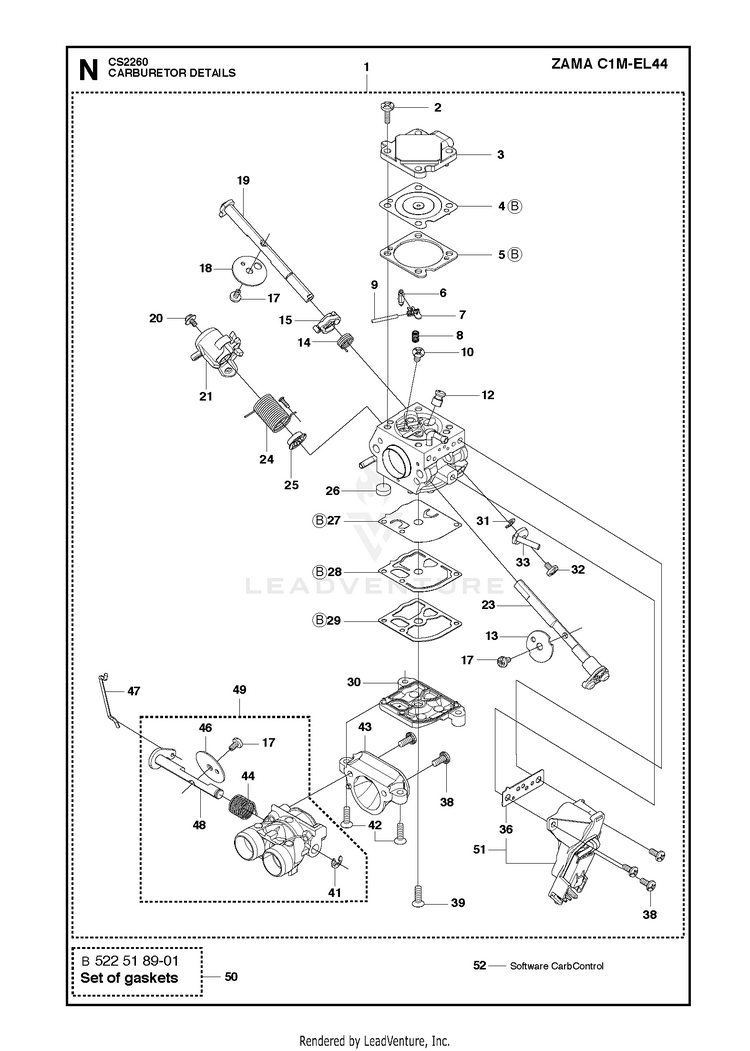

CARBURETOR DETAILS

...
...
1
CARBURETOR KIT 555 AUTOTUNE HUS-579194101
...
2
SCREW . 1 HUS-522545101
...
3
COVER . 1 HUS-522517201
...
4
DIAPHRAGM . 1 50 HUS-522517401
...
5
GASKET . 1 50 HUS-522517501
...
6
INLET NEEDLE . 1 HUS-503479701
...
7
LEVER . 1 HUS-503665901
...
8
SPRING . 1 HUS-537383401
...
9
PIN . 1 HUS-537020801
...
10
SCREW . 1 HUS-503480101
...
12
MAIN NOZZLE . 1 HUS-576414201
...
13
VALVE . 1 HUS-523077201
...
14
SPRING . 1 HUS-522518701
...
15
LEVER . 1 HUS-522517701
...
17
SCREW . 1 HUS-503481801
...
18
CHOKE VALVE . 1 HUS-504627701
...
19
SHAFT ASSY . 1 HUS-522518301
...
20
SCREW . 1 HUS-502078401
...
21
THROTTLE LEVER . 1 HUS-522517801
...
23
THROTTLE SHAFT . 1 HUS-522518501
...
24
SPRING . 1 HUS-502078701
...
25
COLLAR . 1 HUS-502079801
...
26
STRAINER . 1 HUS-503535701
...
27
PUMP DIAPHRAGM . 1 50 HUS-537383101
...
28
DIAPHRAGM . 1 50 HUS-537403301
...
29
GASKET . 1 50 HUS-537020101
...
30
COVER . 1 HUS-575544301
...
31
E RING . 1 HUS-504026701
...
32
SCREW . 1 HUS-503479001
...
33
CHOKE LEVER . 1 HUS-522517601
...
36
GASKET CARBURETTOR . 1 51 HUS-510413301
...
38
SCREW . 1 HUS-506396601
...
39
SCREW . 1 HUS-522518101
...
41
CLIP . 1 HUS-537385201
...
42
SCREW . 1 HUS-522518001
...
43
INLET . 1 HUS-575544401
...
44
SPRING . 1 HUS-522518601
...
46
THROTTLE FLAP . 1 HUS-537177001
...
47
ROD . 1 HUS-522517901
...
48
SHAFT ASSY . 1 HUS-522518201
...
49
THROTTLE VALVE ASSY . 1 HUS-578227801
...
50
KIT GASKET AND DIAPHRAM B set of gaskets HUS-522518901
...
51
SPARE PARTS KIT . 1 HUS-575380001
...
52
Download from your local supportsite HUS-000000000
