Husqvarna CS2258 (2012-05) Chain Saw

Model: CS2258 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

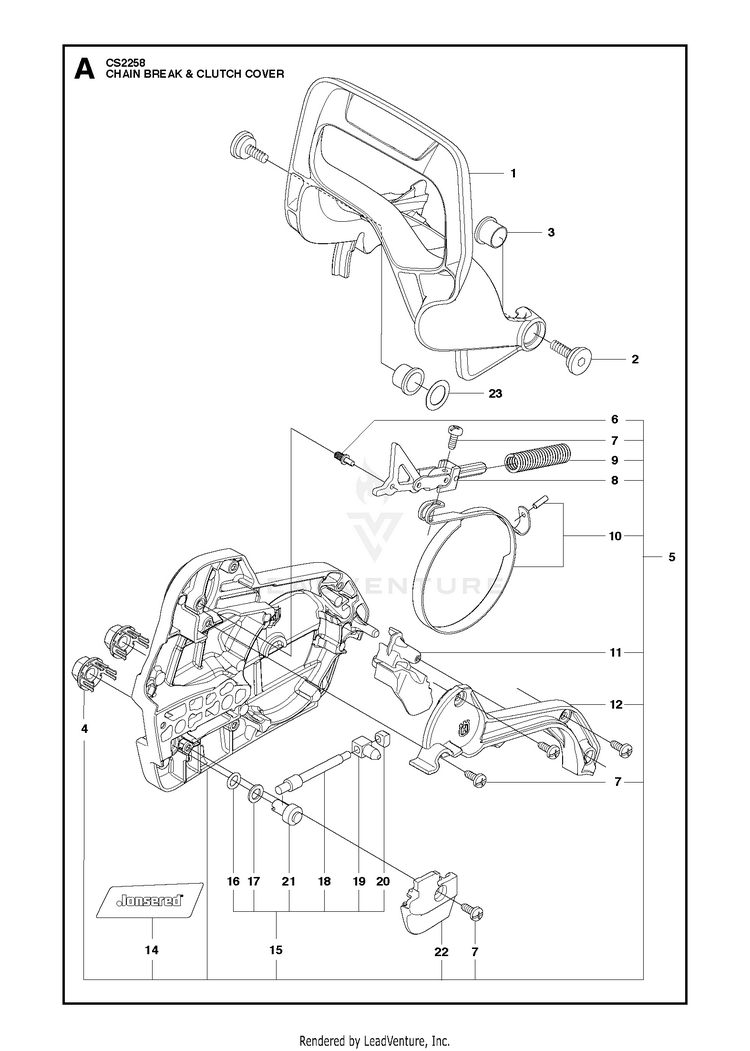

CHAIN BRAKE CLUTCH COVER

...
...
1
HAND GUARD HUS-576871301
...
2
SCREW HUS-537209001
...
3
BUSHING HUS-537202801
...
4
NUT RETAINER ASSY HUS-505197301
...
5
CLUTCH COVER ASSY HUS-577791003
...
6
PIN . 5 HUS-503751801
...
7
SCREW . 5 HUS-503217010
...
8
KNEE JOINT ASSY . 5 HUS-505199301
...
9
SPRING . 5 HUS-503908301
...
10
BRAKE BAND . 5 HUS-505199502
...
11
GUARD . 5 HUS-505201601
...
12
Covers . 5 HUS-505199704
...
14
DECAL JONSERED 60CC CLUTCH COV . 5 HUS-578037501
...
15
CHAIN TENSIONER KIT . 5 HUS-575260404
...
16
O-RING . 15 5 HUS-740480702
...
17
WASHER . 15 5 HUS-503230063
...
18
CHAIN TENSIONER KIT . 15 5 HUS-575260404
...
19
PAWL . 15 5 HUS-537286601
...
20
SLEEVE . 15 5 HUS-537017401
...
21
WORM WHEEL . 15 5 HUS-537079402
...
22
CHAIN GUIDE JONSERED BLACK . 5 HUS-505199802
...
23
WASHER STEEL HUS-503230085
