Husqvarna CPR800A (1999 & Before) Tiller

Model: CPR800A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

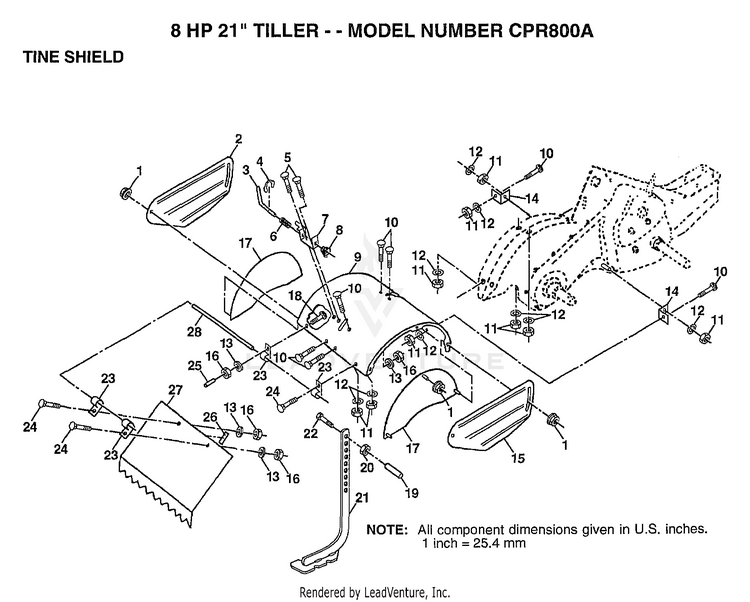

8HP 21" TILLER-TINE SHIELD

...
...
1
NUT HUS-98000129
...
2
SHIELD.SIDE.OUT.L HUS-108711X418
...
3
STAKE PIN TI HUS-8393J
...
4
KLIP RING TI HUS-12000036
...
5
BOLT HUS-72140508
...
6
SPRING TI HUS-8394J
...
7
LATCH BRACKET TI HUS-8392J
...
8
SPRING CRT HUS-109230X
...
9
SHIELD.TINE.GREY HUS-104178X418
...
10
BOLT HUS-72140506
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
LOCKWASHER HUS-10040500
...
13
LOCKWASHER HUS-10040400
...
14
TINE SHLD BRKT TI HUS-8386J
...
15
SHIELD.SIDE.OUT.R HUS-108710X418
...
16
SUB= 50675 HUS-73220400
...
17
SHIELD.SIDE.GREY HUS-104084X418
...
18
BOLT HUS-72040410
...
19
GRIP TI HUS-8389J
...
20
NUT.HEX.3/8-16UNC HUS-73220600
...
21
STAKE.ASM.DEPTH HUS-138420
...
22
BOLT HUS-74930656
...
23
HINGE CRT HUS-4440J
...
24
BOLT.1/4-20X1/2 HUS-72140408
...
25
VINYL CAP TI HUS-6712 J
...
26
PAD IDLER TI HUS-109227X
...
27
SHIELD.LEVEL.GREY HUS-102713X418
...
28
PIN.HINGE HUS-138609
