Husqvarna CPR800A (1999 & Before) Tiller

Model: CPR800A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

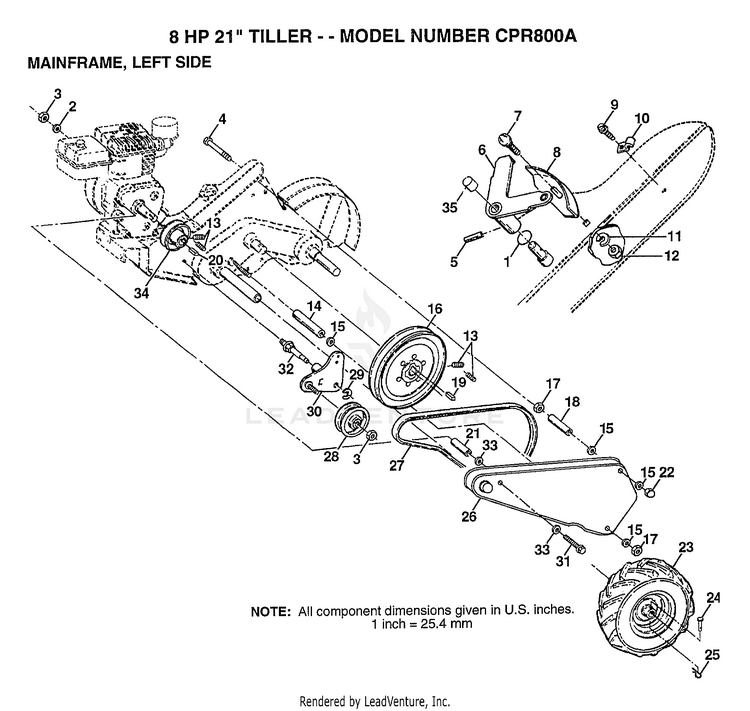

8HP 21" TILLER-MAINFRAME LEFT SIDE

...
...
1
O-RING TI HUS-106160X
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
NUT.HEX.3/8-16UNC HUS-73220600
...
4
BOLT TI HUS-74930572
...
5
SUB= 2882J HUS-1572H
...
6
LEVER ASM CRT HUS-110111X
...
7
BOLT HUS-72110404
...
8
PANEL TI HUS-8700J
...
9
SUB= 750097 HUS-86777
...
10
CONDIUT CLIP T HUS-9484R
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 50675 HUS-73220400
...
13
SET SCREW HUS-23230506
...
14
SPACER TI HUS-8382J
...
15
WASHER HUS-19111116
...
16
"SHEAVE 10"" CRT" HUS-100473M
...
17
NUT.HEX.5/16-18 HUS-73220500
...
18
SPACER TI HUS-8381J
...
19
KEY T HUS-2649M
...
20
KEY TI HUS-4914H
...
21
SPACER.SPLIT HUS-139155
...
22
NUT TI HUS-104214X
...
23
TIRE TI HUS-5015J
...
23
RIM.16X4X8.WHT HUS-138417
...
23
SUB= 65139 HUS-795R
...
24
RIVET.PAN HD.1.75 HUS-4929H
...
25
SPRING.RETAINER HUS-4921H
...
26
GUARD.BELT.GREY HUS-102818X418
...
27
BELT.DRIVE HUS-138399
...
28
SUB= 4371J HUS-104680X
...
29
KLIP RING HUS-12000032
...
30
SUB= 918105611X HUS-105611X
...
31
BOLT1/2-20UNF2.75 HUS-74770844
...
32
SHAFT.IDLER HUS-139401
...
33
WASHER HUS-19171616
...
34
SHEAVE CRT HUS-4368J
...
35
CAP PLUNGER BLACK HUS-140062
