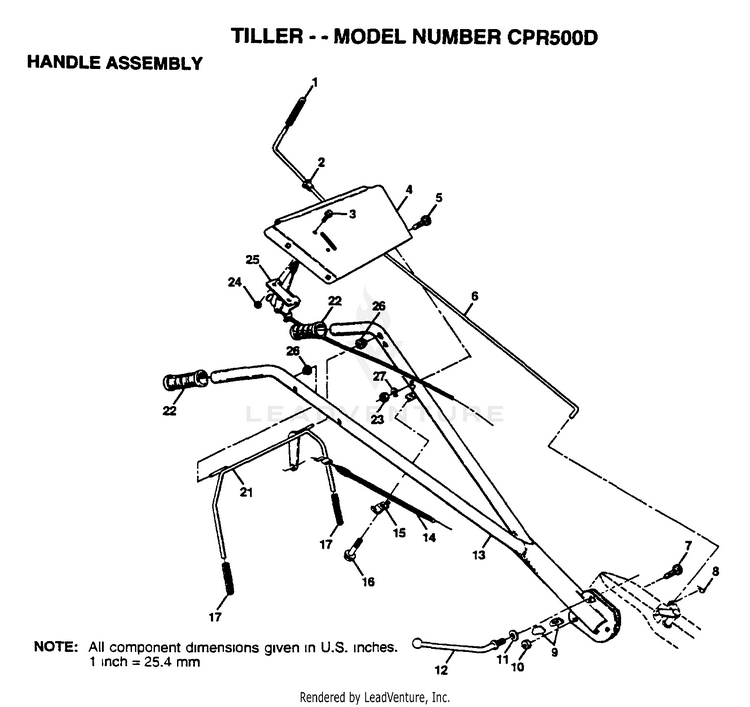

Husqvarna CPR500D (1995) Tiller

Model: CPR500D (1995)

Back To Assemblies

Save Part Not Listed?
product name

HANDLE

...
...
1
GRIP TI HUS-8389J
...
2
BUSHING HUS-121248X
...
3
SCREW HUS-71091008
...
4
SUB= 126949X500 HUS-126949X419
...
5
BOLT CARRIAGE CRT HUS-72110514
...
6
ROD SHIFT CRT HUS-108281X
...
7
BOLT D HUS-72110608
...
8
RETAINER M HUS-4497H
...
9
LOCK CRT HUS-109229X
...
10
LOCKNUT HUS-73930600
...
11
WASHER CRT HUS-19131611
...
12
LEVER LOCK CRT HUS-109228X
...
13
HANDLE HUS-121566X
...
14
CABLE.CLUTCH.CRT HUS-102162X
...
15
CONDIUT CLIP T HUS-9484R
...
16
SUB= 750097 HUS-86777
...
17
GRIP BAR CRT HUS-102604X
...
21
HANDLE BAR CRT HUS-108276X
...
22
GRIP HDLE NUBBED HUS-140526
...
23
NUT HUS-73800500
...
24
NUT HUS-73731000
...
25
"CONT,THROTTLE" HUS-127012X
...
26
SUB= 146480 HUS-5420J
...
27
LOCKWASHER HUS-10040500
