Husqvarna CPR500A (1999 & Before) Tiller

Model: CPR500A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

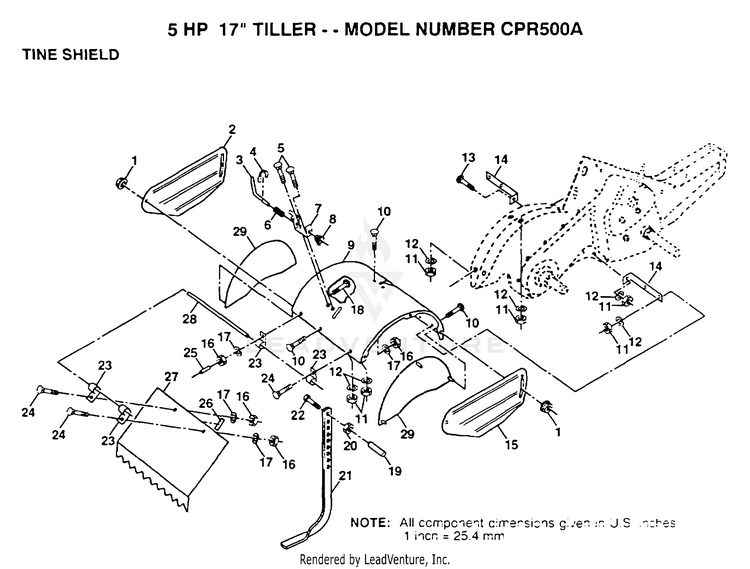

TINE SHIELD

...
...
1
NUT HUS-98000129
...
2
SUB= 104086X417 HUS-104086X
...
3
STAKE PIN TI HUS-8393J
...
4
KLIP RING TI HUS-12000036
...
5
BOLT CRT HUS-72110508
...
6
SPRING TI HUS-8394J
...
7
LATCH BRACKET TI HUS-8392J
...
8
SPRING CRT HUS-109230X
...
9
"SHIELD,TINE" HUS-102326X418
...
10
BOLT HUS-72140506
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
LOCKWASHER HUS-10040500
...
13
BOLT HUS-72110510
...
14
BRKT SHIELD TINE HUS-124343X
...
15
SUB= 104101X417 HUS-104101X
...
16
SUB= 50675 HUS-73220400
...
17
LOCKWASHER HUS-10040400
...
18
BOLT HUS-72040410
...
19
GRIP CRT HUS-102701X
...
20
NUT.HEX.3/8-16UNC HUS-73220600
...
21
SUB= 102156X500 HUS-102156X
...
22
BOLT HUS-74930632
...
23
HINGE CRT HUS-4440J
...
24
BOLT HUS-72140404
...
25
VINYL CAP TI HUS-6712 J
...
26
PAD IDLER TI HUS-109227X
...
27
"SHIELD,LEVELING" HUS-102695X418
...
28
PIN HINGE HUS-120588X
...
29
"SHEILD,SIDE" HUS-104085X418
...
xx
DECAL TI HUS-120075X
...
xx
DECAL, LOGO HUS-135992
