Husqvarna CPF500E (1995) Tiller

Model: CPF500E (1995)

Save Part Not Listed?
product name

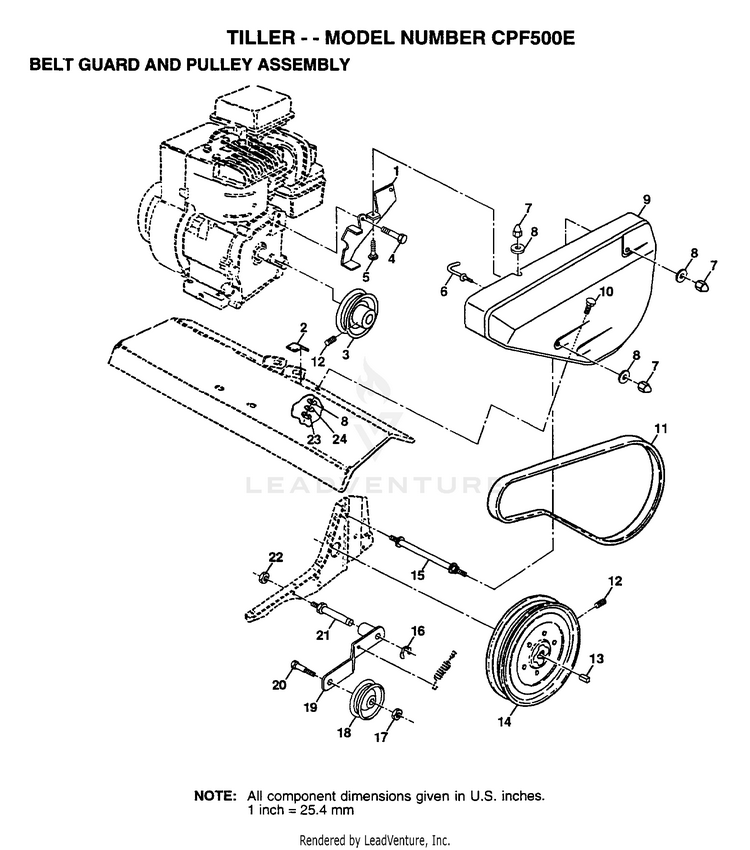

BELT GUARD AND PULLEY

...
...
1
SUB= 159233 HUS-121313X
...
2
PAD IDLER TI HUS-109227X
...
3
ENGINE PULLEY HUS-130812
...
4
SCREW HUS-74770812
...
5
BOLT HUS-72140404
...
6
KEEPER BELT HUS-121463X
...
7
NUT-CAP TI HUS-104213X
...
8
WASHER HUS-19091016
...
9
GUARD.BELT HUS-131158X418
...
10
BOLT T HUS-72140405
...
11
V BELT STD HUS-9180R
...
12
SET SCREW HUS-23230506
...
13
KEY T HUS-2649M
...
14
TRANS SHEAVE RT HUS-9175R
...
15
BOLT TI HUS-110528X
...
16
KLIP RING TI HUS-12000036
...
17
NUT HUS-73350600
...
18
SUB= 75673 HUS-9178R
...
19
IDLER ARM TI HUS-674A30
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
SHAFT IDLER TI HUS-106968X
...
22
JAM NUT TI HUS-73350500
...
23
SUB= 50675 HUS-73220400
...
24
LOCKWASHER HUS-10040400

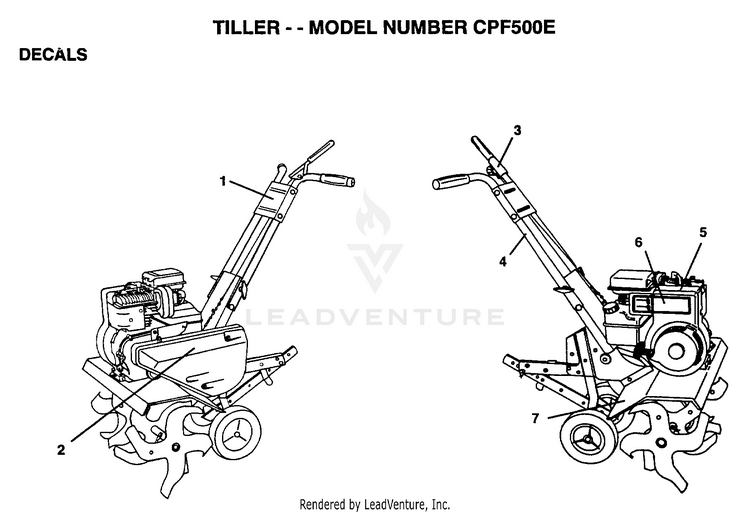

DECALS

...
...
1
NLA HUS-135987
...
2
NLA HUS-135990
...
3
DECAL TI HUS-110594X
...
4
DECAL TI HUS-120431X
...
5
SUB= 121858X HUS-110593X
...
6
DECAL, BRIGGS & STRATTON HUS-271948
...
7
DECAL TI HUS-120075X
...
xx
MANUAL.CPF500E. HUS-147759

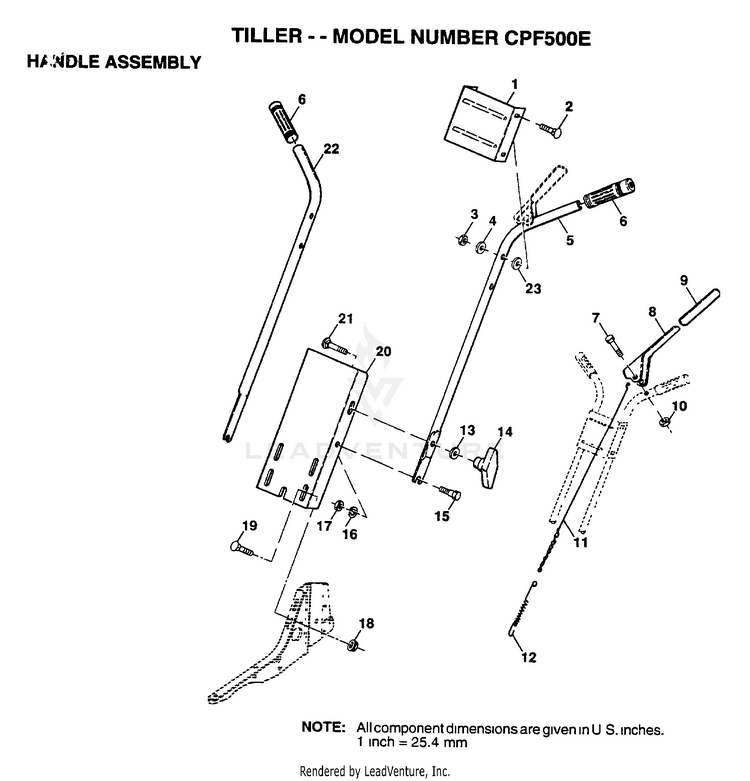

HANDLE

...
...
1
BRACKET.HANDLE HUS-137176X418
...
2
BOLT HUS-72140512
...
3
SUB= 73690500 HUS-73680500
...
4
WASHER HUS-19111116
...
5
SUB= 154127 HUS-2621J500
...
6
GRIP NUB DOUBLE HUS-140536
...
7
BOLT.HEX.5/16-1.5 HUS-74760524
...
8
SUB= 164937 HUS-3069J
...
9
GRIP T HUS-8206H
...
10
SUB= 68478 HUS-1685H
...
11
SUB= 100382K HUS-3067J
...
12
SPRING EXT TI HUS-3070J
...
13
WASHER HUS-19121414
...
14
KNOB HANDLE HUS-136376
...
15
BOLT CT HUS-471J
...
16
LOCKWASHER HUS-10040500
...
17
NUT.HEX.5/16-18 HUS-73220500
...
18
NUT HUS-98000129
...
19
BOLT HUS-72140506
...
20
PANEL.HANDLE HUS-9209R418
...
21
BOLT CRT HUS-72110508
...
22
SUB= 159764 HUS-2622J500
...
23
WASHER HUS-19131312

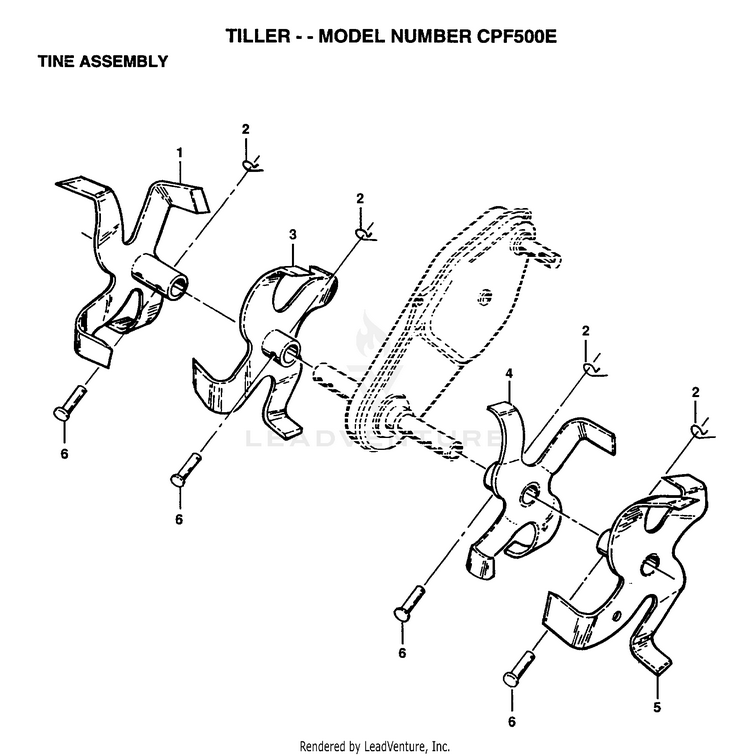

TINE

...
...
1
TINE WELDMENT TI HUS-100746M
...
2
RETAINER.SPRING HUS-3146R
...
3
TINE TI HUS-674A43
...
4
TINE TI HUS-674A42
...
5
TINE WELDMENT TI HUS-100744M
...
6
RIVET.PAN HD.1.75 HUS-4929H

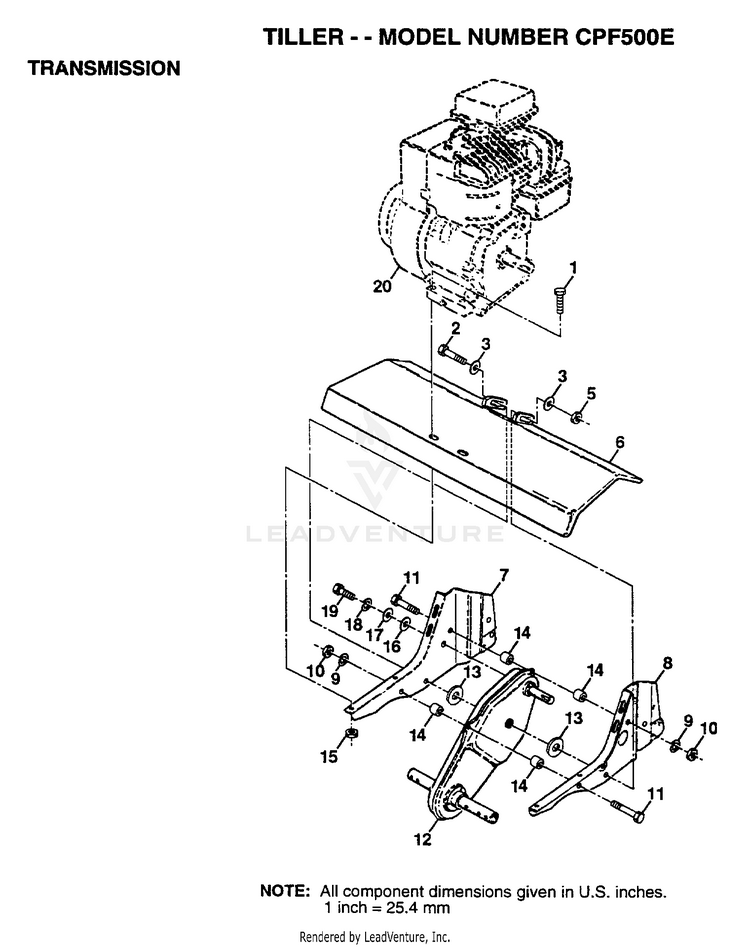

TRANSMISSION

...
...
1
BOLT.HEX.5/16-1.5 HUS-74760524
...
2
BOLT HEX 3/8-16 HUS-74780652
...
3
WASHER HUS-19131311
...
5
NUT HUS-73800600
...
6
NLA HUS-9057R418
...
7
SUB= 9181949J500 HUS-1949J500
...
8
SUB= 110519X HUS-110519X500
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
SUB= 74780544 HUS-74760544
...
12
SUB= 532126669 HUS-126669X
...
13
WASHER HUS-19171616
...
14
SPLIT SPACER RT HUS-9173R
...
15
NUT HUS-73510500
...
16
WASHER HUS-19091412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
BOLT HUS-74610412

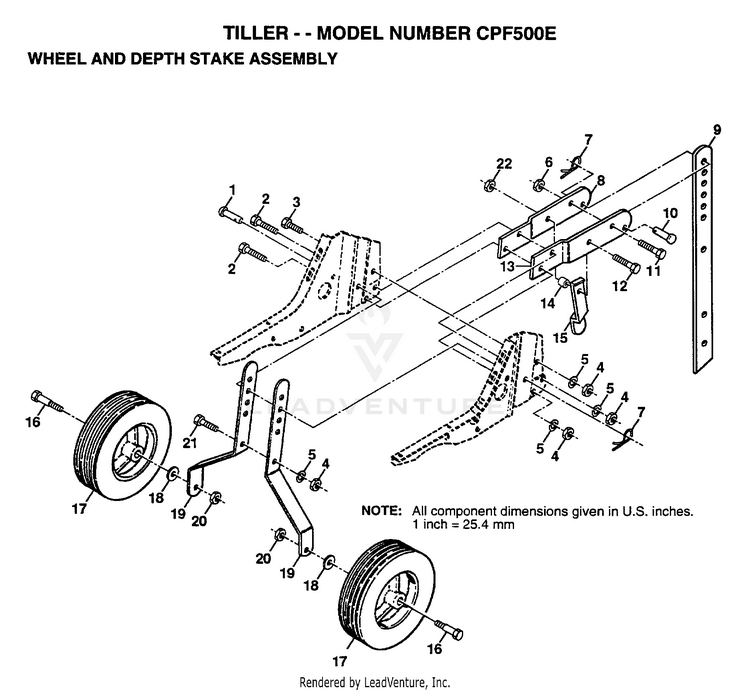

WHEEL AND DEPTH STAKE

...
...
1
DRILLED RIVET RT HUS-9194R
...
2
BOLT HUS-74760520
...
3
BOLT HUS-74760512
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
LOCKWASHER HUS-10040500
...
6
NUT HUS-73800600
...
7
SPRING.RETAINER HUS-4921H
...
8
SUPPORT STAKE RH HUS-1952J500
...
9
SUB= 2582J HUS-122233X
...
10
SUB= 4929H HUS-326J
...
11
BOLT HUS-74780628
...
12
BOLT.HEX.5/16-1.5 HUS-74760524
...
13
SUPPORT STAKE LH HUS-1951J500
...
14
WASHER HUS-120958X
...
15
STAKE SPRING TI HUS-5388J
...
16
BOLT SHOULDER HUS-121117X
...
17
SUB= 107644X HUS-9188R
...
18
WASHER HUS-19131311
...
19
BRACKET.WHL.PNT. HUS-9190R500
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 77394 HUS-74760516
...
22
NUT HUS-73800500
