Husqvarna CPF500D (1999 & Before) Tiller

Model: CPF500D (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

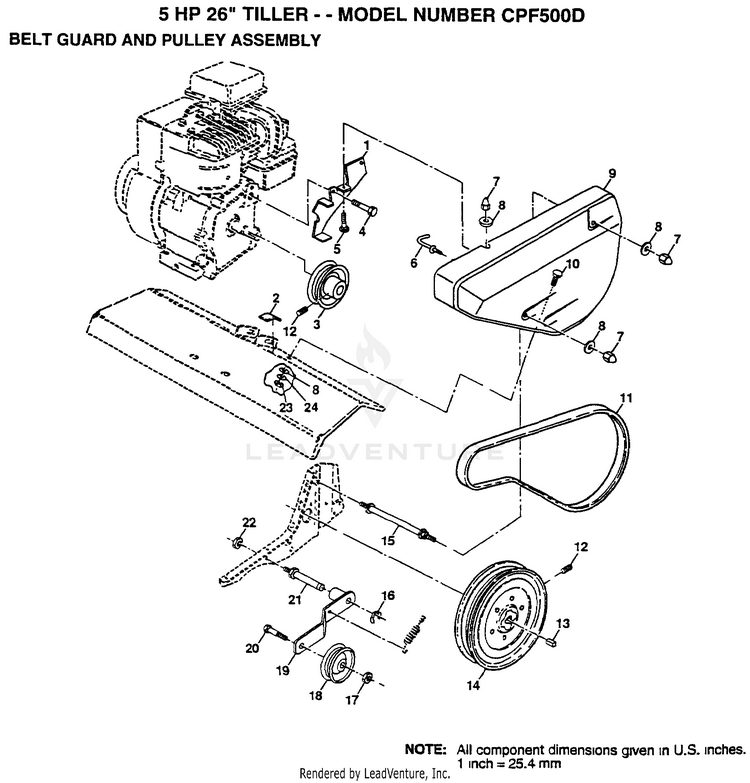

BELT GUARD AND PULLEY

...
...
1
SUB= 159233 HUS-121313X
...
2
PAD IDLER TI HUS-109227X
...
3
ENGINE PULLEY HUS-130812
...
4
SCREW HUS-74770812
...
5
BOLT HUS-72140404
...
6
KEEPER BELT HUS-121463X
...
7
NUT-CAP TI HUS-104213X
...
8
WASHER HUS-19091016
...
9
GUARD.BELT HUS-131158X418
...
10
BOLT T HUS-72140405
...
11
V BELT STD HUS-9180R
...
12
SET SCREW HUS-23230506
...
13
KEY T HUS-2649M
...
14
TRANS SHEAVE RT HUS-9175R
...
15
BOLT TI HUS-110528X
...
16
KLIP RING TI HUS-12000036
...
17
NUT HUS-73350600
...
18
SUB= 75673 HUS-9178R
...
19
IDLER ARM TI HUS-674A30
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
SHAFT IDLER TI HUS-106968X
...
22
JAM NUT TI HUS-73350500
...
23
SUB= 50675 HUS-73220400
...
24
LOCKWASHER HUS-10040400
