product name

Husqvarna CP2050A (1993) Tractor

Model: CP2050A (1993)

Back To Assemblies

Save Part Not Listed?
product name

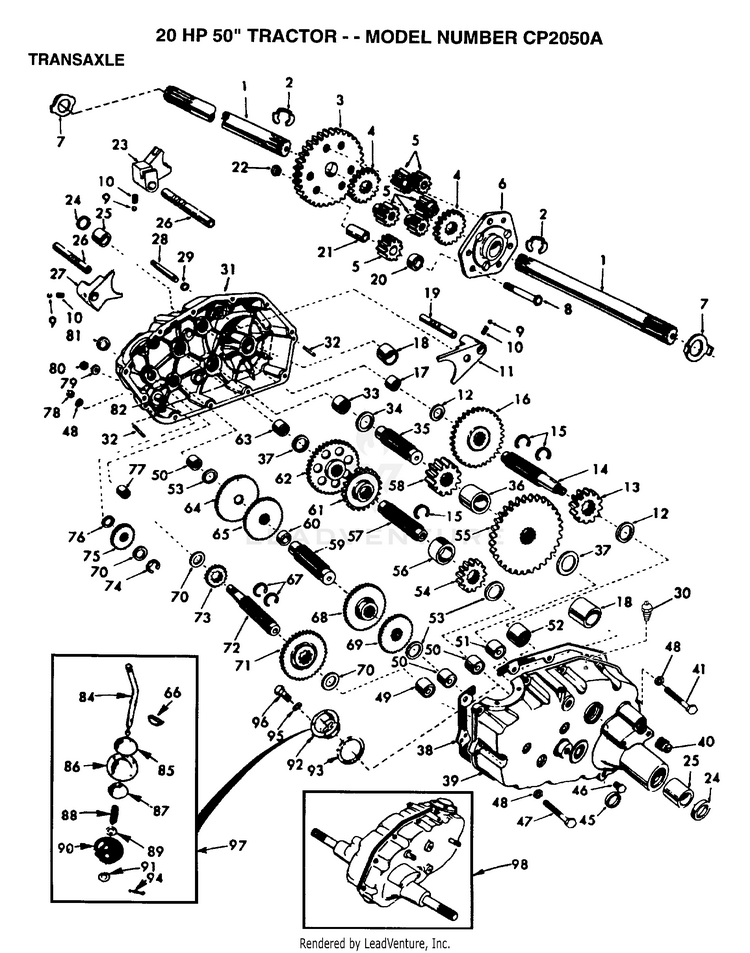

TRANSAXLE

...
...
1
SHAFT.AXLE.T HUS-4197R
...
2
KLIP RING HUS-12000034
...
3
FINAL GEAR T HUS-4199R
...
4
DIFF GEAR T HUS-4216R
...
5
DIFF PINION T HUS-4215R
...
6
DIFF CARRIER T HUS-4217R
...
7
WASHER T HUS-6256H
...
8
BOLT HUS-74020652
...
9
SUB= 100482K HUS-7392M
...
10
SUB= 145359 HUS-137261
...
11
SHIFT FORK T HUS-4985R
...
12
WASHER .T HUS-6266H
...
13
RED PINION T HUS-4212R
...
14
GEAR SHAFT T HUS-4196R
...
15
SNAP RING T HUS-6276H
...
16
GEAR T HUS-633A63
...
17
"T, BEARING" HUS-8118M
...
18
BEARING HUS-8740H1
...
19
SHAFT HUS-122238X
...
20
SPACER T HUS-4218R
...
21
PINION RS HUS-6252H1
...
22
GRIPCO NUT HUS-7810H
...
23
FORK T HUS-6262H
...
24
OIL SEAL STD HUS-7393R
...
25
BRNG. T HUS-992R1
...
26
SHAFT T HUS-6216H
...
27
SHIFT FORK T HUS-4986R
...
28
SHIFT SHAFT HUS-122254X
...
29
SEAL T HUS-6269H
...
30
VALVE M HUS-5855H
...
31
SUB= 532137976 HUS-137976
...
32
PIN T HUS-6277H
...
33
NEEDLE BRNG T HUS-4225R
...
34
RACE T HUS-7396H
...
35
GEAR SHAFT T HUS-4198R
...
36
SUB= 532004200 HUS-4200R
...
37
RACE T HUS-7395H
...
38
GASKET HUS-121878X
...
39
SUB= 532137974 HUS-137974
...
40
PLUG PIPE HUS-13320400
...
41
BOLT HUS-74780526
...
45
SEAL T HUS-6271H
...
46
SUB= 13020200 HUS-13060200
...
47
HEX BOLT HUS-74780524
...
48
LOCKWASHER HUS-10040500
...
49
"TI, BEARING" HUS-4895H
...
50
NEEDLE BRNG T HUS-4222R
...
51
NEEDLE BRNG T HUS-1529R
...
52
"STD, BEARING" HUS-8119M
...
53
BRNG RACE HUS-4220R
...
54
RED PINION T HUS-4209R
...
55
RED GEAR T HUS-4213R
...
56
PINION SPACER T HUS-4442R
...
57
GEAR SHAFT T HUS-4195R
...
58
FINAL PINION T HUS-4214R
...
59
GEAR SHAFT T HUS-4194R
...
60
SPACER T HUS-7528R
...
61
RED PINION T HUS-4208R
...
62
RED GEAR T HUS-4207R
...
63
RACE T HUS-7398H
...
64
LOW SPEED GEA T HUS-4203R
...
65
REVERSE GEAR T HUS-4204R
...
66
KEY T HUS-2898J
...
67
RING STD HUS-4926H
...
68
INTERMED GEAR T HUS-4205R
...
69
SUB= 532004206 HUS-4206R
...
70
"T, BEARING" HUS-1370H
...
71
CLUSTER GEAR T HUS-633A69
...
72
INPUT SHAFT T HUS-208J
...
73
LO SPEED PINION T HUS-4201R
...
74
SUB= 2225J HUS-12000002
...
75
IDLER GEAR T HUS-1153R
...
76
RACE T HUS-7395H
...
77
BRNG T HUS-3990H
...
78
NUT.HEX.5/16-18 HUS-73220500
...
79
WASHER T HUS-1167R
...
80
NUT HUS-73360700
...
81
SEAL STD HUS-6270H
...
82
SHAFT T HUS-7384H
...
84
GEAR SHIFT LVR T HUS-5384J
...
85
CAP T HUS-2978J
...
86
COVER AND PIN T HUS-633A85
...
87
GUIDE BALL T HUS-8739H1
...
88
SPRING TI HUS-4924H
...
89
WASHER HUS-19151516
...
90
SEAL T HUS-110542X
...
91
WASHER HUS-19181511
...
92
GEAR SHIFT GA T HUS-75J
...
93
GASKET T HUS-6274H
...
94
COTTER PIN HUS-76020412
...
95
LOCKWASHER HUS-10040500
...
96
BOLT HUS-74760514
...
97
GEAR SHFT LVR T HUS-633A109
...
98
SUB= 137982 HUS-137973
