Husqvarna CP2050A (1993) Tractor

Model: CP2050A (1993)

Back To Assemblies

Save Part Not Listed?
product name

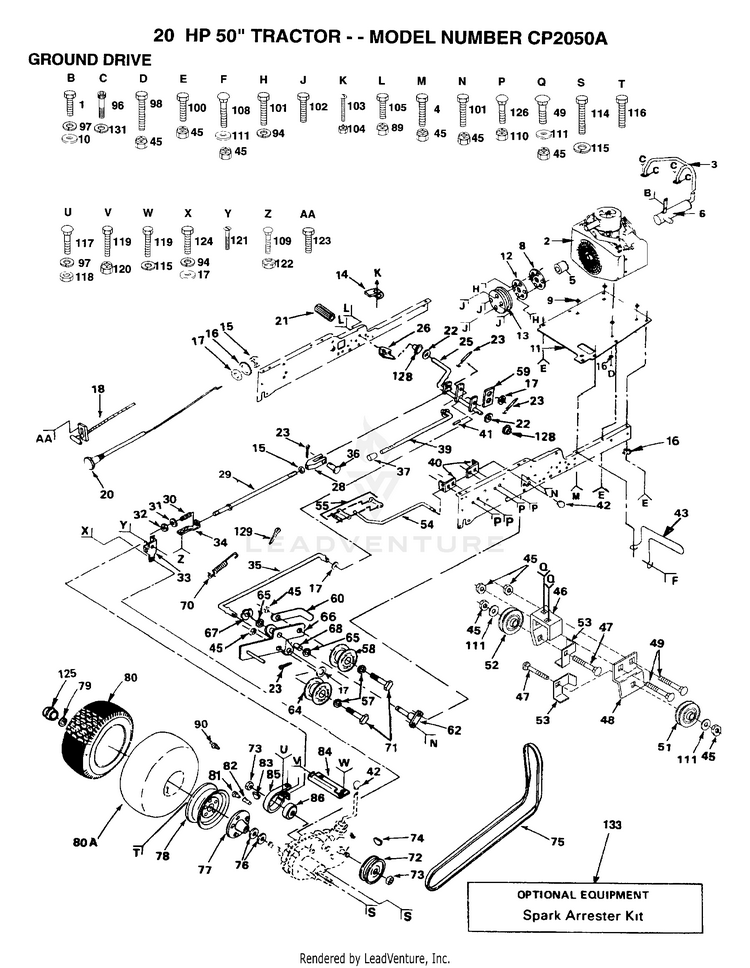

GROUND DRIVE

...
...
1
SUB= 74780414 HUS-74780412
...
3
EXHAUST TUBE T HUS-110891X
...
4
"BOLT,HEX" HUS-74780624
...
5
SUB= 532137423 HUS-137423
...
6
MUFFLER EXHAUST HUS-127881
...
8
CHAFF GUARD T HUS-110947X
...
9
SPACER.ENGINE KOH HUS-133692
...
10
WASHER HUS-19091212
...
11
"ENG. T, BASE" HUS-110867X
...
12
ADAPTER T HUS-104577X
...
13
SUB= 101343L HUS-121355X
...
14
ACT-SWITCH T HUS-5304J
...
15
SUB= 7810H HUS-73610600
...
16
LOCKWASHER HUS-11050600
...
17
WASHER HUS-19131316
...
18
SUB= 532132746 HUS-132746
...
20
SUB= 532132780 HUS-132780
...
21
PEDAL COVER T HUS-8883R
...
22
WASHER HUS-121749X
...
23
SUB= 3145 HUS-76020312
...
25
SHAFT ASSY GT HUS-104375X
...
26
BRKT SWITCH GT HUS-104601X
...
28
YOKE GTV HUS-100604K
...
29
BRAKE ROD T HUS-5308J
...
30
SPRING T HUS-7241J
...
31
WASHER HUS-19131614
...
32
SUB= 7810H HUS-73530600
...
33
BRAKE BRKT ASSY T HUS-677A637
...
34
GUIDE ROD T HUS-7229J
...
35
ROD CLUTCH GTV HUS-101356L
...
36
CLEVIS PIN T HUS-5102J
...
37
PLUNGER CAP T HUS-71673
...
39
BRAKE ROD HUS-136284
...
40
ROD BRACKET GT HUS-105598X
...
41
ROLL PIN STD HUS-5142H
...
42
KNOB HUS-121466X
...
43
GUARD MUFFLER HYT HUS-108885X
...
45
SUB= 73690600 HUS-73680600
...
46
SUB= 139995 HUS-121063X
...
47
BOLT HUS-72110614
...
48
BRKT IDLER FLAT HUS-122825X
...
49
BOLT HUS-72140606
...
51
IDLER-FLAT T HUS-102403X
...
52
PULLEY V IDLR GTV HUS-101344L
...
53
GUARD BELT HUS-122824X
...
54
ROD SHIFT HI LO HUS-122253X
...
55
CONNECTING LINK HUS-122268X
...
57
WASHER HUS-19131413
...
59
RETAINER SPRING HUS-121358X
...
60
RETAINER BELT HUS-121360X
...
62
BRACKET ASSY GTV HUS-101358K
...
64
SUB= 139123 HUS-121361X
...
65
WASHER T HUS-207J
...
66
BRACKET CLUTCH HUS-121356X
...
67
KLIP RING HUS-12000039
...
68
"LY, BEARING" HUS-105706X
...
70
SPRING EXT CLUTCH HUS-121357X
...
71
BOLT HUS-74760628
...
72
SUB= 532137524 HUS-137524
...
73
SUB= 7838R HUS-7204H
...
74
KEY HUS-9858M1
...
75
BELT-V.98.5.GD.DV HUS-110883X
...
76
WASHER T HUS-7563R
...
77
BUSHING ASSEMBLY AND WHEEL HUB HUS-135759
...
78
SUB= 106277X417 HUS-106277X361
...
79
KLIP RING HUS-12000034
...
80
SUB= 122077X HUS-105588X
...
80A
TUBE.23X8/10-12 HUS-7154J
...
81
VALVE CAP HUS-59192
...
82
VALVE STEM LT HUS-65139
...
83
SUB= 2228M1 HUS-2228M
...
84
SUB= 156404 HUS-120404X
...
85
BRAKE BAND ASM HUS-101122M
...
86
BRAKE DRUM T HUS-214J
...
89
NUT HUS-73800400
...
90
ZERK FITTING M HUS-6856M
...
94
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
96
SCREW HUS-74570512
...
97
LOCKWASHER HUS-10040400
...
98
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
100
SUB= 74780612 HUS-74760612
...
101
BOLT HUS-74780616
...
102
SCREW HUS-17190516
...
103
SCREW HUS-74321016
...
104
SUB= 69180 HUS-73631000
...
105
BOLT LT HUS-74760412
...
108
BOLT.3/8-14X1.25 HUS-72140610
...
109
SUB= 72270506 HUS-72110506
...
110
SUB= 73690500 HUS-73680500
...
111
WASHER GT HUS-19131612
...
114
BOLT HUS-74760720
...
115
LOCKWASHER HUS-10040700
...
116
SUB= 140080 HUS-1304H
...
117
BOLT T HUS-72140405
...
118
SUB= 50675 HUS-73220400
...
119
BOLT HUS-74760716
...
120
NUT GTV HUS-73680700
...
121
SCREW HUS-74370612
...
122
SUB= 68478 HUS-1685H
...
123
SCREW LT HUS-17720410
...
124
SUB= 74760616 HUS-74760614
...
125
"COVER, HUB" HUS-136327
...
126
BOLT HUS-72140506
...
128
NYLINER T HUS-110895X
...
129
COTTER PIN HUS-76020816
...
131
LOCKWASHER HUS-10170500
...
133
SPARK ARREST KIT HUS-132922
