product name

Husqvarna CP18H42A (1995) Tractor

Model: CP18H42A (1995)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

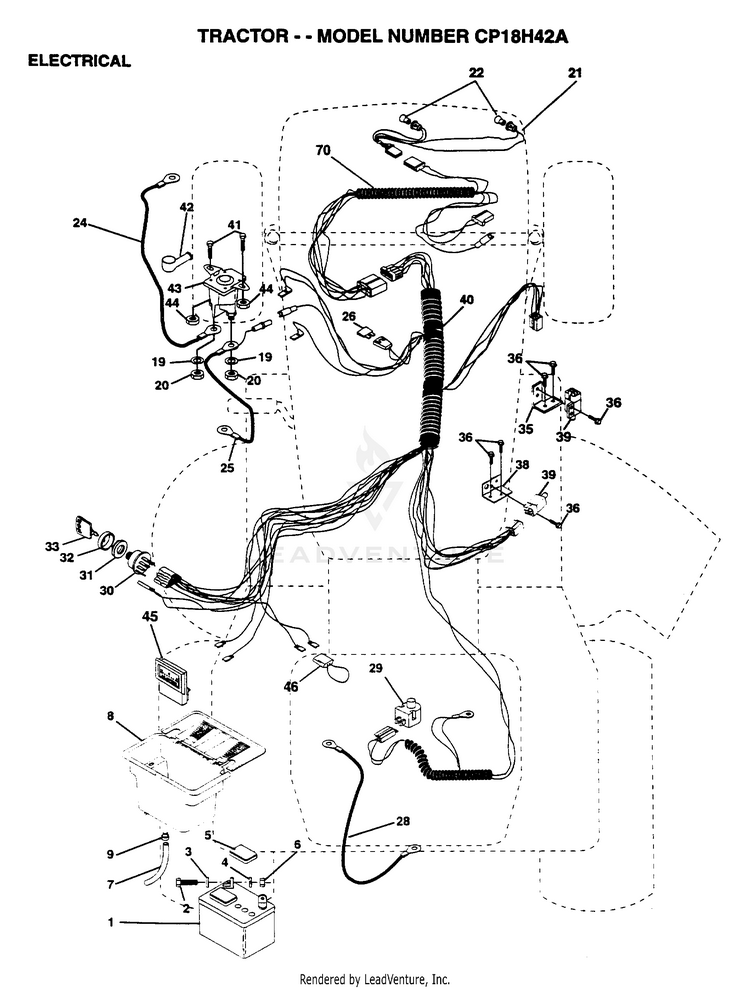

ELECTRICAL

...
...
1
SUB= 123899X PLN-121537X

...
2

...
3

...
4
LOCKWASHER PLN-10040400

...
5
"CAP,BATTERY " PLN-121264X

...
6
SUB= 50675 PLN-73220400

...
7

...
8
SUB= 156417 PLN-144940

...
9
HOSE CLAMP T PLN-109596X

...
19
SUB= 10040400 PLN-10090400


...
21
"HARNESS,LIGHT SOC" PLN-136850

...
22
HEADLAMP BULB PLN-4152J

...
24
CABLE-BATTERY T PLN-4206J

...
25
CABLE.BTRY.6GA.RD PLN-146147

...
26
FUSE HYT PLN-108824X

...
28
CABLE T PLN-4207J

...
29
SWITCH SEAT PLN-121305X

...
30
SWITCH IGN 4POS PLN-140301

...
31
NUT IGNITION PLN-124211X

...
32
COVER KEY SWITCH PLN-141226

...

...
35
BRACKET LT PLN-108236X

...
36

...
38
BRACKET SWITCH IN PLN-140336

...
39
SWITCH INTERLOCKT PLN-109553X

...
40
SUB= 151212 PLN-146058

...
41
BOLT.HX.1/4-20 PLN-71110412

...
42
SUB= 154336 PLN-131563

...
43
SUB= 146154 PLN-145673


...
45
SUB= 122822X PLN-121433X

...
46
PROTECTION LOOP PLN-141940

...
70
HARNESS.ENG.LT. PLN-140712
...
...
...
