Husqvarna CP18H42A (1995) Tractor

Model: CP18H42A (1995)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

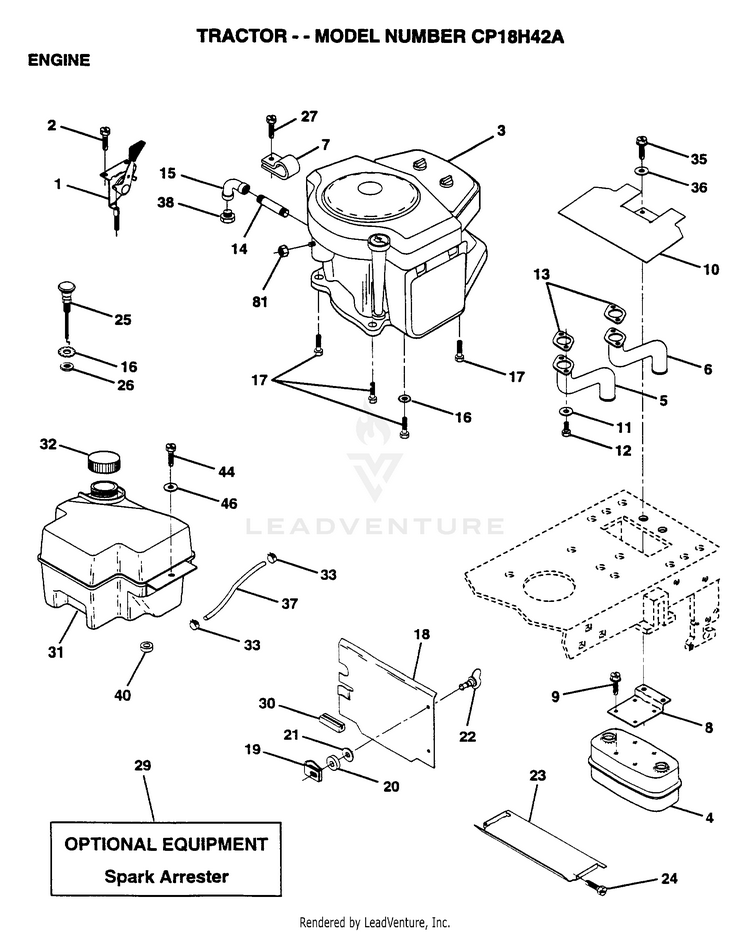

ENGINE

...
...
1
CONTROL THRT 35.5 PLN-141295
...
2
SCREW LT PLN-17720410
...
3
ENGINE B&S 18HP PLN-422707
...
4
SUB= 149723 PLN-137978
...
5
EXHAUST.B&S.18.LH PLN-144069
...
6
EXHAUST.B&S.18.RH PLN-144068
...
7
CLAMP.TUBE.DBL.EN PLN-138129
...
8
BRACKET MUFFLER PLN-122439X
...
9
SCREW ST PLN-17190408
...
10
SHIELD.HEAT. PLN-145552
...
11
LOCKWASHER PLN-10040400
...
12
SUB= 74780414 PLN-74780412
...
13
SUB= 272250 PLN-8545J
...
14
PIPE NIPPLE LT PLN-13280336
...
15
ELBOW PLN-13200300
...
16
LOCKWASHER PLN-11050600
...
17
SCREW LT PLN-17490624
...
18
SHIELD HEAT PLN-136718
...
19
RECEPTACLE LT PLN-105839X
...
20
RETAINER LT PLN-105838X
...
21
WASHER PLN-19091016
...
22
STUD.1/4.TURN PLN-123650X
...
23
SUB= 128953 PLN-128953X
...
24
SCREW PLN-17021008
...
25
CONTROL CHOKE PLN-145596
...
26
SUB= 7810H PLN-73610600
...
27
SCREW.10-24X1/2 PLN-17541008
...
29
SUB= 532137180 PLN-137180
...
30
SUB= 532127057 PLN-127057X
...
31
SUB= 161911 PLN-140280
...
32
CAP ASM FUEL PLN-140527
...
33
HOSE CLAMP PLN-123487X
...
35
SCREW PLN-17490512
...
36
WASHER PLN-19132012
...
37
LINE FUEL PLN-137040
...
40
SUB= 532124028 PLN-124028X
...
44
SCREW HEX CRT PLN-17490412
...
46
WASHER PLN-19091416
...
81
NUT PLN-73510400
...
...
...
