Husqvarna CP1842A (1992) Tractor

Model: CP1842A (1992)

Back To Assemblies

Save Part Not Listed?
product name

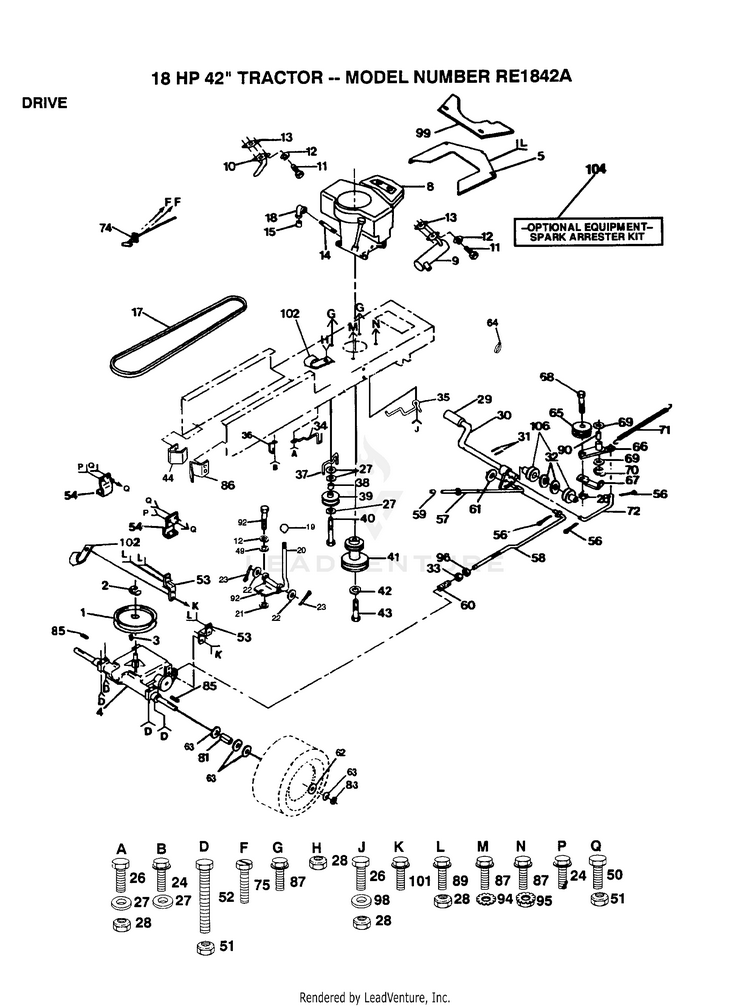

DRIVE

...
...
1
PULLEY TRANS HUS-123666X
...
2
SUB= 2267J HUS-12000028
...
3
SUB= 2228M1 HUS-2228M
...
4
SUB= 137367 HUS-120898X
...
5
SHIELD HEAT FRT HUS-123190X
...
9
MUFFLER HUS-134700
...
10
PREMMUFFLER HUS-122379X
...
11
SUB= 74780414 HUS-74780412
...
12
LOCKWASHER HUS-10040400
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
17
SUB= 138255 HUS-130801
...
18
STREET ELBOW LT HUS-13240300
...
19
KNOB T (1/2-HOLE) HUS-106933X
...
20
SHIFT ROD HUS-131679
...
21
WASH-SHFT PLT LT HUS-105701X
...
22
WASHER HUS-19151216
...
23
PIN COTTER 1/8 HUS-76020416
...
24
SCREW HUS-17490612
...
26
BOLT HUS-74760616
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
SUB= 149001 HUS-122424X
...
31
SUB= 2882J HUS-1572H
...
32
WASHER LT HUS-19211616
...
33
NUT HUS-73800600
...
34
KEEPER.BELT.ENG.L HUS-129921
...
35
KEEPER BELT ENG HUS-134683
...
36
SUB= 140312 HUS-104777X
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
PULLEY.IDLER.FLAT HUS-123674X
...
40
BOLT HUS-74760644
...
41
SUB= 136004 HUS-134825
...
42
LOCKWASHER HUS-10040700
...
43
BOLT HUS-71170764
...
44
"KEEPER,BELT LH T" HUS-127275X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER LT HUS-19091210
...
50
BOLT HUS-74760512
...
51
SUB= 73690500 HUS-73680500
...
52
BOLT HUS-74760540
...
53
STRAP TORQUE HUS-121520X
...
54
TRANSAXLE MTG BKT HUS-130807
...
56
COTTER PIN HUS-76020412
...
57
BRAKE PARK ROD HUS-133261
...
58
BRAKE ROD HUS-130804
...
59
PLUNGER CAP T HUS-71673
...
60
SPRING ROD LT HUS-106888X
...
61
WASHER HUS-19131316
...
62
WASHER HUS-121748X
...
63
WASHER HUS-121749X
...
64
MUFFLER CLAMP HUS-122758X
...
65
SUB= 139245 HUS-127783
...
66
ARM IDLER HUS-123789X
...
67
RETAIN BELT HUS-123205X
...
68
SUB= 74930624 HUS-74760624
...
69
WASHER LT HUS-110812X
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
72
"LINK, CLUTCH T" HUS-105710X
...
74
SUB= 133439 HUS-132773
...
75
SCREW LT HUS-17720410
...
81
SPACER LT HUS-109502X
...
83
E-RING LT HUS-12000001
...
85
SQUARE KEY HUS-123583X
...
86
"KEEPER,BELT RH T" HUS-127274X
...
87
SCREW LT HUS-17490624
...
89
SUB= 74780612 HUS-74760612
...
90
"LY, BEARING" HUS-105706X
...
92
SUB= 162240 HUS-130802
...
94
LOCKWASHER HUS-11050600
...
95
NUT HUS-73510600
...
96
NUT HUS-73350600
...
98
WASHER HUS-19132012
...
99
REAR BAFFLE T HUS-109740X
...
101
SCREW HUS-17490512
...
102
CLIP T HUS-2751R
...
104
SPARK ARREST KIT HUS-132922
...
105
SUB= 146682 HUS-110422X
...
106
NYLON BEARING HUS-120183X
