Husqvarna CP1842A (1992) Tractor

Model: CP1842A (1992)

Back To Assemblies

Save Part Not Listed?
product name

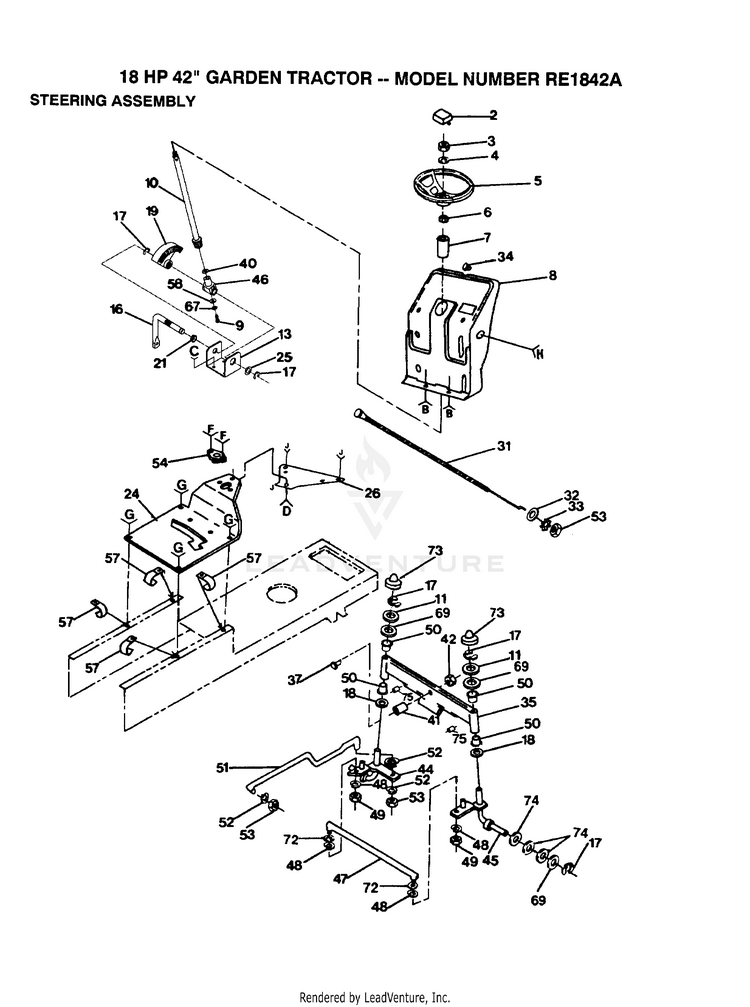

STEERING

...
...
2
ST WHL INSERT CAP HUS-133742
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150547 HUS-133741
...
6
ADAPTER LT HUS-100711L
...
7
SLEEVE LTV HUS-100714L
...
8
DASH HUS-122341X
...
9
"SCREW,SPECIAL" HUS-71070410
...
10
SHAFT&GEAR STR T HUS-128755
...
11
WASHER HUS-19272016
...
13
"BRKT,STEERING" HUS-124036X
...
16
SUB= 918127501 HUS-127501
...
17
RING HUS-12000029
...
18
WASHER .T HUS-6266H
...
19
SUB= 136874 HUS-124034X
...
21
NYLINER T HUS-109816X
...
22
SCREW HUS-74180512
...
23
NUT HUS-73510500
...
24
SADDLE HUS-131343X017
...
25
WASHER .T HUS-6266H
...
26
SUB= 140181 HUS-106965X
...
27
BOLT HUS-74760512
...
31
CHOKE CONTROL HUS-132779
...
32
WASHER HUS-19131316
...
33
LOCKWASHER HUS-11050600
...
34
PLUG-DASH T HUS-8022J
...
35
SUB= 142033 HUS-131450
...
37
BOLT HEX 5/8-11 HUS-74011056
...
38
SCREW LT HUS-17490608
...
40
THRUST WASHER HUS-57079
...
41
BEARING HUS-110438X
...
42
"NUT-LOC,FLANGE LT" HUS-73901000
...
44
SPINDLE LH HUS-135227
...
45
SPINDLE RH HUS-135228
...
46
SUPPORT.SHAFT HUS-124035X
...
47
TIE ROD HUS-130467
...
48
LOCKWASHER HUS-10040500
...
49
NUT.LOCK.5/16-24 HUS-73810500
...
50
COL. SRTG. BEAR. HUS-3366R
...
51
SUB= 532130468 HUS-134068
...
52
LOCKWASHER HUS-10040500
...
53
SUB= 7810H HUS-73610600
...
54
SUB= 155108 HUS-1554J
...
55
SUB= 98000165 HUS-17431008
...
57
CLIP T HUS-2751R
...
58
SUB= 532126684 HUS-126684X
...
66
SUB= 74780612 HUS-74760612
...
67
LOCKWASHER HUS-10040400
...
68
NUT HUS-73510600
...
69
WASHER HUS-121748X
...
70
SCREW HUS-17490612
...
72
WASHER M HUS-19111216
...
73
CAP HUS-121232X
...
74
WASHER HUS-121749X
...
75
AXLE PIN HUS-132624
...
76
WASHER HUS-19131316
...
77
BOLT HUS-74760616
