Husqvarna CP1642A (1995) Tractor

Model: CP1642A (1995)

Back To Assemblies

Save Part Not Listed?
product name

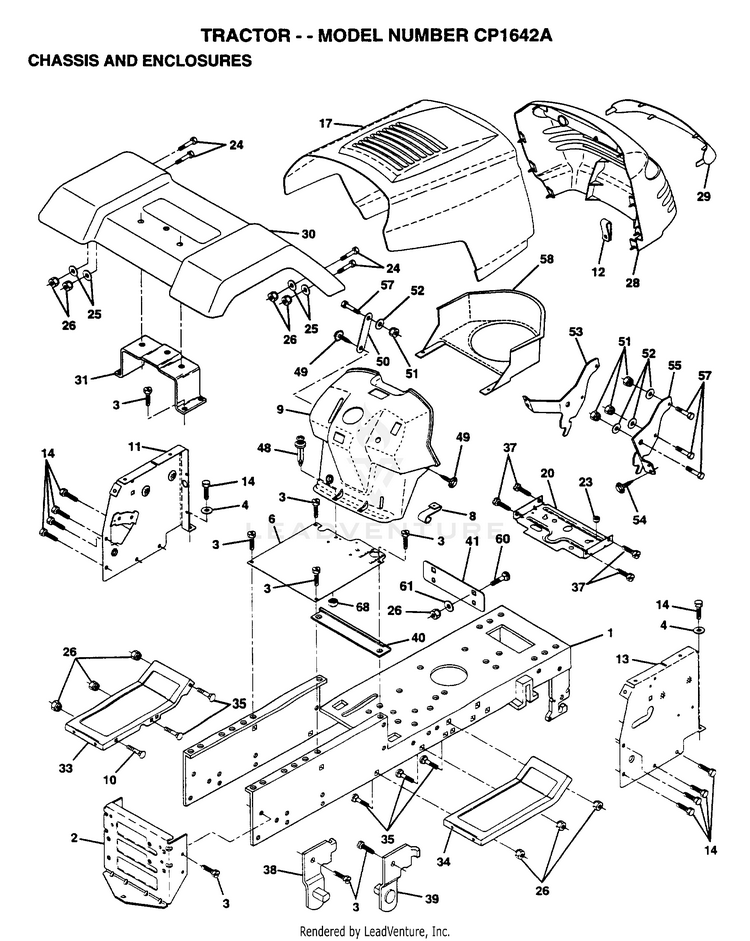

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
CLIP TINERMAN GRILLE P/L HUS-145560
...
6
SUB= 145206X431 HUS-145206
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 532142467 HUS-140622
...
10
SUB= 72110608 HUS-72140608
...
11
SUB= 146965 HUS-140815
...
13
SUB= 146959 HUS-140178
...
14
SCREW LT HUS-17490608
...
17
HOOD.STL.PRV.LA HUS-139394X520
...
20
PLATE.MTG.BTRY.TK HUS-145210
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILL.P/L.EURO. HUS-145502
...
29
LENS.P/L.EURO. HUS-145503
...
30
FENDER.PNTD HUS-140001X520
...
31
BRACKET SUPT FEND HUS-139976
...
33
FOOTREST.LH.LT/GT HUS-145244X417
...
34
FOOTREST.RH.LT/GT HUS-145243X417
...
35
BOLT HUS-72110606
...
37
SCREW HUS-17490512
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
48
RIVET.PUSH.PLATE HUS-138096
...
49
SCREW HEX CRT HUS-17490412
...
50
BRACE SUPT DASH HUS-142779
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
DUCT.AIR.B&S.18HP HUS-140547
...
60
BOLT HUS-72140606
...
61
WASHER HUS-19171416
...
68
NUT HUS-73510400
...
xx
PLUG BUTTON T HUS-5479J
...
xx
PLUG DOME HUS-134014
