product name

Husqvarna CP1642A (1995) Tractor

Model: CP1642A (1995)

Back To Assemblies

Save Part Not Listed?

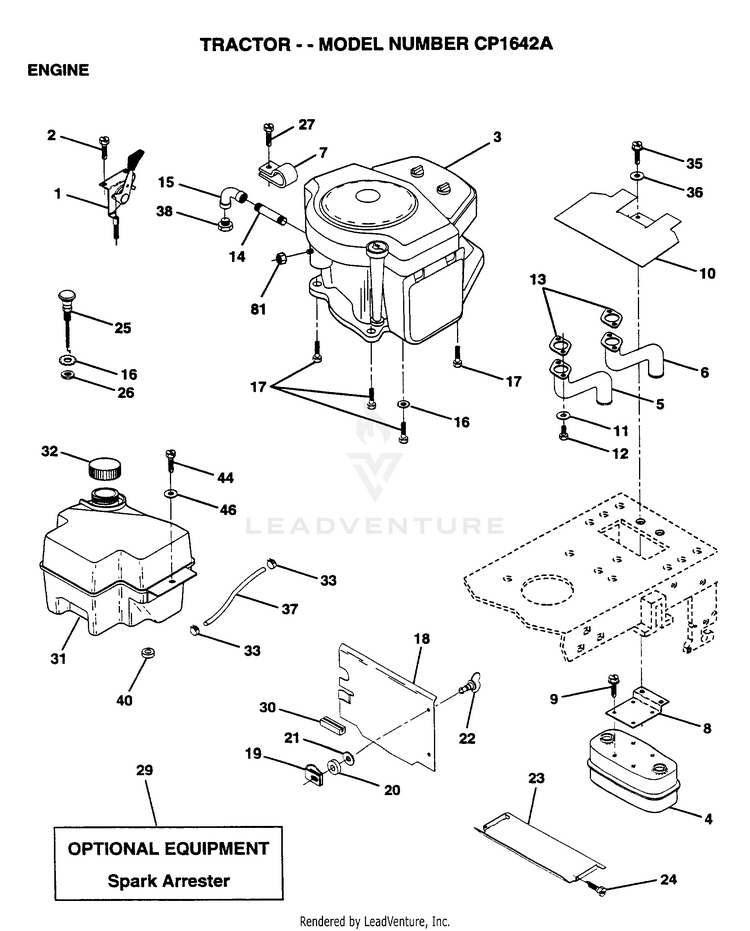

product name

ENGINE

...
...
1
CONTROL THRT 35.5 HUS-141295
...
2
SCREW LT HUS-17720410
...
3
ENGINE, B&S HUS-402707
...
4
SUB= 149723 HUS-137978
...
5
EXHAUST.B&S.18.LH HUS-144069
...
6
EXHAUST.B&S.18.RH HUS-144068
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SHIELD.HEAT. HUS-145552
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 74780414 HUS-74780412
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
18
SHIELD HEAT HUS-136718
...
19
RECEPTACLE LT HUS-105839X
...
20
RETAINER LT HUS-105838X
...
21
WASHER HUS-19091016
...
22
STUD.1/4.TURN HUS-123650X
...
23
SUB= 128953 HUS-128953X
...
24
SCREW HUS-17021008
...
25
CONTROL CHOKE HUS-145596
...
26
SUB= 7810H HUS-73610600
...
27
SCREW.10-24X1/2 HUS-17541008
...
29
SUB= 532137180 HUS-137180
...
30
SUB= 532127057 HUS-127057X
...
31
SUB= 161911 HUS-140280
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19132012
...
37
LINE FUEL HUS-137040
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
81
NUT HUS-73510400
