product name

Husqvarna CP1442A (1993) Tractor

Model: CP1442A (1993)

Back To Assemblies

Save Part Not Listed?
product name

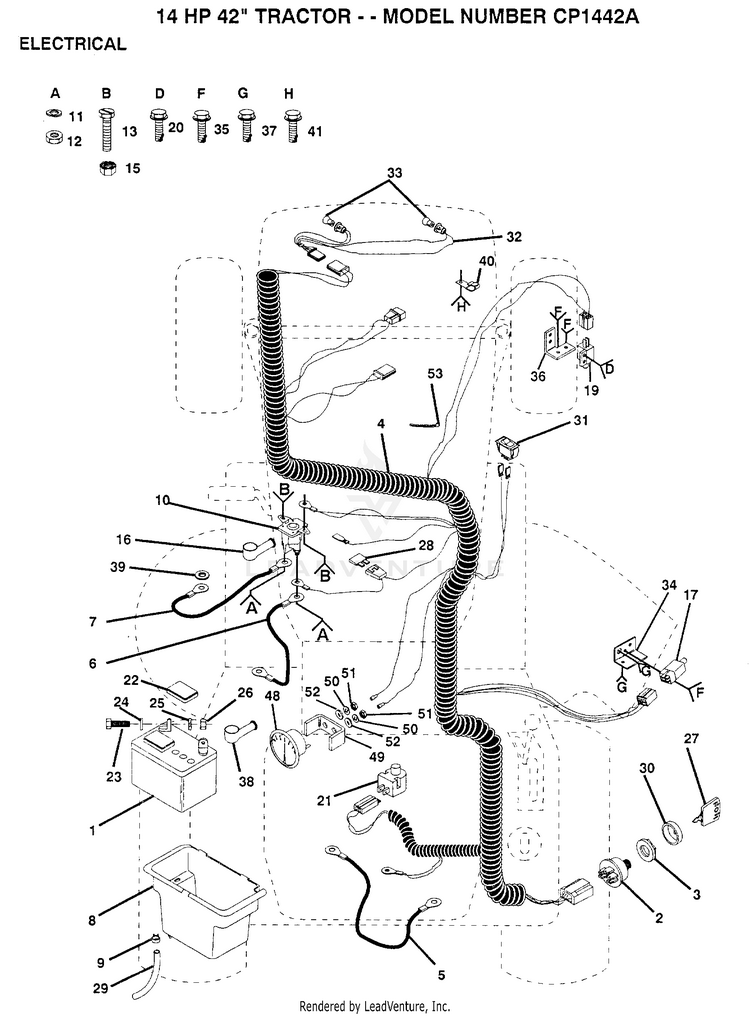

ELECTRICAL

...
...
1
SUB= 123899X HUS-121265X
...
2
SUB= 918102972X HUS-102972X
...
3
NUT IGNITION HUS-124211X
...
4
HARNESS.IGNITION HUS-140662
...
5
CABLE T HUS-4207J
...
6
SUB= 146147 HUS-132202
...
7
"CABLE T, BATTERY" HUS-4799J
...
8
BTRY CASE W/O LID HUS-133753
...
9
HOSE CLAMP T HUS-109596X
...
10
SUB= 146154 HUS-138406
...
11
SUB= 10040400 HUS-10090400
...
12
NUT HUS-73350400
...
13
BOLT HXHD FIN HUS-71110408
...
15
NUT HXKEP 1/4X20 HUS-73640400
...
16
SUB= 154336 HUS-131563
...
17
SWITCH INTERLOCKT HUS-109553X
...
19
SWITCH-INTER. GT HUS-104445X
...
20
SCREW HUS-17021008
...
21
SWITCH SEAT HUS-121305X
...
22
"CAP,BATTERY " HUS-121264X
...
23
BOLT LT HUS-74760412
...
24
WASHER HUS-19091016
...
25
LOCKWASHER HUS-10040400
...
26
SUB= 50675 HUS-73220400
...
27
KEY HUS-122147X
...
28
FUSE HYT HUS-108824X
...
29
TUBE T HUS-109238X
...
30
SUB= 141226 HUS-123620X
...
31
SWITCH LT HUS-110712X
...
32
"HARNESS,LIGHT SOC" HUS-136850
...
33
SUB= 4152J HUS-7662J
...
34
BRACKET LT HUS-108236X
...
35
SCREW HUS-17021008
...
36
SWITCH BRACKET HUS-130890
...
37
SCREW HUS-17021008
...
38
SUB= 154336 HUS-719J
...
39
LOCKWASHER HUS-11150400
...
40
CLIP T HUS-2751R
...
41
SCREW LT HUS-17490608
...
48
AMMETER T HUS-9433R
...
49
SUB= 532131708 HUS-131708
...
50
SUB= 10071000 HUS-10101000
...
51
NUT HUS-73911000
...
52
WASHER HUS-19070818
...
53
WIRE TIE HUS-7192 J
