Husqvarna CP1442A (1993) Tractor

Model: CP1442A (1993)

Back To Assemblies

Save Part Not Listed?
product name

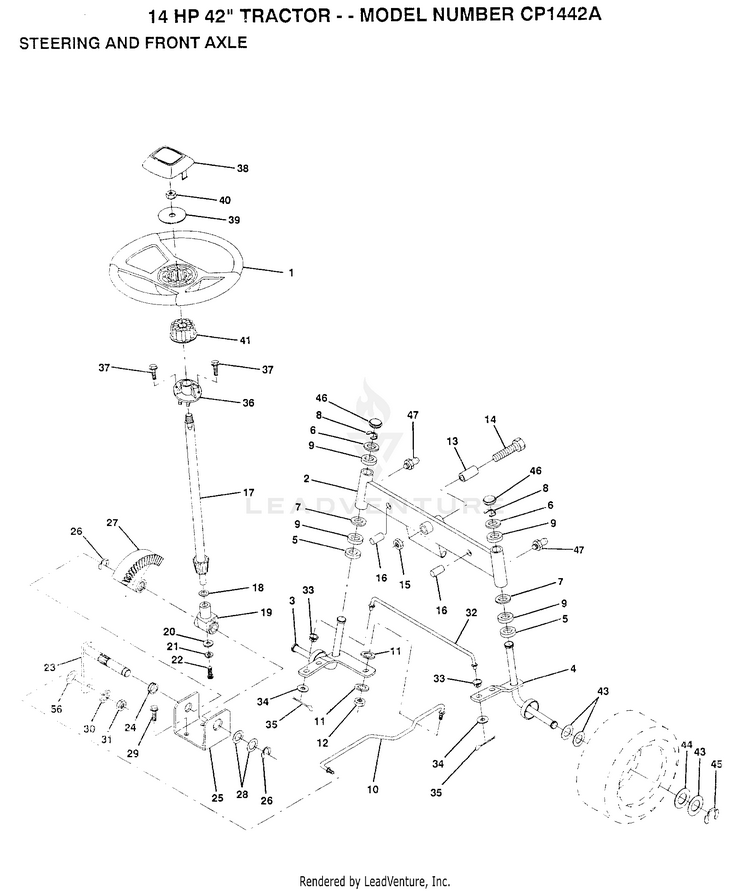

STEERING AND FRONT AXLE

...
...
1
SUB= 150547 HUS-133741
...
2
SUB= 142033 HUS-133988
...
3
SPINDLE LH HUS-135227
...
4
SPINDLE RH HUS-135228
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
9
COL. SRTG. BEAR. HUS-3366R
...
10
SUB= 532130468 HUS-130468
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
SUB= 7810H HUS-73610600
...
13
BEARING HUS-110438X
...
14
BOLT HEX 5/8-11 HUS-74011056
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
16
AXLE PIN HUS-132624
...
17
STEERING SHAFT HUS-128758
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT HUS-124035X
...
20
SUB= 532126684 HUS-126684X
...
21
LOCKWASHER HUS-10040400
...
22
"SCREW,SPECIAL" HUS-71070410
...
23
SUB= 918127501 HUS-127501
...
24
NYLINER T HUS-109816X
...
25
"BRKT,STEERING" HUS-124036X
...
26
RING HUS-12000029
...
27
GEAR SECTOR HUS-136874
...
28
WASHER .T HUS-6266H
...
29
SCREW HUS-17490612
...
30
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
31
SUB= 7810H HUS-73610600
...
32
TIE ROD HUS-130465
...
33
BUSHING.DRAGLINK HUS-126847X
...
34
WASHER HUS-19131416
...
35
COTTER PIN HUS-76020412
...
36
SUB= 155108 HUS-1554J
...
37
SUB= 98000165 HUS-17431008
...
38
ST WHL INSERT CAP HUS-133742
...
39
WASHER HUS-100712K
...
40
SUB= 73360800 HUS-73940800
...
41
ADAPTER LT HUS-100711L
...
43
WASHER HUS-121749X
...
44
WASHER HUS-121748X
...
45
RING HUS-12000029
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
56
WASHER HUS-19131210
