Husqvarna CP12TR38A (1994) Tractor

Model: CP12TR38A (1994)

Back To Assemblies

Save Part Not Listed?
product name

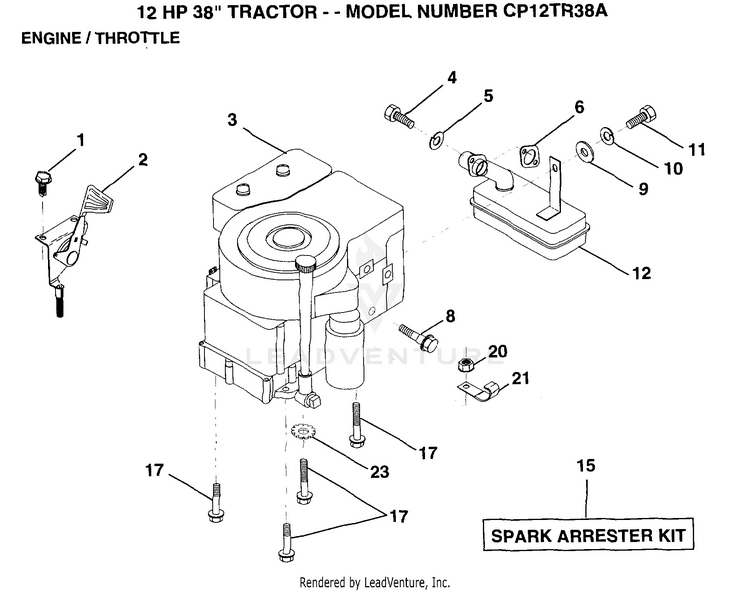

ENGINE/THROTTLE

...
...
1
SCREW.1/4-20X1/2 HUS-17060408
...
2
"CONTROL,THROTTLE" HUS-132752
...
3
ENGINE HUS-OHV12-202707B
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
8
SHOULDER BOLT ST HUS-81328
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
11
BOLT LT HUS-74760412
...
12
SUB= 156448 HUS-138032
...
15
SUB= 532137180 HUS-137180
...
17
SCREW LT HUS-17490624
...
20
NUT HUS-73510600
...
21
CLIP T HUS-2751R
...
23
LOCKWASHER HUS-11050600
