Husqvarna CP12TR38A (1994) Tractor

Model: CP12TR38A (1994)

Back To Assemblies

Save Part Not Listed?
product name

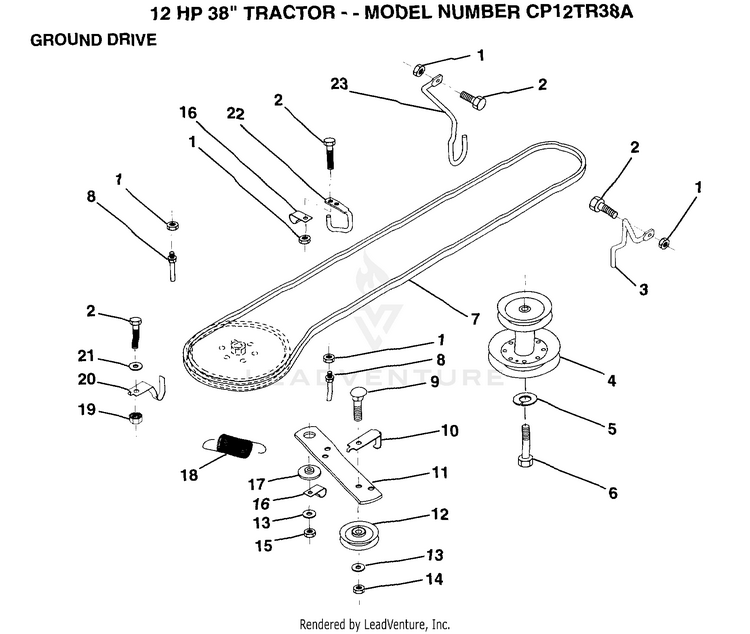

GROUND DRIVE

...
...
1
NUT HUS-73800500
...
2
BOLT HUS-74760512
...
3
KEEPER.BELT.FRT. HUS-141341
...
4
PULLEY.ENGINE.LR HUS-138029
...
5
LOCKWASHER HUS-10040700
...
6
HEX BOLT HUS-71170744
...
7
BELT HUS-124525X
...
8
"KEEPER,DRIVE BELT" HUS-123405X
...
9
BOLT HUS-72140612
...
10
"KEEP,IDLER DR BEL" HUS-123396X
...
11
ARM IDLER CLUT GD HUS-140911
...
12
PULLEY.IDLER.FLAT HUS-123674X
...
13
WASHER HUS-19131316
...
14
LOCKNUT HUS-73930600
...
15
NUT HUS-73800600
...
16
CLIP INSULATOR HUS-126472X
...
17
SPACER RETAINER HUS-122052X
...
18
SUB= 532131459 HUS-131459
...
19
NUT HUS-73510500
...
20
KEEPER.BELT.T/A HUS-139919
...
21
WASHER HUS-19111016
...
22
"KEEPER,FRA DR BEL" HUS-123404X
...
23
KEEPER.BELT.FRT.L HUS-142240
