Husqvarna CP12542LTA (1994) Tractor

Model: CP12542LTA (1994)

Back To Assemblies

Save Part Not Listed?
product name

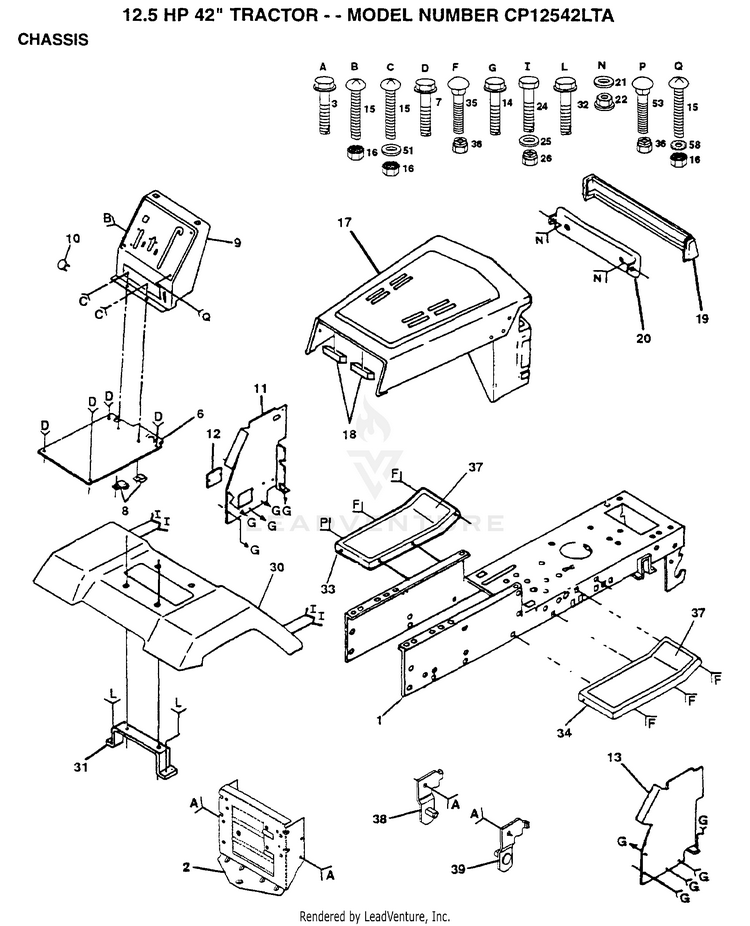

CHASSIS

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 145208X016 HUS-140290X016
...
7
SCREW HUS-17490612
...
8
CLIP T HUS-2751R
...
9
DASH SILKSCRN 1 HUS-140637X011
...
10
PLUG BUTTON T HUS-5479J
...
11
PANEL DASH LH HUS-122795X
...
12
COVER ACCESS HUS-121794X
...
13
SUB= 155934X010 HUS-124031X
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD/GRILLE.ASM. HUS-133956X520
...
18
SUB= 532126938 HUS-126938X
...
19
LENS SERVICE KIT HUS-133954
...
20
SUB= 918132257 HUS-132257
...
21
WASHER PM HUS-19091216
...
22
PAL NUT LT HUS-108067X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
30
FENDER.PNT.LT HUS-109872X520
...
31
BRKT FENDER HUS-136619
...
32
SCREW HUS-17490612
...
33
SUB= 145244X417 HUS-105465X417
...
34
SUB= 145243X417 HUS-105464X417
...
35
BOLT HUS-72110606
...
36
NUT HUS-73800600
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
51
WASHER HUS-19131216
...
53
SUB= 72110608 HUS-72140608
...
58
LOCKWASHER HUS-11050600
