product name

Husqvarna CP12542B (1993) Tractor

Model: CP12542B (1993)

Save
 Part Not Listed?Part Not Listed?
product name

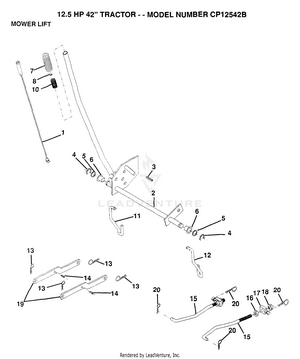

MOWER LIFT

...
...
1
WIRE ASM PLN-136973
...
2
SUB= 137111 PLN-137311
...
3
PIN-GROOVE LT PLN-105767X
...
4
SUB= 2225J PLN-12000002
...
5
WASHER PLN-19211621
...
6
NYLON BEARING PLN-120183X
...
7
GRIP PLN-109413X
...
8
SUB= 125925X PLN-124526X
...
10
SUB= 532122512 PLN-122512X
...
11
LINK LIFT LH PLN-134619
...
12
LIFT LINK RH PLN-135388
...
13
SUB= 85902 PLN-4939M
...
14
"PIN,SPRING" PLN-135563
...
15
LINK.FRONT PLN-127218
...
16
NUT PLN-73350800
...
17
TRUNION PLN-130171
...
18
NUT.LK.W/WSH.1/2. PLN-73800800
...
19
SUB= 130833 PLN-130832
...
20
RETAINER.SPRING PLN-3146R

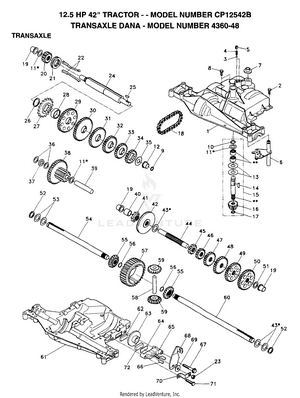

TRANSAXLE

...
...
1
HOUSING UPPER PLN-5305
...
2
SCREW PLN-1919
...
3
BALL, DETENT PLN-5112
...
4
SPRING, DETENT PLN-3626
...
5
SCREW, SET PLN-3623
...
6
SHIFTER ASSEMBLY PLN-4731
...
7
BOOT, SHIFTER PLN-5024
...
8
SCREW TAPPING WITH SEALER PLN-5131
...
9
SQUARE RING PLN-5279
...
10
RING RETAINING PLN-1099
...
11
ASSY, KIT, SHIM .625 SHAFT PLN-4689
...
12
BEARING FL PLN-5278
...
13
WASHER, PLAIN .632 X 1.38 X .046 PLN-3876
...
14
KEY WOODRUFF #9 PLN-1374
...
15
ASSEMBLY, KIT, INPUT SHAFT PLN-4551
...
16
PINION, BEVEL, 14 TEETH PLN-3590
...
17
RING, RETAINING PLN-3624
...
18
CHAIN, 24 PITCHES PLN-3625
...
19
BEARING, FLANGE PLN-1542
...
20
GEAR PLN-5280
...
21
COLLAR, CLUTCH PLN-5303
...
22
ASSEMBLY, KIT, CLUTCH KEYS PLN-4758
...
23
LOCKNUT 5/16-24 PLN-3847
...
24
SHAFT INTERMEDIATE PLN-5281
...
25
KEY, WOODRUFF, #61 PLN-1375
...
26
RING, RETAINING PLN-3627
...
27
SPROCKET, 18 TEETH PLN-3830
...
28
SPACER PLN-3841
...
29
GEAR, SPUR, 37 TEETH PLN-3786
...
30
GEAR, SPUR, 35 TEETH PLN-3785
...
31
GEAR, SPUR, 30 TEETH PLN-3867
...
32
GEAR, SPUR, 25 TEETH PLN-3783
...
33
GEAR, SPUR, 22 TEETH PLN-3869
...
34
GEAR, SPUR, 19 TEETH PLN-5202
...
35
WASHER, PLAIN .640 X 1.37 X .061 PLN-3628
...
36
WASHER, PLAIN .632 X 1.00 X .026 PLN-1423
...
37
SPACER .630 X 1.00 X .169 PLN-3422
...
38
ASSY GEAR COMB 12&35 TEETH PLN-4286
...
39
SHAFT, IDLER PLN-3967
...
40
SPACER .635 X .875 X .755 PLN-3901
...
41
SPROCKET, 9 TEETH PLN-3645
...
42
GEAR, BEVEL, 42 TEETH PLN-3853
...
43
ASSY, KIT, SHIM .750 SHAFT PLN-4691
...
44
SHAFT, DRIVE PLN-3882
...
45
GEAR, SPUR, 12 TEETH PLN-3646
...
46
GEAR SPUR, 15 TEETH PLN-3707
...
47
GEAR, SPUR, 20 TEETH PLN-3866
...
48
GEAR, SPUR, 25 TEETH PLN-3719
...
49
GEAR, SPUR, 28 TEETH PLN-3868
...
50
GEAR, SPUR, 31 TEETH PLN-3683
...
51
WASHER, PLAIN .632 X 1.00 X .060 PLN-1145
...
52
WASHER, NEOPRENE PLN-5130
...
53
WASHER, PLAIN, 1.00 X .505 X .020 PLN-3194
...
54
AXLE LEFT HAND PLN-3880
...
55
GEAR, MITER, 15 TEETH PLN-3780
...
56
RING, RETAINING PLN-3656
...
57
GEAR, SPUR, 32 TEETH PLN-3839
...
58
SHAFT, CROSS PLN-3919
...
59
GEAR, MITER, 15 TEETH PLN-3781
...
60
AXLE, R.H. PLN-3881
...
61
HOUSING LOWER PLN-5304
...
62
PUCK, FRICTION PLN-3920
...
63
DISC, BRAKE PLN-3276
...
64
SPACER PLN-3758
...
65
JAW, BRAKE PLN-3916
...
66
PIN, DOWEL PLN-3843
...
67
SCREW, SELF-TAPPING PLN-5120
...
68
LEVER ACTUATING PLN-5285
...
69
WASHER, PLAIN .321 X 1.00 X .055 PLN-3760
...
70
BRACKET, ANTI-ROTATION PLN-3917
...
71
SCREW TAPPING PLN-3724
...
72
PUCK, FRICTION PLN-3907
...
73
GREASE PLN-4300
...
...
...
