product name

Husqvarna CP1238A (1993) Tractor

Model: CP1238A (1993)

Back To Assemblies

Save Part Not Listed?
product name

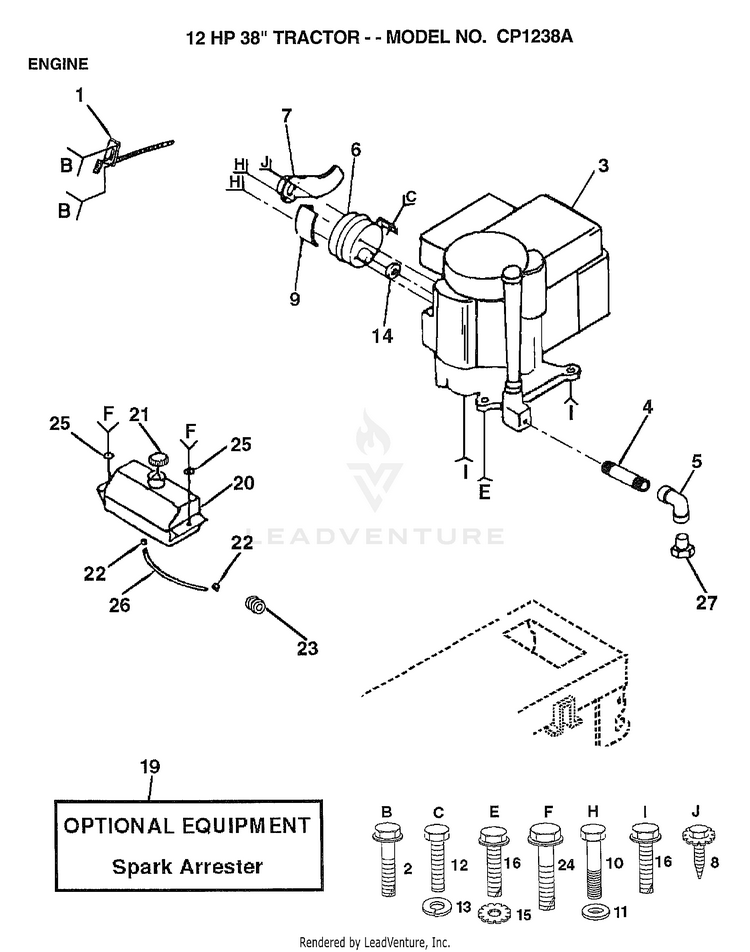

12HP 38" TRACTOR-ENGINE

...
...
1
THROTTLE CONTROL HUS-132771
...
2
SCREW LT HUS-17720410
...
4
PIPE NIPPLE HUS-13280324
...
5
ELBOW HUS-13200300
...
6
MUFFLER LTV HUS-101273M
...
7
DEFLECTOR MUFFLER HUS-108767X
...
8
SUB= 17030814 HUS-17030808
...
9
SHIELD HEAT LTV HUS-101159L
...
10
"BOLT,HEX" HUS-74780556
...
11
WASHER T HUS-19111012
...
12
BOLT HUS-74780408
...
13
LOCKWASHER HUS-10040400
...
14
SUB= 272293 HUS-125593X
...
15
LOCKWASHER HUS-11050600
...
16
SCREW HUS-17490620
...
19
SUB= 532137180 HUS-137180
...
20
TANK.FUEL.LT. HUS-109202X
...
21
SUB= 158990 HUS-123549X
...
22
HOSE CLAMP HUS-123487X
...
23
SUB= 532124028 HUS-124028X
...
24
SCREW HEX CRT HUS-17490412
...
25
WASHER HUS-19091416
...
26
FUEL LINE T HUS-8548R
