Husqvarna CP1238A (1993) Tractor

Model: CP1238A (1993)

Back To Assemblies

Save Part Not Listed?
product name

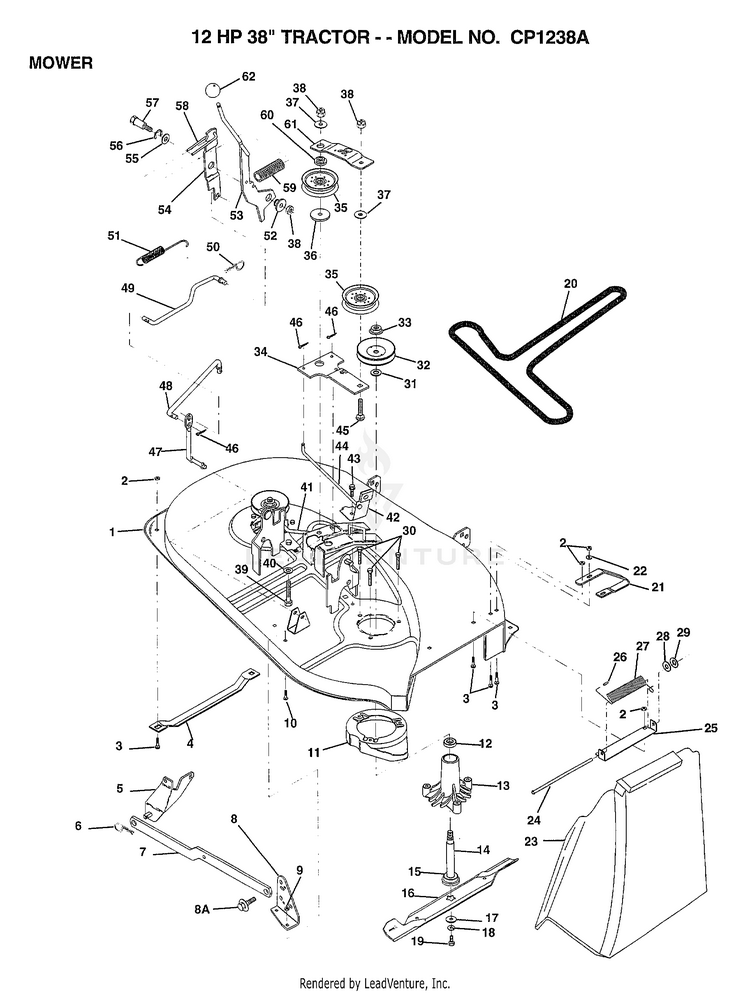

12HP 38" TRACTOR-MOWER

...
...
1
SUB= 145775 HUS-138026
...
2
SUB= 73690500 HUS-73680500
...
3
BOLT HUS-72140506
...
4
RUNNER-LH M HUS-7631J
...
5
BRKT ASM SWAY BAR HUS-138017
...
6
SUB= 85902 HUS-4939M
...
7
SUB= 130833 HUS-130832
...
8
BRKT DECK SW BAR HUS-138440
...
8A
BOLT SHD 5/16-18 HUS-132827
...
9
NUT HUS-73800500
...
10
BOLT HUS-72140506
...
11
SUB= 140329 HUS-136929
...
12
BEARING HUS-110485X
...
13
HSG ASM MANDREL HUS-128774
...
14
SUB= 137646 HUS-137645
...
15
BEARING.BALL HUS-129895
...
16
"BLADE.38"" HIPERF" HUS-138497
...
17
WASHER BLADE HUS-129962
...
18
SUB= 10040600 HUS-10030600
...
19
BLADE BOLT HUS-850857
...
20
BELT-V.88.12.MW HUS-131290
...
21
RUNNER RH HUS-128772
...
22
WASHER M HUS-19111216
...
23
DEFLECTOR-SHLD T HUS-106736X
...
24
ROD-HINGE T HUS-106735X
...
25
BRKT DEFLECTOR HUS-137607
...
26
CAP-SLEEVE LT HUS-105304X
...
27
SPRING TORSION HUS-123713X
...
28
WASHER HUS-19111016
...
29
NUT PUSH M HUS-110452X
...
30
BOLT.5/16-18X1.25 HUS-17580520
...
31
WASHER HUS-129963
...
32
SUB= 153532 HUS-129206
...
33
SUB= 139729 HUS-137266
...
34
IDLER ARM ASSY HUS-133840
...
35
FLAT IDLER PULLEY HUS-131494
...
36
SPACER RETAINER HUS-122052X
...
37
WASHER GT HUS-19131612
...
38
SUB= 73690600 HUS-73680600
...
39
BOLT HUS-74600636
...
40
WASHER GT HUS-19131612
...
41
BRAKE ROD LH HUS-131289
...
42
BRAKE ASM HUS-130840
...
43
SCREW HUS-17490512
...
44
BRAKE ROD RH HUS-131288
...
45
BOLT HUS-72110614
...
46
SUB= 3145 HUS-76020312
...
47
PIVOT ROD HUS-133551
...
48
CLUTCH ROD SECOND HUS-133504
...
49
"ROD, CLUTCH PRIM" HUS-134666
...
50
RETAINER M HUS-4497H
...
51
RETURN SPRING HUS-131870
...
52
BUSHING HUS-127498
...
53
CLUTCH ARM PRI AS HUS-133573
...
54
CLUTCH ARM SECOND HUS-127847
...
55
WASHER HUS-121748X
...
56
RING HUS-12000029
...
57
SHOULDER BOLT HUS-128903
...
58
SPRING KEEPER HUS-127845
...
59
SUB= 918128759 HUS-128759
...
60
RETAINER SPACER HUS-133502
...
61
IDLER ARM STIFF HUS-133503
...
62
KNOB T(3/8 HOLE) HUS-106932X
...
xx
SUB= 142820 HUS-138360
...
xx
MANDREL ASM HUS-130794
