Husqvarna CP1036B (1993) Tractor

Model: CP1036B (1993)

Save Part Not Listed?
product name

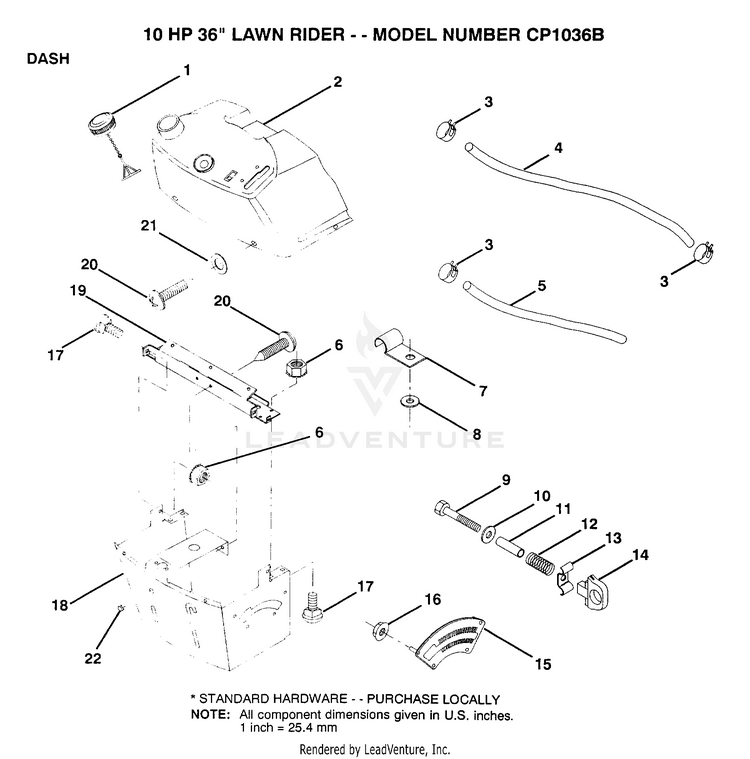

DASH

...
...
1
SUB= 141523 HUS-122015X
...
2
SUB= 138393 HUS-130913
...
3
HOSE CLAMP HUS-123487X
...
4
SUB= 295J HUS-8544R
...
5
FUEL LINE T HUS-8548R
...
6
NUT HUS-73510400
...
7
CLIP T HUS-2751R
...
8
WASHER PM HUS-19091216
...
9
BOLT HUS-74760428
...
10
WASHER PM HUS-19091216
...
11
SPACER SPLIT HUS-121249X
...
12
SPRING M HUS-3720R
...
13
"KNOB,HGT RETAINER" HUS-126450X
...
14
KNOB HUS-126115X
...
15
ADJUSTER QUAD HUS-122023X
...
16
NUT HUS-124346X
...
17
BOLT HUS-72110404
...
18
SUPT ASSY DASH HUS-130745
...
19
CROSS BRACE HUS-134744
...
20
SUB= 818000408 HUS-18000408
...
21
WASHER HUS-19090816
...
22
PLUG DOME HUS-134014

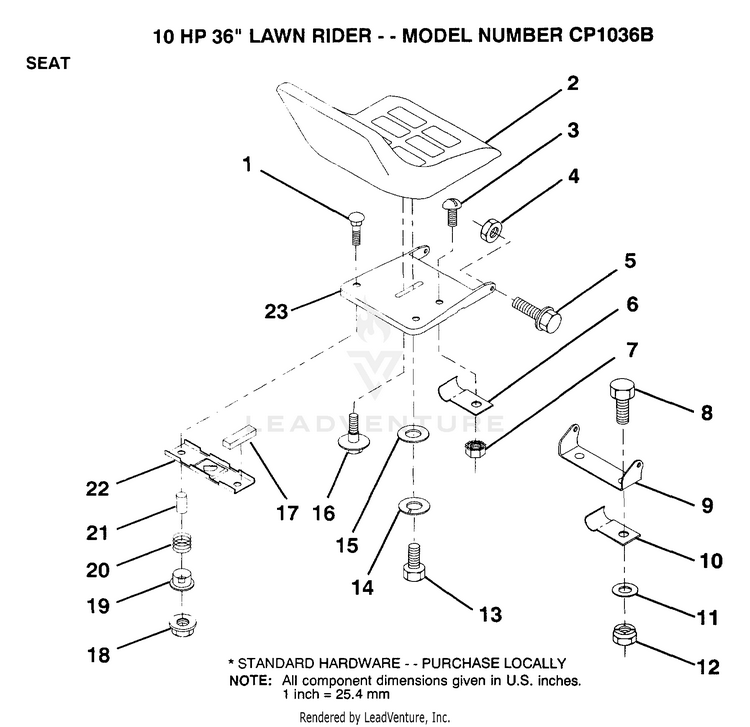

SEAT

...
...
1
SUB= 872050411 HUS-72050411
...
2
SUB= 140119 HUS-134647
...
3
SUB= 71031008 HUS-74641008
...
4
SUB= 73690500 HUS-73680500
...
5
SUB= 139888 HUS-105529X
...
6
CLIP T HUS-4171R
...
7
"NUT,KEPS" HUS-73951000
...
8
SUB= 74780612 HUS-74760612
...
9
SUB= 140551 HUS-126656X
...
10
"CLIP,INSULATOR" HUS-126471X
...
11
WASHER HUS-19131210
...
12
SUB= 73690600 HUS-73680600
...
13
BOLT HUS-74780814
...
14
LOCKWASHER HUS-10040800
...
15
WASHER HUS-19171912
...
16
"BOLT,SHOULDER" HUS-127018X
...
17
STRIP FORM HUS-121251X
...
18
SUB= 73900400 HUS-123976X
...
19
BUSHING HUS-121248X
...
20
SPRING HUS-121250X
...
21
SPACER SPLIT HUS-121249X
...
22
BRKT SWITCH HUS-121246X
...
23
SUB= 155925 HUS-131451
