Husqvarna CP1036A (1992) Tractor

Model: CP1036A (1992)

Save
 Don't See Your Part Listed?
product name

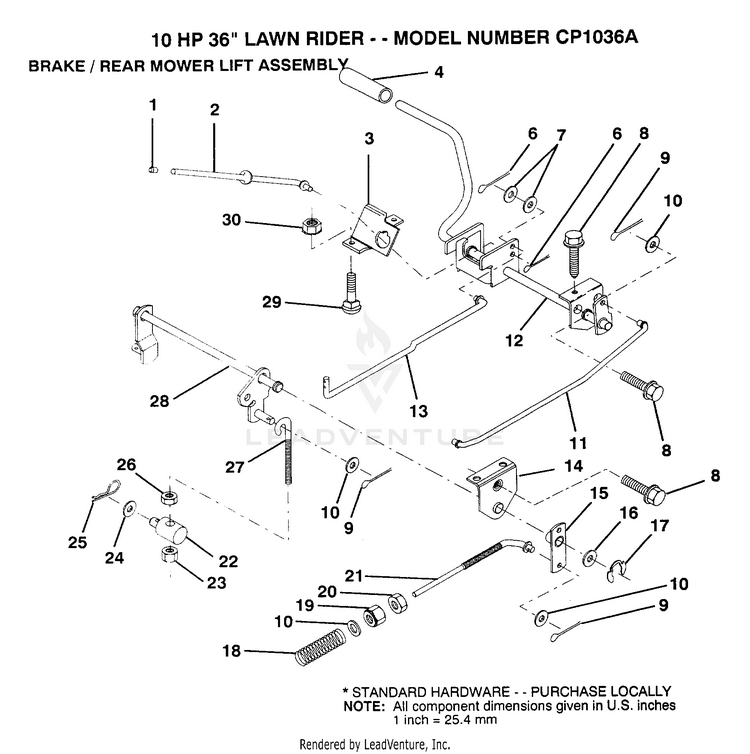

BRAKE/REAR MOWER

...
...
1
PLUNGER CAP T PLN-71673
...
2
"ROD,PARK BRAKE" PLN-123436X
...
3
"BRKT,PARK BRAKE" PLN-123437X
...
4
FOOT PEDAL COVER PLN-8156H
...
6
SUB= 3145 PLN-76020312
...
7
WASHER PLN-19131016
...
8
SCREW LT PLN-17490508
...
9
COTTER PIN PLN-76020412
...
10
WASHER PLN-19131316
...
11
SUB= 136225 PLN-131656
...
12
SUB= 139933 PLN-133483
...
13
"ROD,CLUTCH" PLN-123394X
...
14
"BRKT,LIFT SHAFT" PLN-121978X
...
15
PVT BRAKE ARM ASM PLN-133332
...
16
WASHER T PLN-19251816
...
17
KLIP RING PLN-12000034
...
18
SPRING ROD LT PLN-106888X
...
19
SUB= 73690600 PLN-73680600
...
20
NUT PLN-73350600
...
21
SUB= 532131460 PLN-131460
...
22
SUB= 144585 PLN-127378
...
23
SUB= 73690600 PLN-73680600
...
24
WASHER PLN-19132012
...
25
SPRING.RETAINER PLN-4921H
...
26
LOCKNUT PLN-73930600
...
27
"LINK, MOWER REAR" PLN-127369
...
28
SUB= 140776 PLN-127358
...
29
SUB= 72270506 PLN-72110506
...
30
NUT PLN-73510500

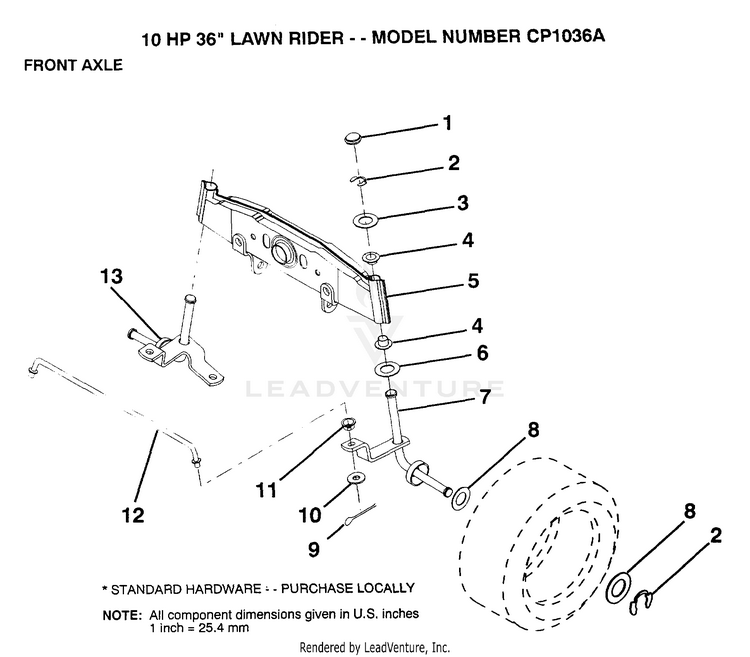

FRONT AXLE

...
...
1
CAP PLN-121232X
...
2
RING PLN-12000029
...
3
WASHER PLN-121748X
...
4
NYLINER PLN-121922X
...
5
AXLE FRONT PLN-121914X
...
6
WASHER .T PLN-6266H
...
7
SPINDLE RH PLN-121919X
...
8
WASHER PLN-121749X
...
9
COTTER PIN PLN-76020412
...
10
WASHER PLN-19131316
...
11
BUSHING.DRAGLINK PLN-126847X
...
12
ROD TIE PLN-121924X
...
13
SPINDLE LH PLN-121916X

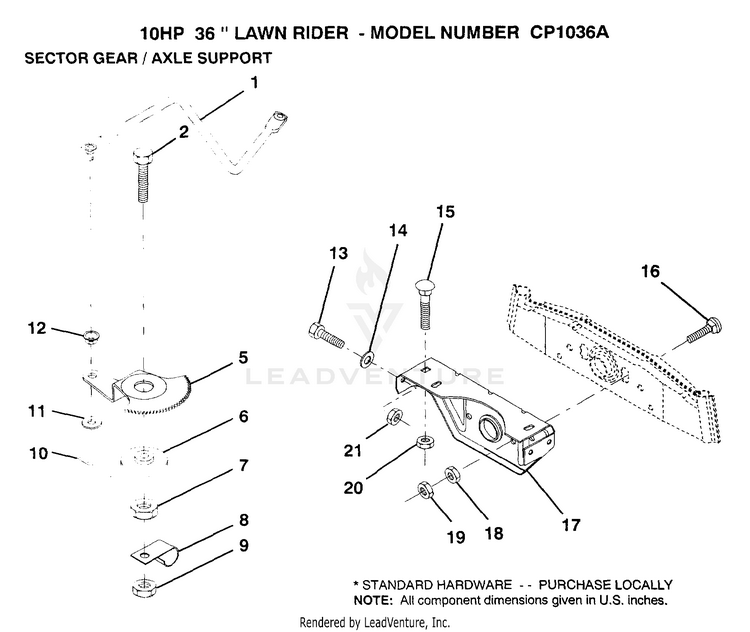

SECTOR/AXLE SUPPORT

...
...
1
DRAG LINK PLN-132566
...
2
"BOLT,HEX" PLN-74780828
...
5
GEAR SECTOR PLN-121926X
...
6
BUSHING PLN-121927X
...
7
NUT PLN-73030800
...
8
CLIP INSULATOR PLN-126472X
...
9
NUT LTV PLN-73680800
...
10
COTTER PIN PLN-76020412
...
11
WASHER PLN-19131316
...
12
BUSHING.DRAGLINK PLN-126847X
...
13
BOLT PLN-74760512
...
14
WASHER PLN-19111416
...
15
BOLT PLN-72110606
...
16
BOLT PLN-72140622
...
17
"SUPT,FRT AXLE" PLN-121912X
...
18
NUT.HEX.3/8-16UNC PLN-73220600
...
19
LOCKNUT PLN-73930600
...
20
SUB= 73690600 PLN-73680600
...
21
SUB= 73690500 PLN-73680500

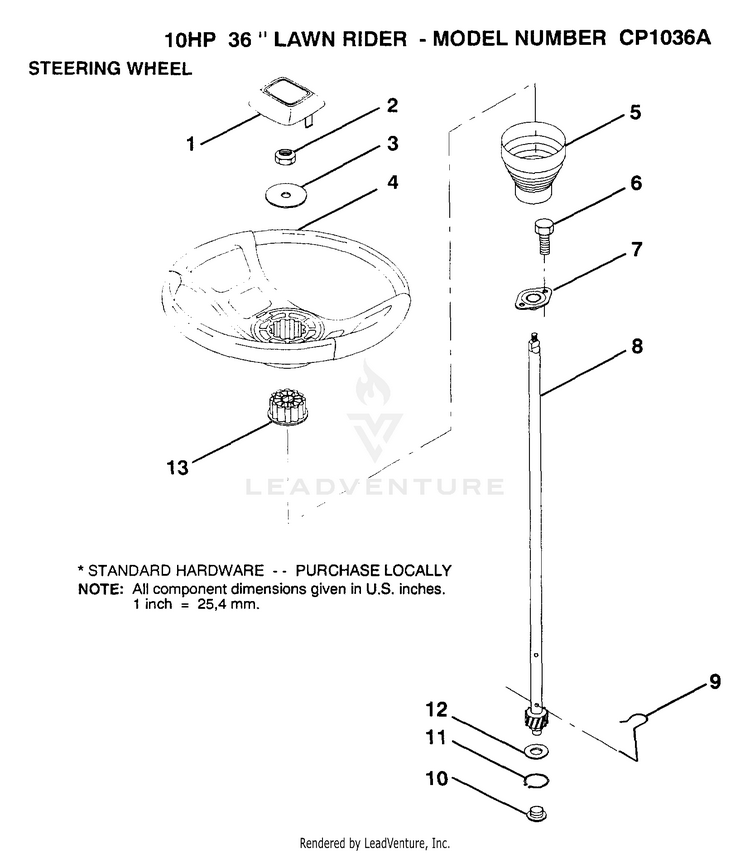

STEERING

...
...
1
ST WHL INSERT CAP PLN-133742
...
2
GRIPCO NUT PLN-7810H
...
3
WASHER T PLN-19133808
...
4
SUB= 150547 PLN-133741
...
5
SLEEVE STEERING PLN-121897X
...
6
SUB= 98000165 PLN-17431008
...
7
SUB= 918102803X PLN-102803X
...
8
SUB= 148966 PLN-123651X
...
9
STEERING CLIP PLN-124210X
...
10
BUSHING STEER LWR PLN-123438X
...
11
RING PLN-12000045
...
12
WASHER LT PLN-19211616
...
13
ADAPTER-WHEEL LT PLN-104820X
...
...
...
...
