Husqvarna COGT22H48A (2004) Tractor

Model: COGT22H48A (2004)

Back To Assemblies

Save Part Not Listed?
product name

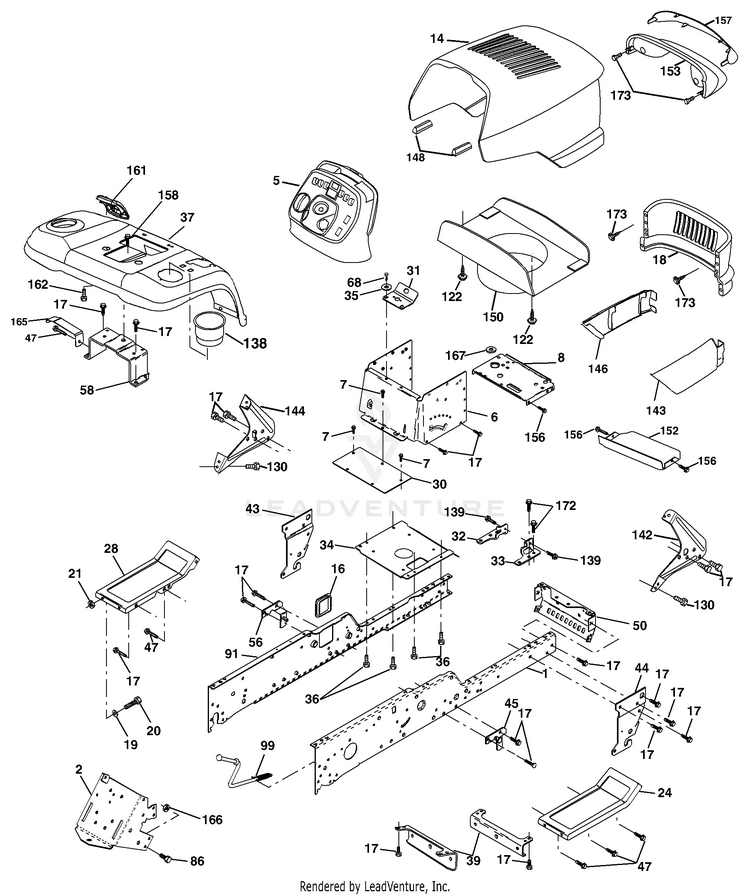

Chassis And Enclosures

...
...
1
Rail, Frame RH HUS-180375
...
2
Drawbar, Gt HUS-175282
...
5
Dash HUS-187934X428
...
6
Dash, Lower Vgt One Piece HUS-157882
...
7
Screw, Thd Cut 1/4-20 x 1/2 HUS-17720408
...
8
Support, Battery HUS-184668
...
14
Hood Asm HUS-175260X428
...
16
Cover, Access HUS-121794X
...
17
Screw 3/8-16 x .75 HUS-17000612
...
18
Grille HUS-175289X428
...
19
Washer 13/32x13/16 x 12 Ga. HUS-19131312
...
20
Bolt, Fin Hex 3/8-16 x 1 HUS-74780616
...
21
Nut Crownlock 3/8-16 unc HUS-73800600
...
24
Footrest, RH HUS-179717X428
...
28
Footrest, LH HUS-179716X428
...
30
Saddle, Hydro HUS-145052
...
31
Brace, Supt 1-pc VGT HUS-161419
...
32
Bracket, Pivot Chassis Lh HUS-161327
...
33
Bracket, Pivot Chassis Rh HUS-161326
...
34
Plate Asm Engine HUS-177018
...
35
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
36
Screw 5/16-18 x 3/4 HUS-17060512
...
37
Fender Pnt HUS-178510X428
...
39
Bracket, Axle Front HUS-175278
...
43
Bracket, Spnsn Front Lh HUS-136939
...
44
Bracket, Spnsn Front Rh HUS-136940
...
45
Bracket Asm., Susp Chas.Rh HUS-176018
...
47
Screw Thdrol. 3/8-16 x 1/2 HUS-17490608
...
50
Bracket, Chassis Front HUS-175476
...
56
Bracket Asm., Susp Chas. Lh HUS-176016
...
58
Bracket Asm., Fender HUS-183569
...
68
Screw Thdrol. 5/16-18 x 1/2 HUS-17490508
...
86
Bolt Fin Hex 7/16-14 unc x 1 HUS-74780716
...
91
Rail, Frame Lh HUS-180374
...
99
Rod By Pass HUS-177143
...
122
Screw Hex Wshd 8-18 x 7/8 HUS-161464
...
130
Screw Hwhd Hi-Lo #13-16 x 3/4 HUS-171875
...
138
Cup Holder HUS-179125X428
...
139
Bolt Shoulder 5/16-18 TT HUS-171873
...
142
Bracket Dash Rh HUS-161897
...
143
Skirt Grille Rh HUS-169847X428
...
144
Bracket Dash Lh HUS-161900
...
146
Skirt Grille Lh HUS-169848X428
...
148
Extrusion Bumpers HUS-164655
...
150
Duct Heat Hood HUS-175352
...
152
Shield Browning HUS-177956
...
153
Lens Asm. (Includes Key Nos. 153 and 157) HUS-179761
...
156
Screw 5/16-18 x 3/4 HUS-17000512
...
157
Lens Bar HUS-161840
...
158
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
161
Console Fuel Window HUS-179612X428
...
162
Screw Hex 1/4-1/2 unc HUS-142432
...
165
Bracket Support Tank HUS-183554
...
166
Nut 7/16-14 HUS-73680700
...
167
Bushing-Snap Nylon HUS-184672
...
172
Screw 3/8-16 x .875 HUS-17120614
...
173
Screw 10 x 3/4 Single Lead-Hex HUS-191611
