Husqvarna COGT22H48A (2004) Tractor

Model: COGT22H48A (2004)

Back To Assemblies

Save Part Not Listed?
product name

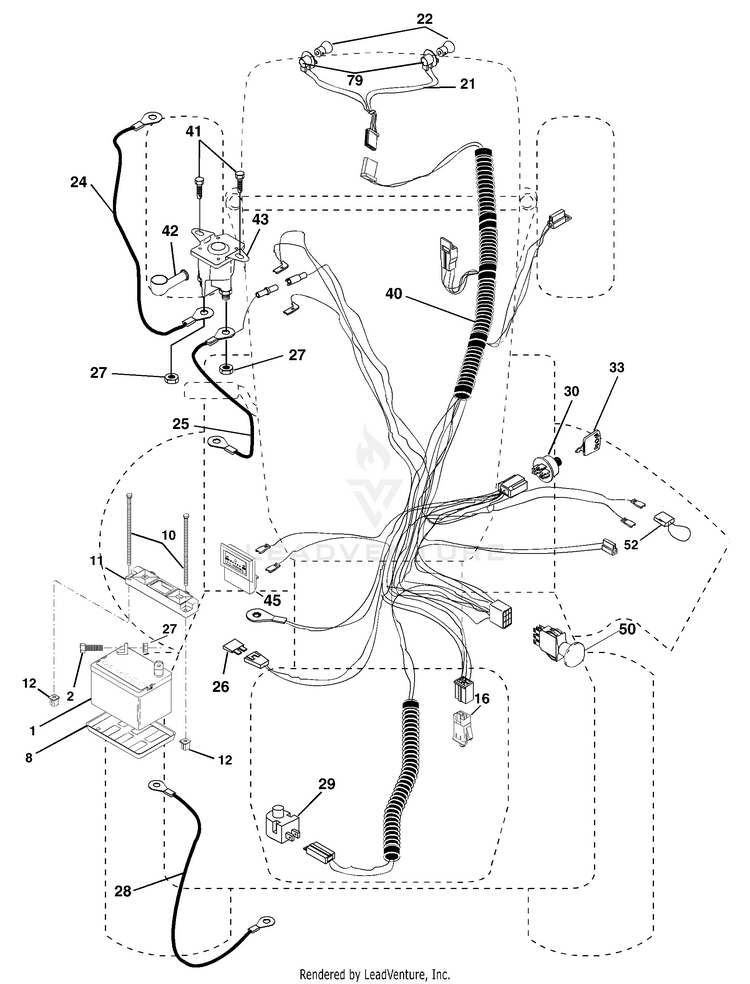

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt 1/4-20 x 7.5 Zinc HUS-145211
...
11
Hold down Battery Dash Mount HUS-150109
...
12
Nut Push Nylon 1/4" HUS-145769
...
16
Switch Interlock HUS-176138
...
21
Harness Socket Light W/4152J HUS-175688
...
22
Bulb Light HUS-4152J
...
24
Cable Battery HUS-185464
...
25
Cable Battery HUS-146149
...
26
Fuse HUS-108824X
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable, Ground HUS-170697
...
29
Switch, Plunger HUS-121305X
...
30
Switch, Ign HUS-175566
...
33
Key, Ignition HUS-140401
...
40
Harness Ign. HUS-188032
...
41
Screw Thd Cut 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal HUS-131563
...
43
Solenoid HUS-178861
...
45
Ammeter HUS-122822X
...
50
Switch, PTO HUS-174653
...
52
Protection Wire Loop HUS-141940
...
79
Socket Asm. Bulb HUS-175242
