Husqvarna CO24H48STA (2004) Tractor

Model: CO24H48STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

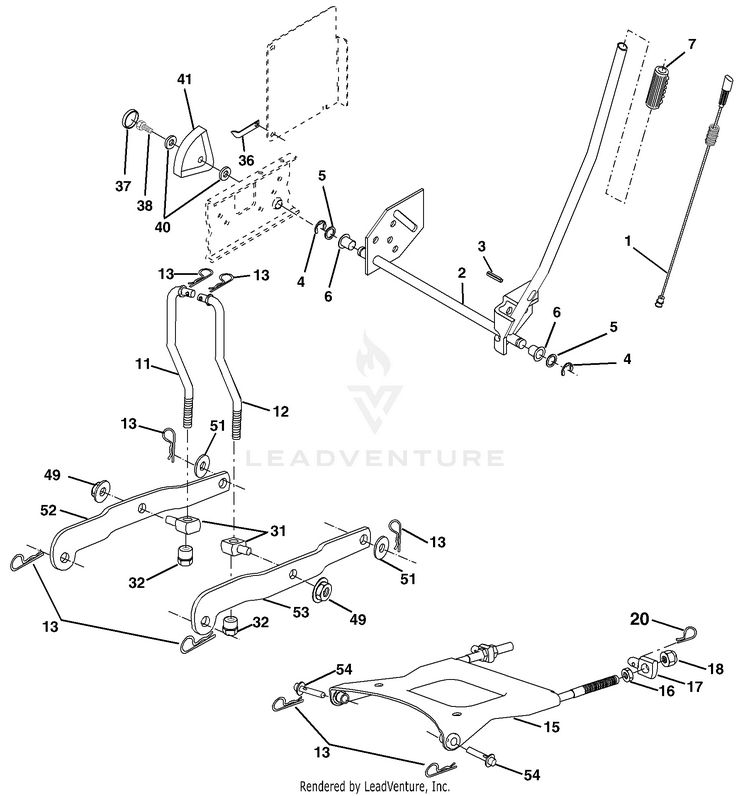

Lift Assembly

...
...
1
Plunger Assembly HUS-179504
...
2
Shaft Assembly, Lift HUS-159476
...
3
Pin, Groove HUS-188822
...
4
E-Ring HUS-12000002
...
5
Washer 21/32 x 1 x 21 Ga. HUS-19211621
...
6
Bearing, Nylon HUS-120183X
...
7
Grip, Handle, Fluted HUS-175830
...
11
Link, Lift, L.H. HUS-175370
...
12
Link, Lift, R.H. HUS-175371
...
13
Retainer Spring HUS-4939M
...
15
Plate Asm Suspension Front HUS-175562
...
16
Nut Hex Jam 1/2-13 unc HUS-73350800
...
17
Trunnion Front Susp. HUS-175689
...
18
Nut Lock w/Wsh 1/2-13 unc HUS-73800800
...
20
Retainer Spring HUS-163552
...
31
Trunion Sups. Arm. HUS-176205
...
32
Nut Lift Link 7/16-20 HUS-175994
...
36
Pointer Height Indicator HUS-155097
...
37
Plug Hole HUS-123935X
...
38
Screw 5/16-18 x 1 HUS-17060516
...
40
Washer 11/32 x 1-1/2 x 10 Ga. HUS-19112410
...
41
Indicator Height Stlt HUS-155098
...
49
Nut Hex/Large Lock HUS-145212
...
51
Washer 17/32 x 7/8 x 16 Ga. HUS-19171416
...
52
Arm Suspension Rear LH HUS-175378
...
53
Arm Suspension Rear RH HUS-175802
...
54
Pin Flange HUS-175560
